TP150 Support Arm System

Home

Operator Panel And Arm Systems

Arm Systems

TP150 Support Arm System

Material

AL 4600 Series

Surface Finishing

RAL7035

On Request

Custom sizes
Custom colour

Advantages

A single system with three combinable cross-sections
Sleek design with full functionality
High stability for all load levels up to 150 kg
Versatile combination options
Cost-effective and lightweight vertical axis adjustments
Simple and consistent adjustment mechanism
Compatible components suitable for almost any application
Adjustable range of rotation limits
Easy installation
Support arm sections can be easily cut to the desired length
Thread-free mounting with selftapping screws

Configurationtool

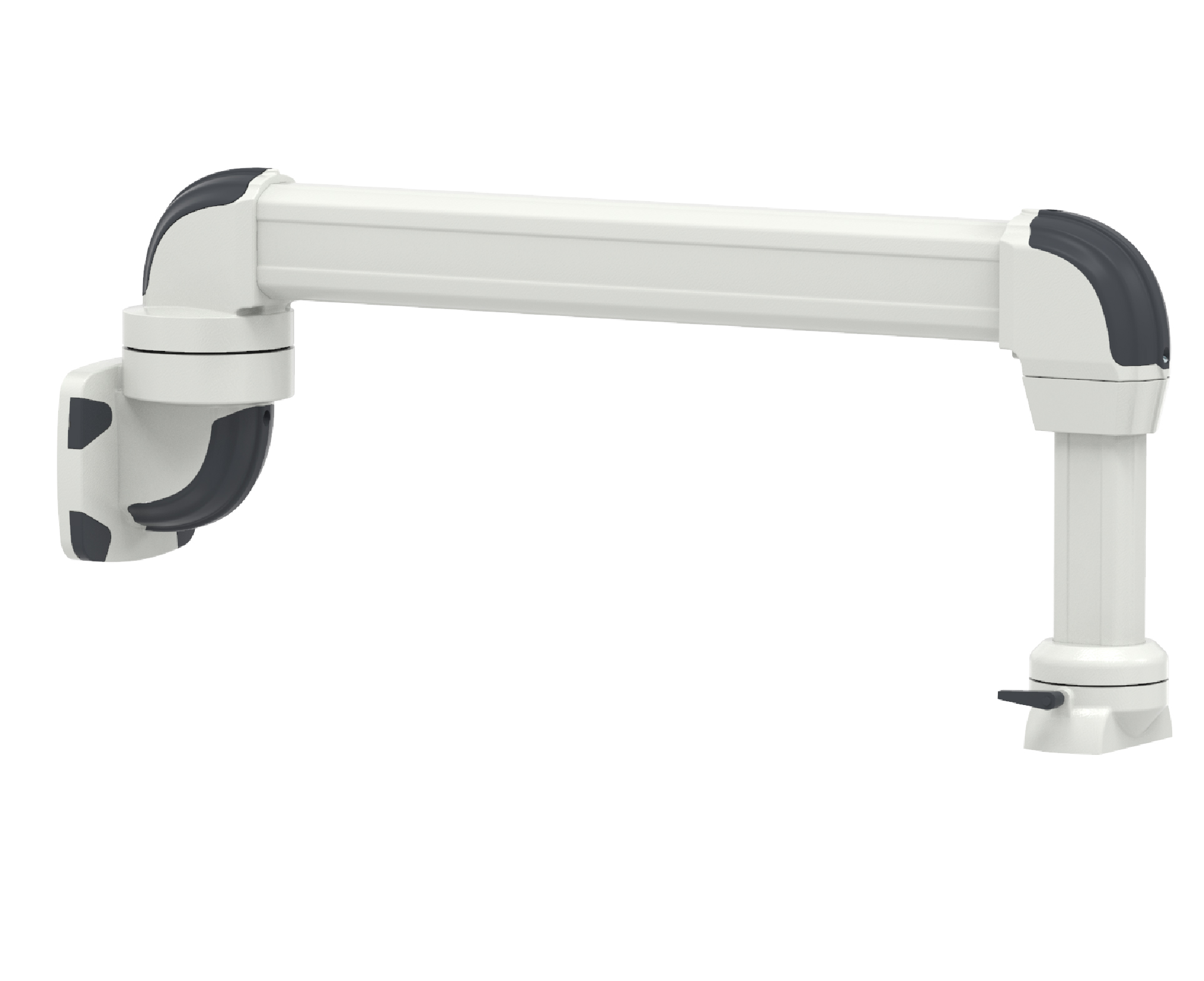

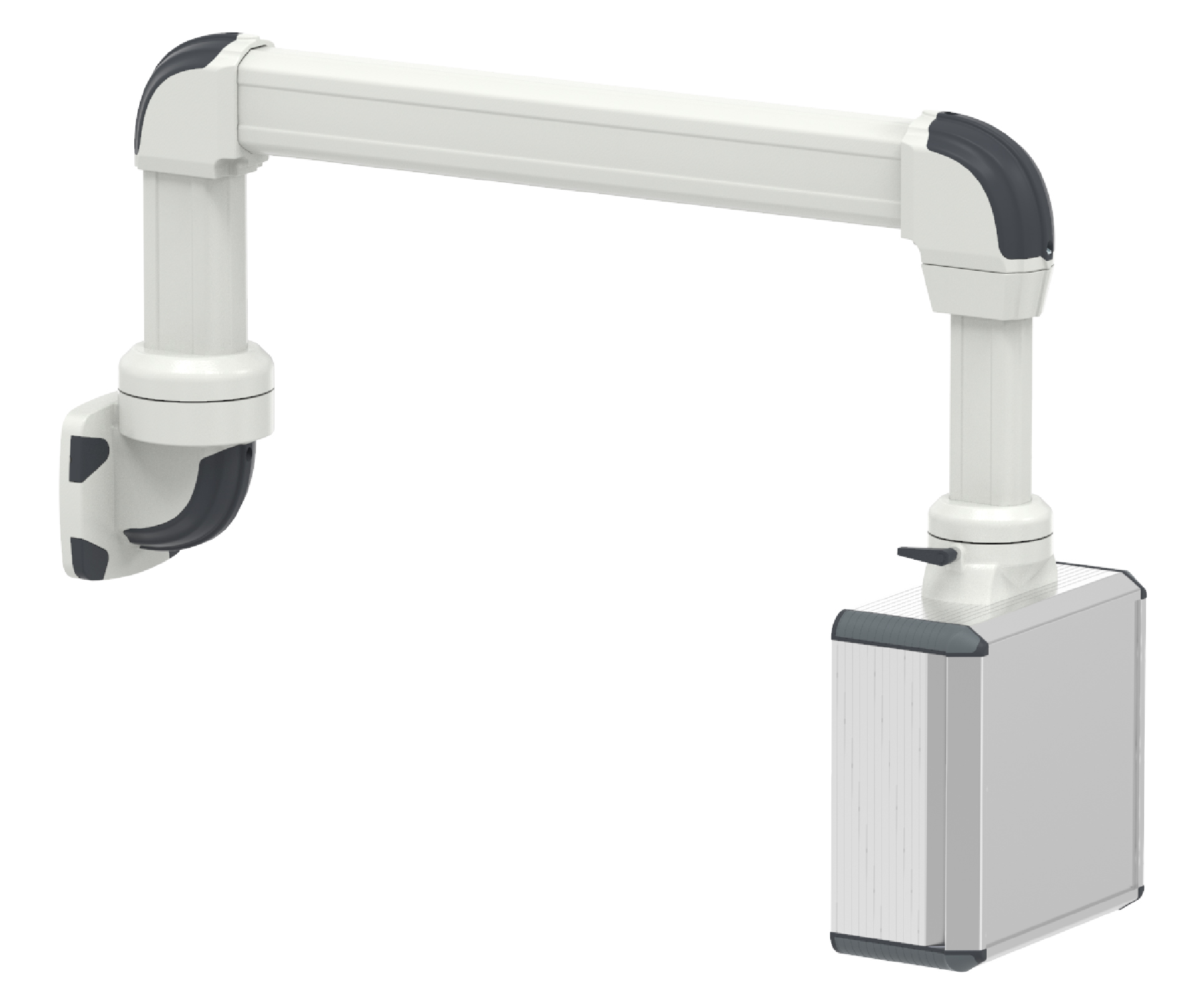

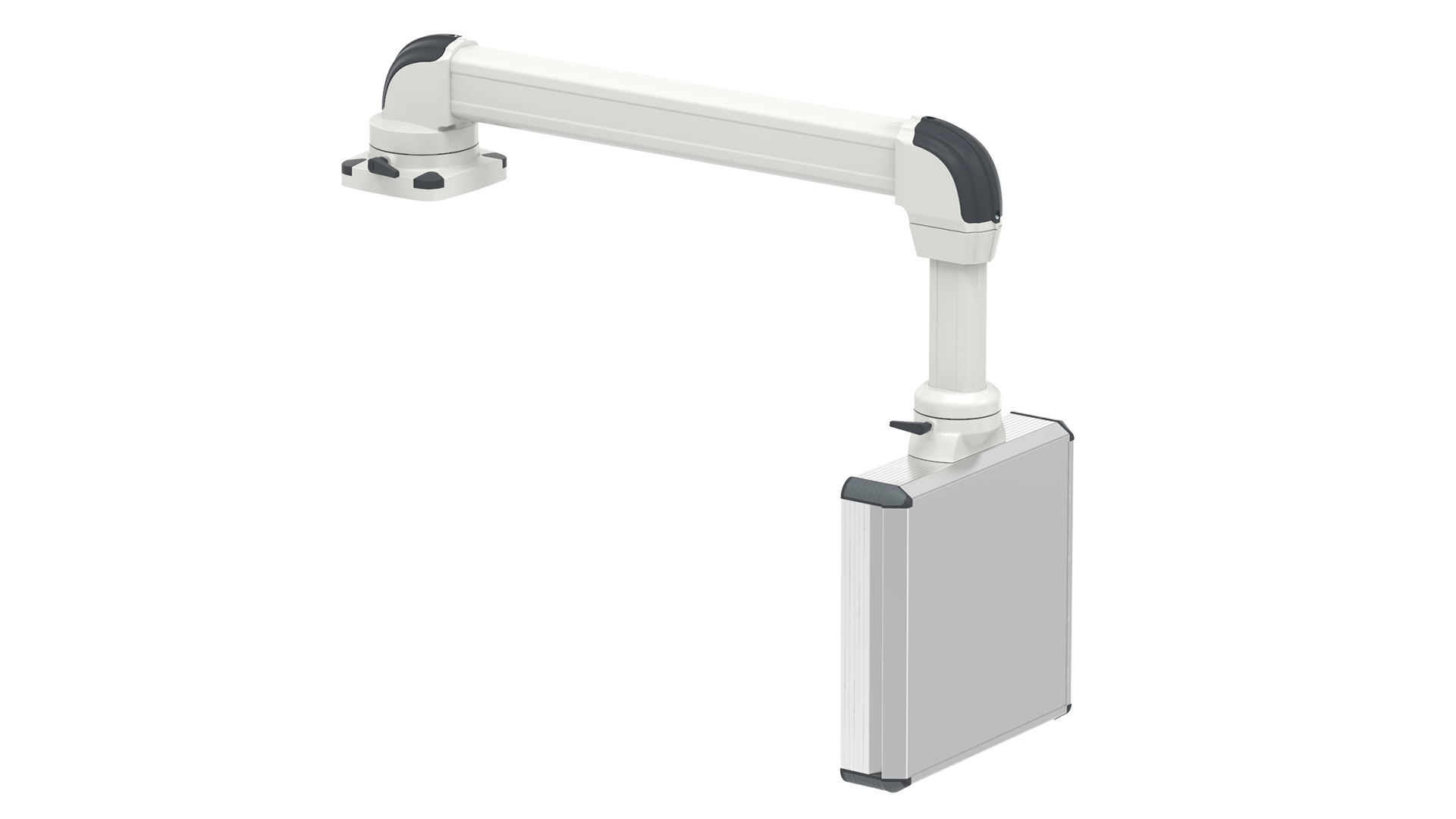

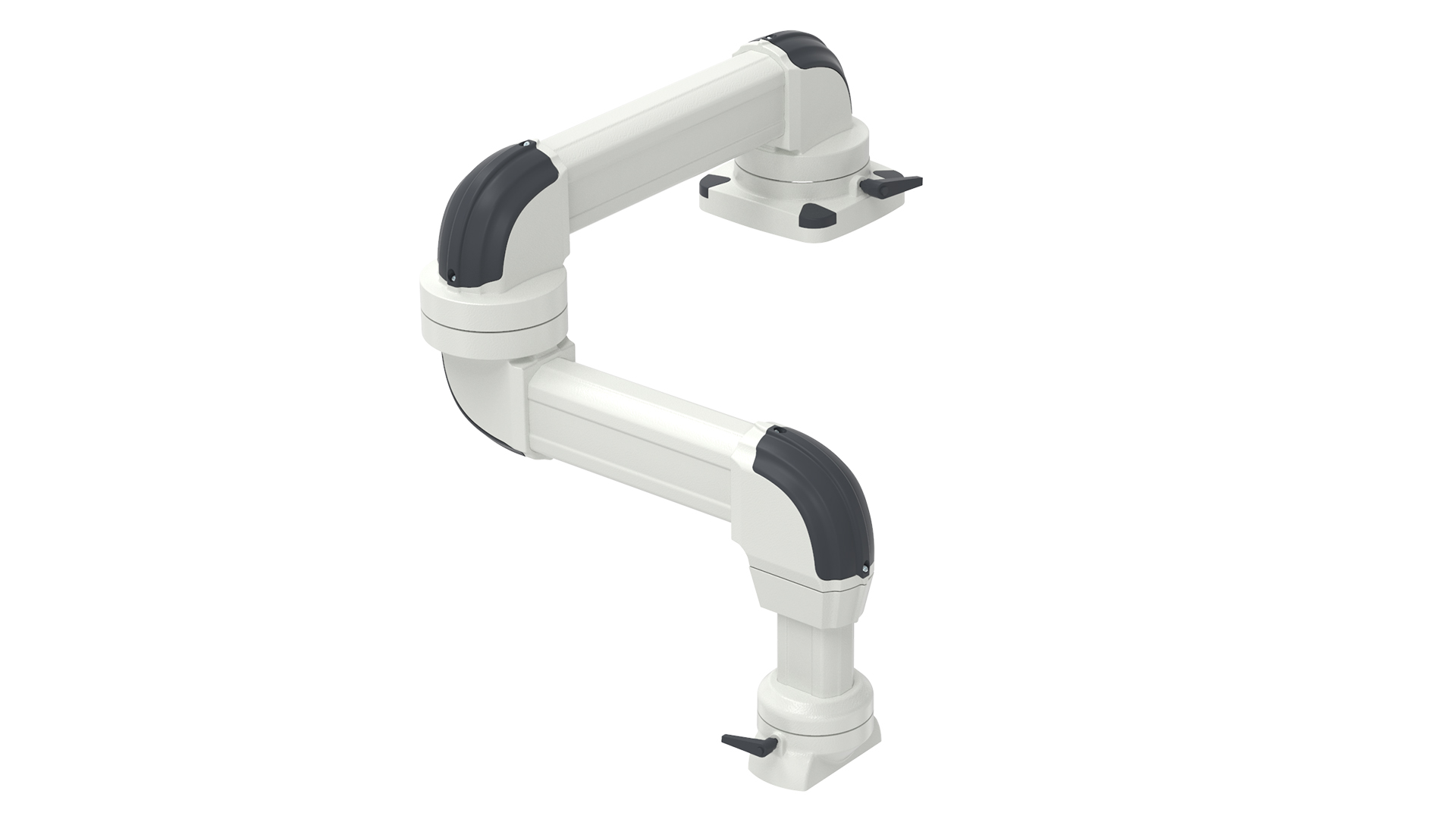

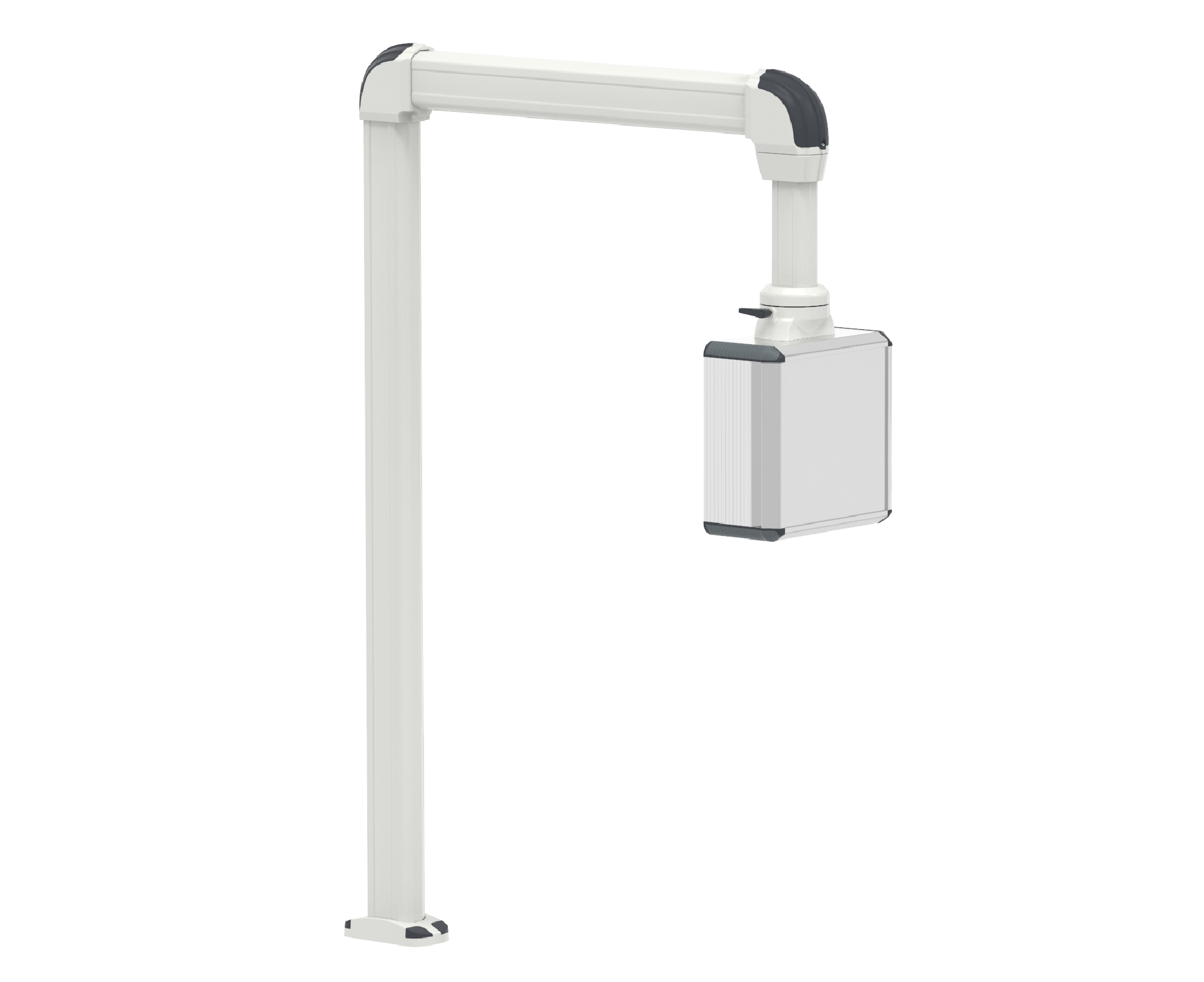

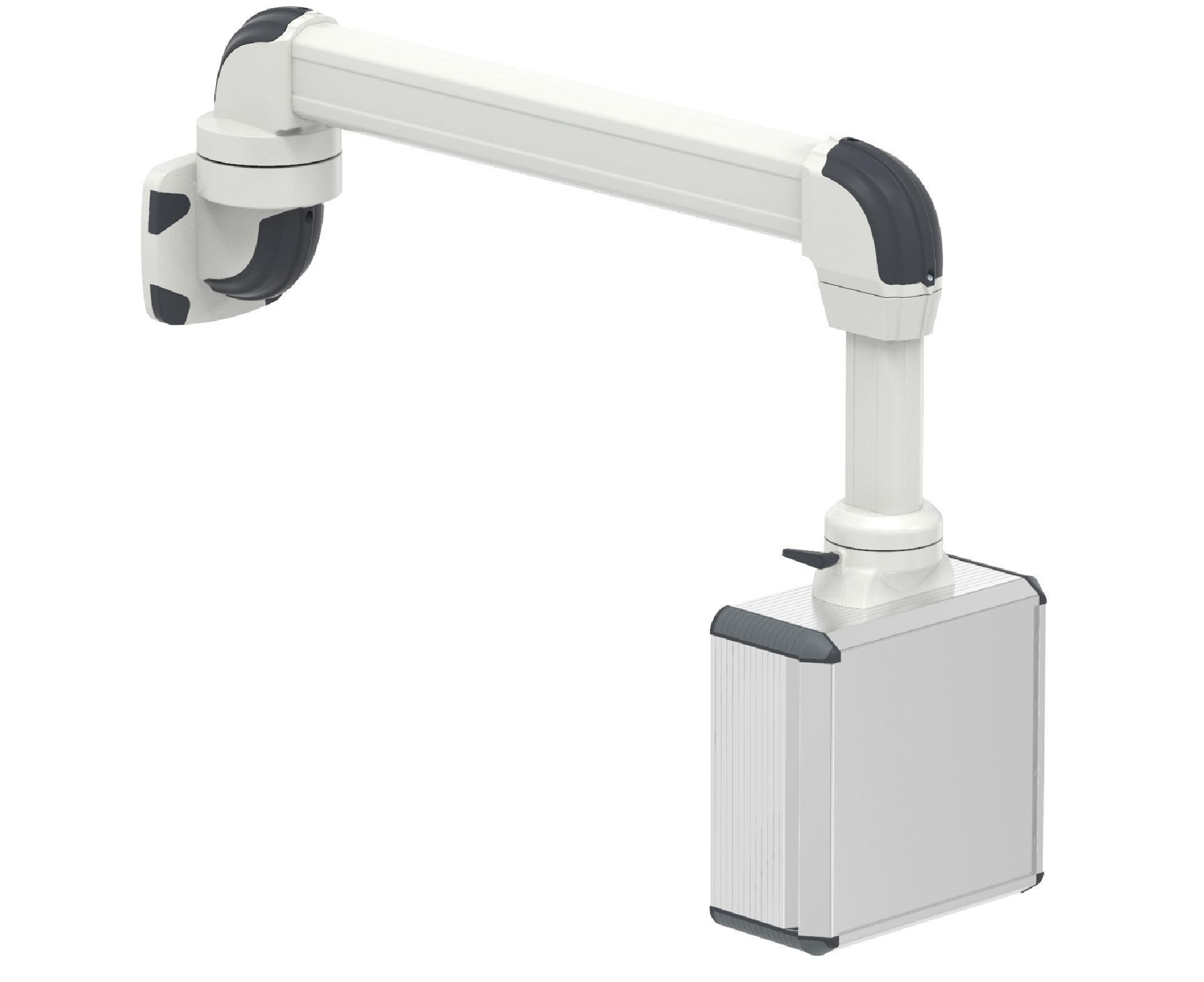

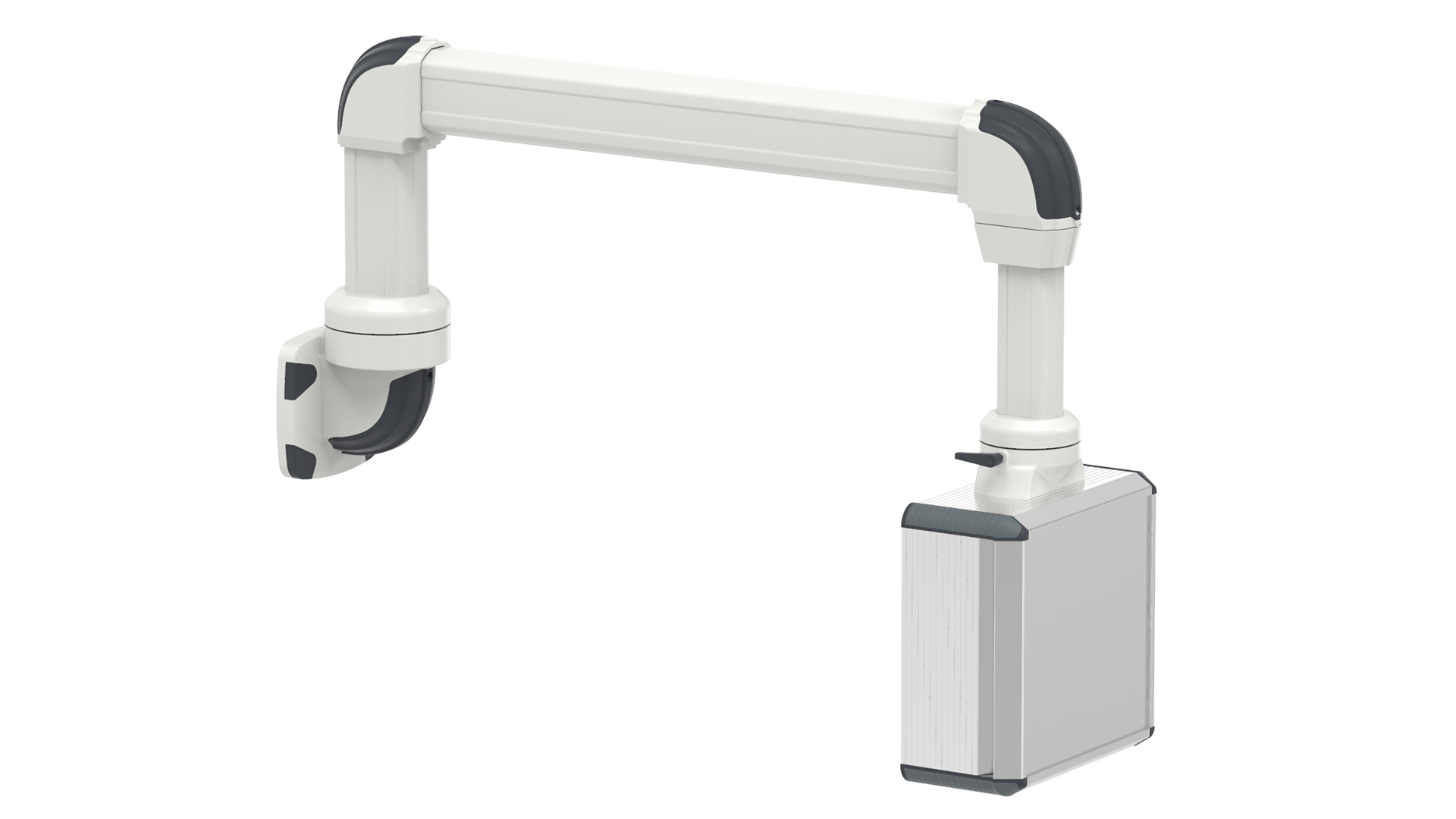

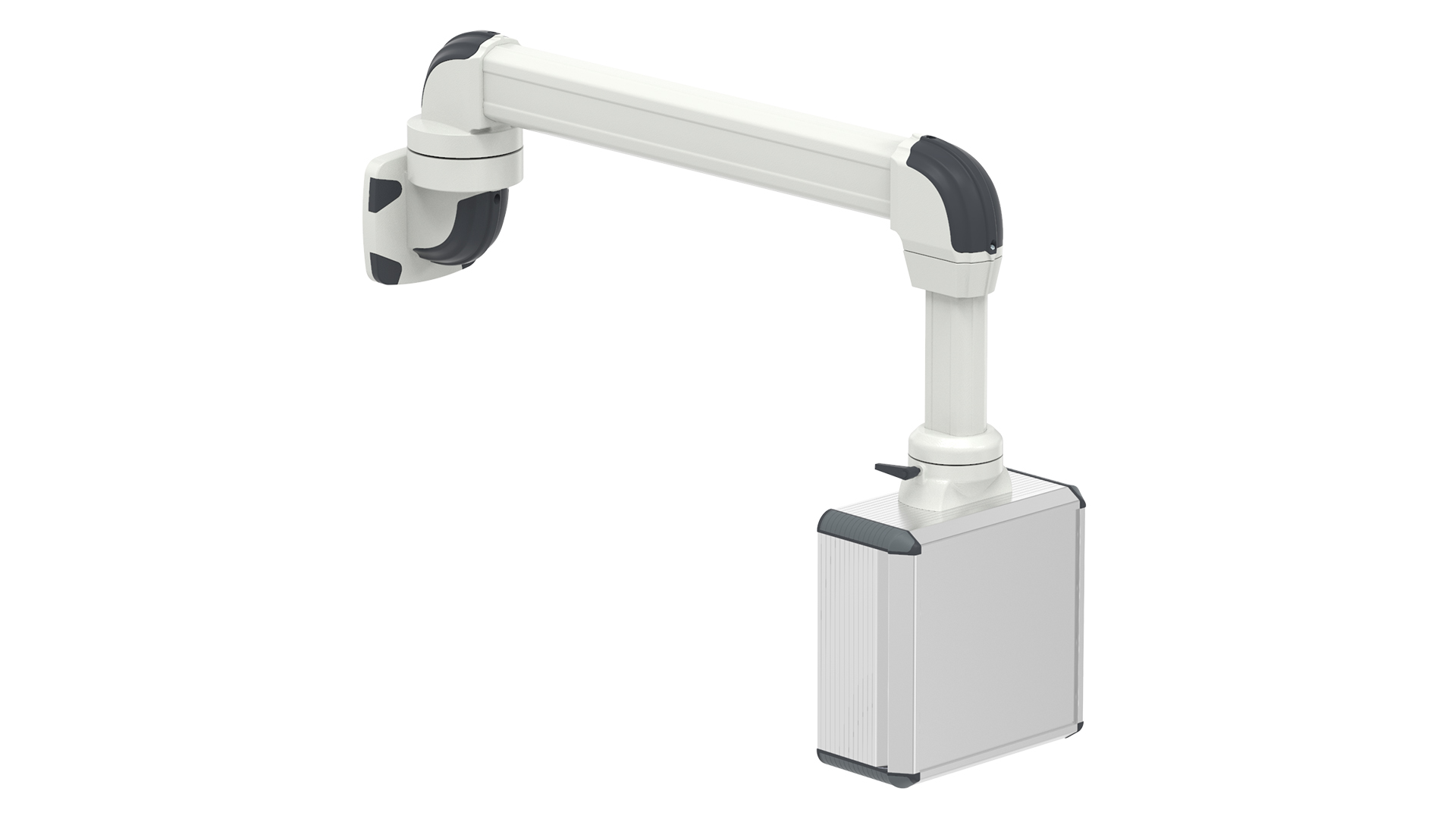

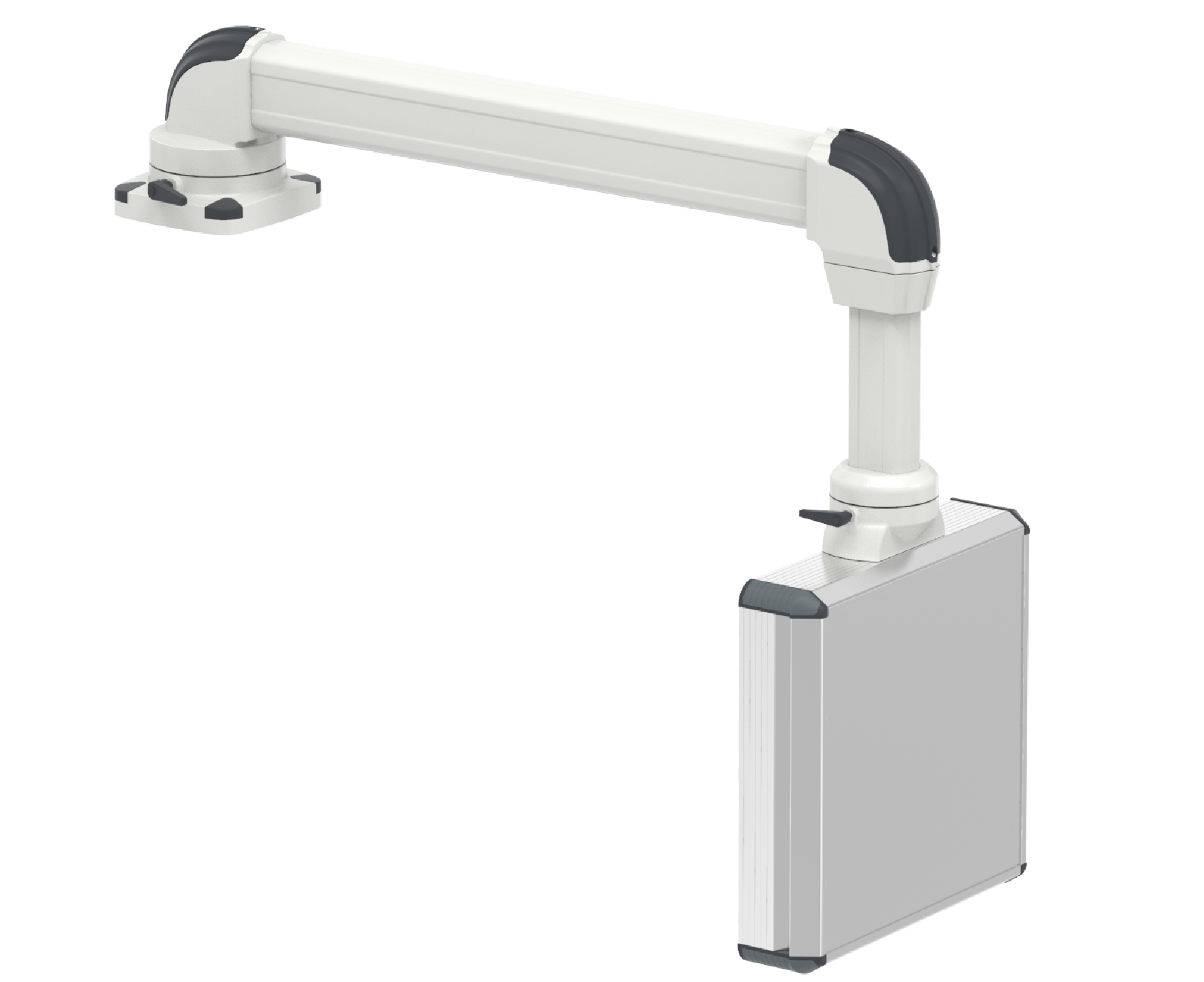

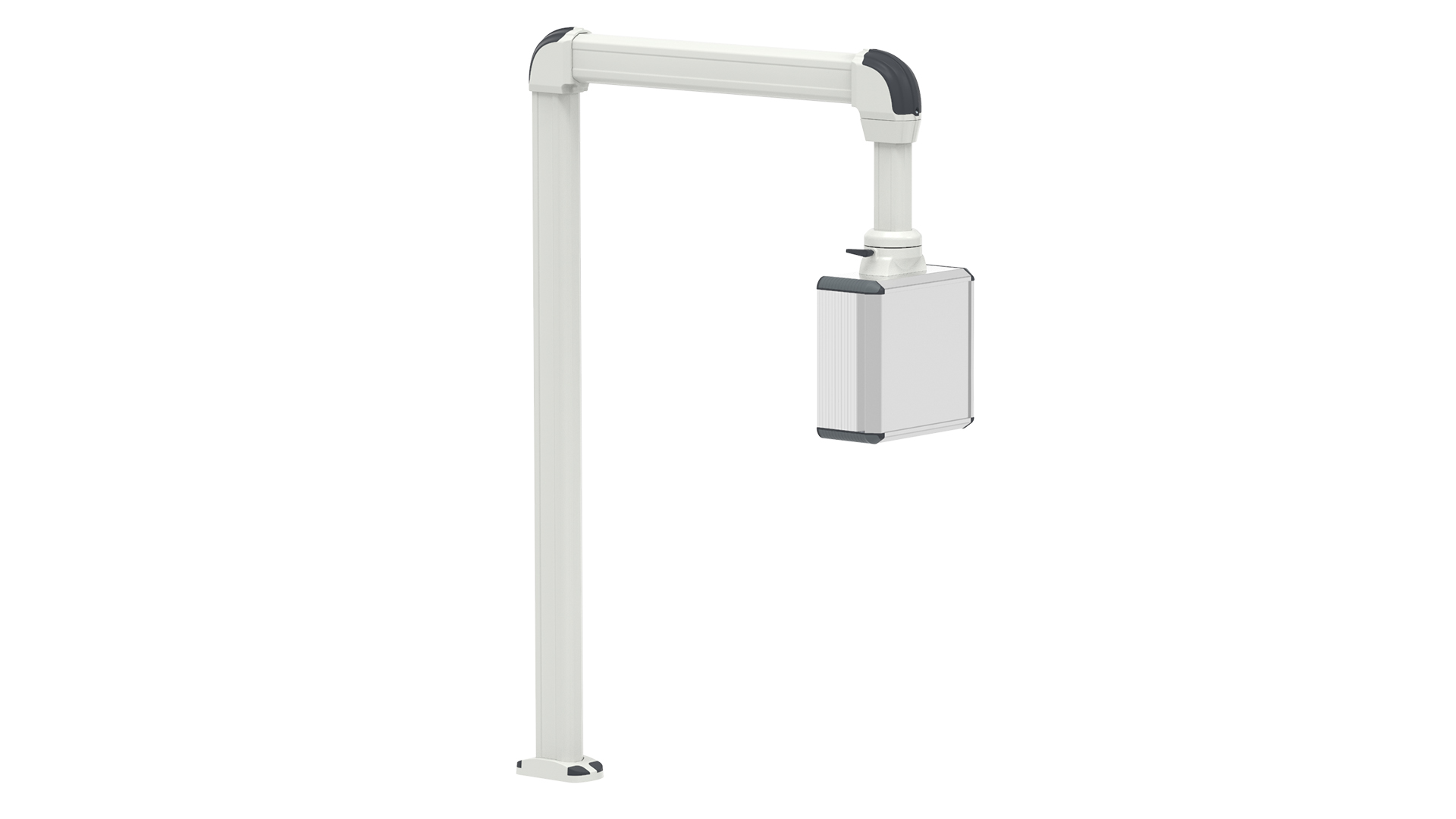

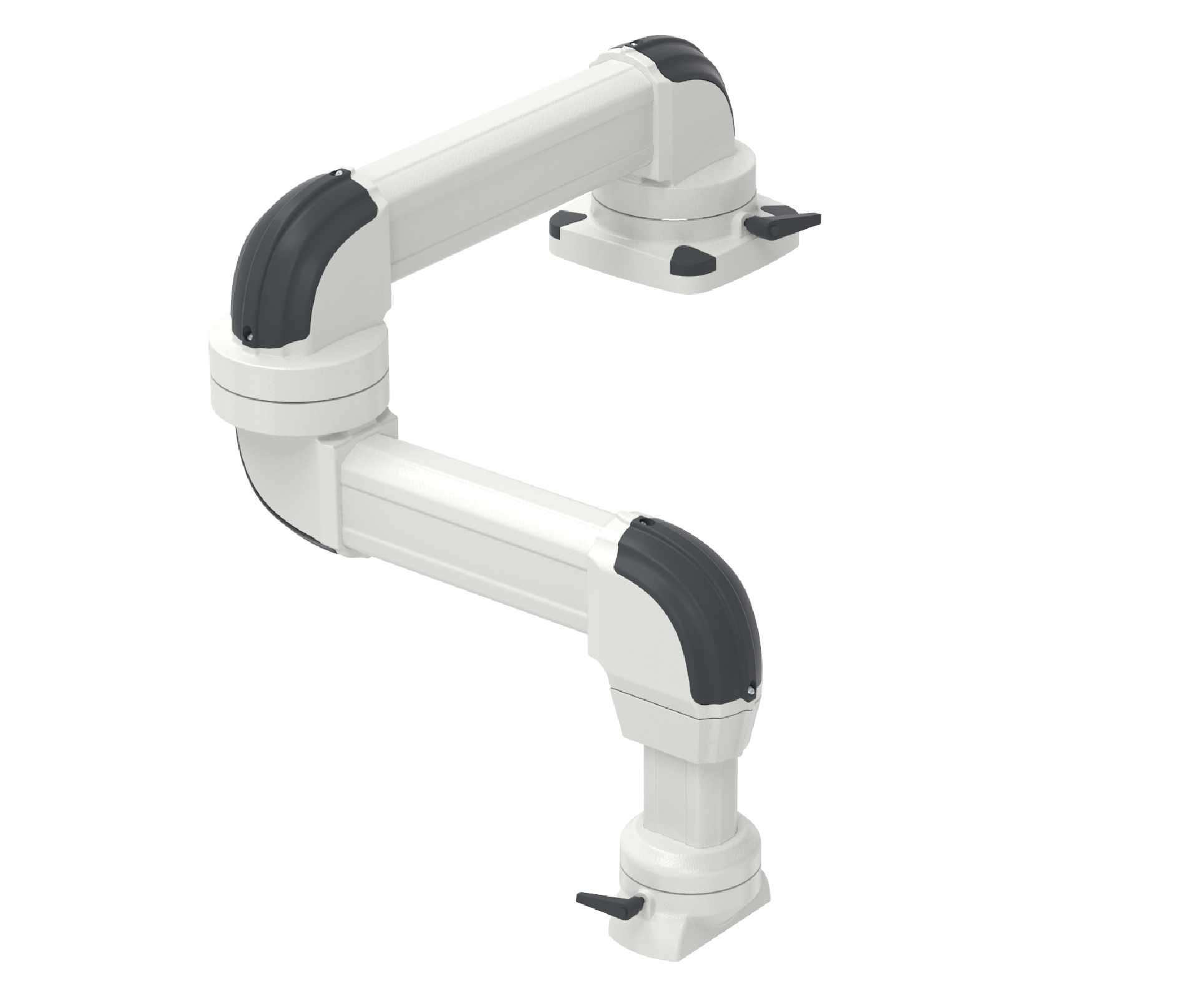

TP150 Support Arm System is developed for demanding operator-interface applications that require a support-arm system for larger or heavier control enclosures. Its configurable profiles and rotating connection modules allow HMI panels to be positioned around the machine while providing the reach and load capacity required by more demanding installations.

TP150 Support Arm System

Material

AL 4600 Series

Surface Finishing

RAL7035

On Request

Custom sizes
Custom colour

Advantages

A single system with three combinable cross-sections
Sleek design with full functionality
High stability for all load levels up to 150 kg
Versatile combination options
Cost-effective and lightweight vertical axis adjustments

Simple and consistent adjustment mechanism
Compatible components suitable for almost any application
Adjustable range of rotation limits
Easy installation
Support arm sections can be easily cut to the desired length
Thread-free mounting with selftapping screws

TP150 Products

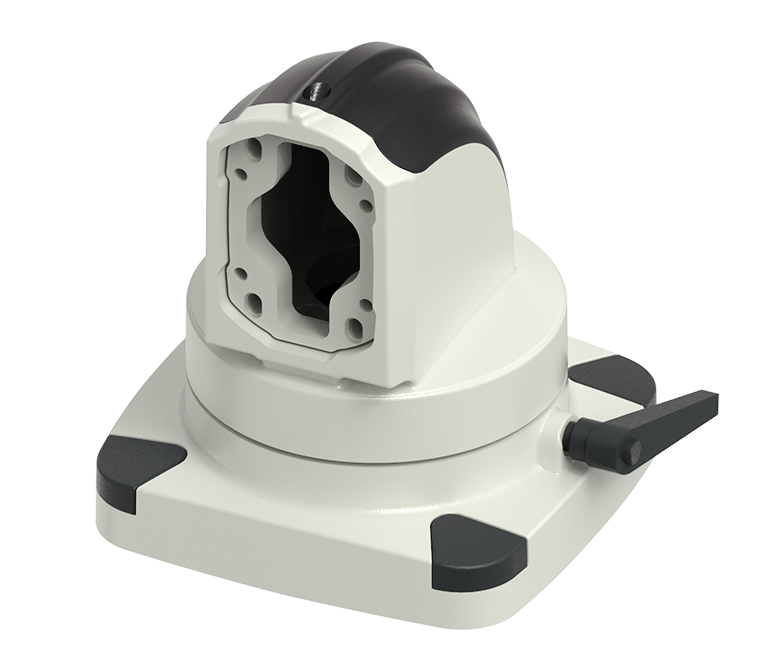

TP150_1234 Top 90° Arm Module

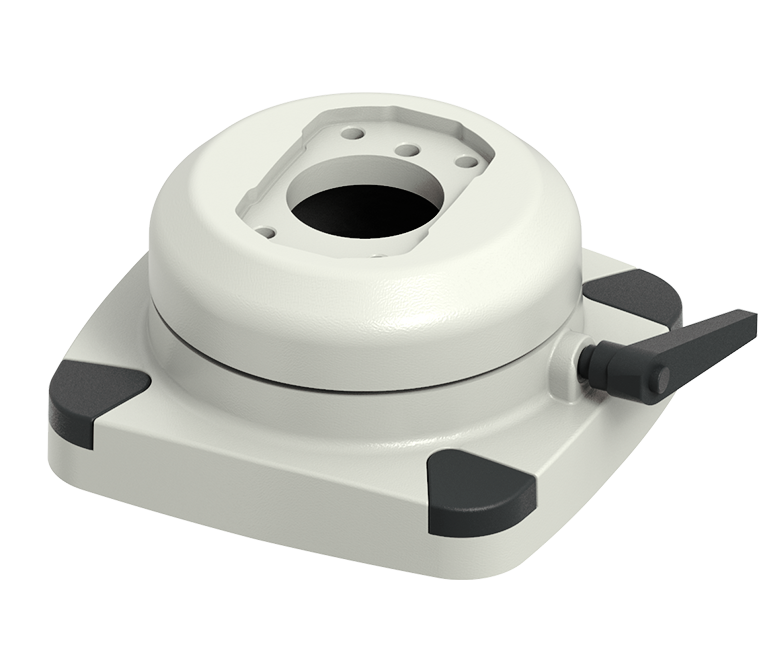

TP150_1634 Top Vertical Outlet Module

TP150_0674 Wall Horizontal Outlet Module

TP150_9000 Wall Mount Bracket

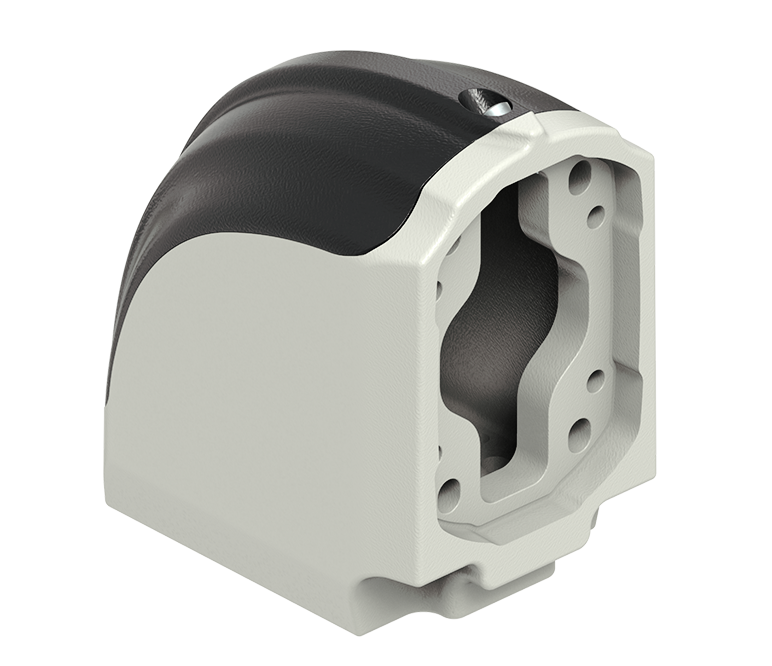

TP150_5300 90° Angle Arm Module

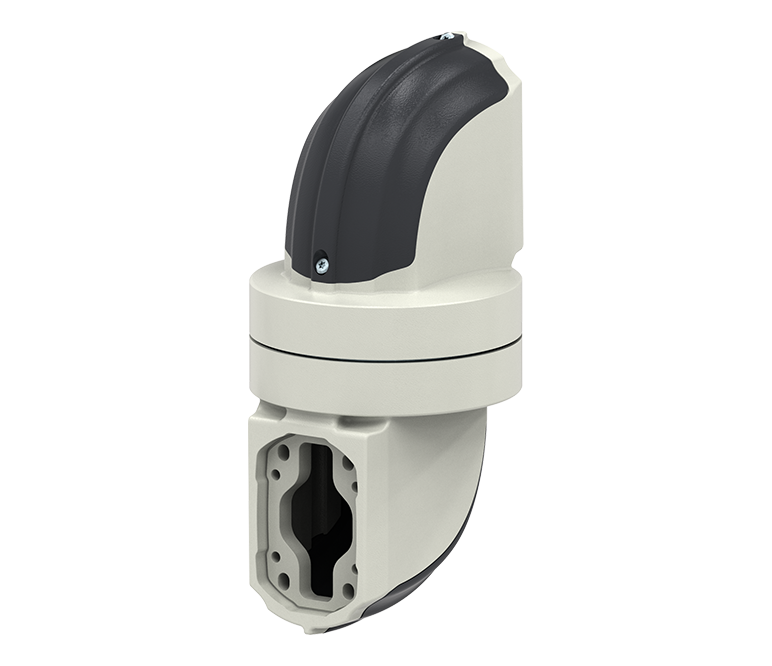

TP150_0234 Intermediate Horizontal Coupling

TP150_1560 Reduction Adapter

TP150_6740 Panel Vertical Coupling

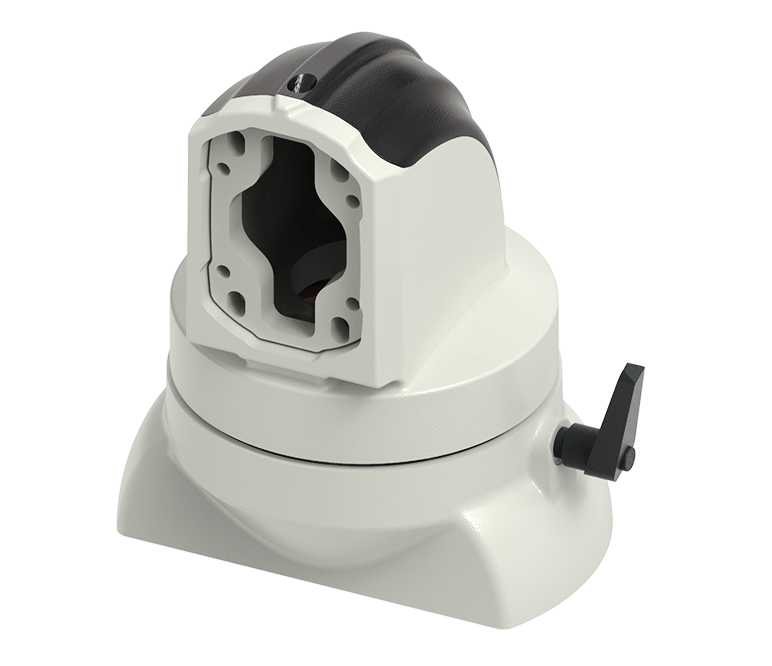

TP150_2374 Panel Horizontal Coupling

TP150_3410 Angular Motion Adapter

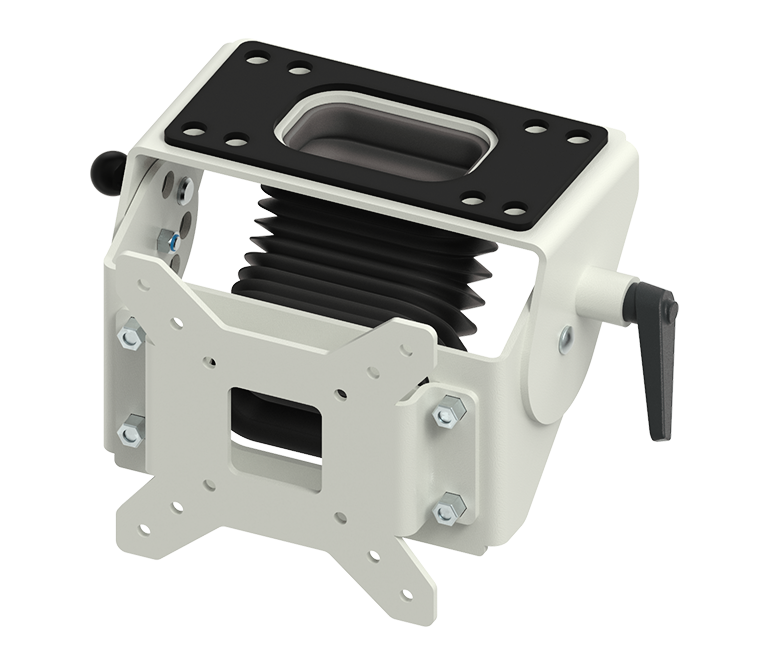

TP150_3420 VESA Angular Adapter

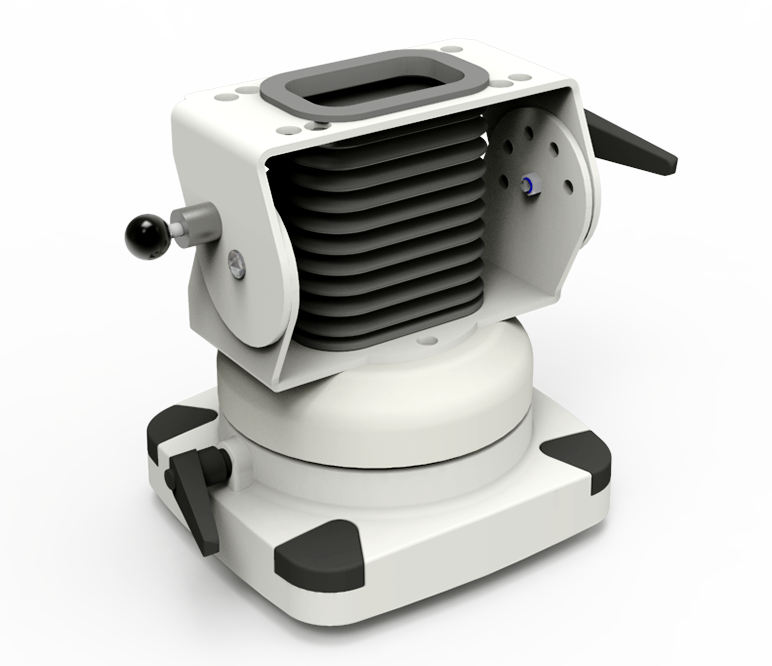

TP150_3430 Vertical Panel Slope Module

PNAKTP-SRFLB10 Flasher Mount Bracket

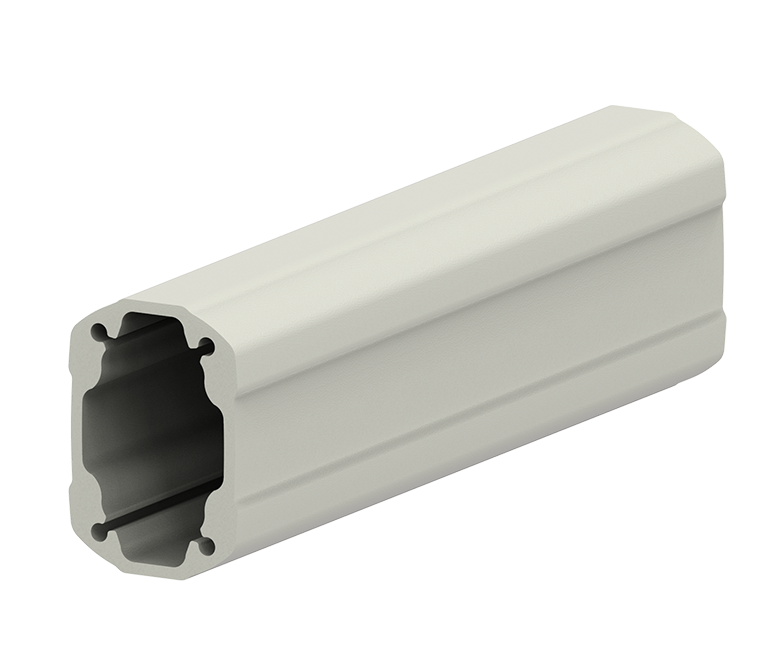

TP150 Profile Support Profile

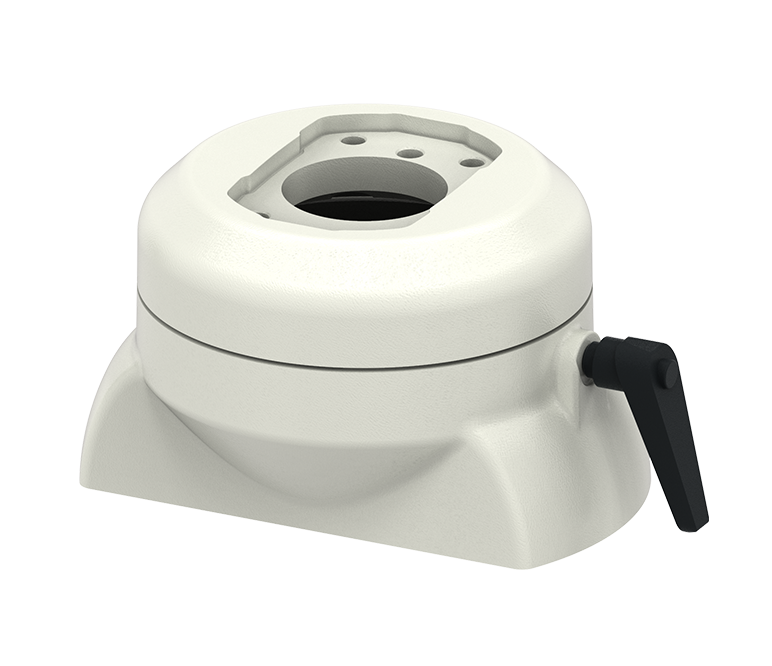

01	TP1501234	Top Mounted Module, 90°, Rotatable, Horizontal Outlet

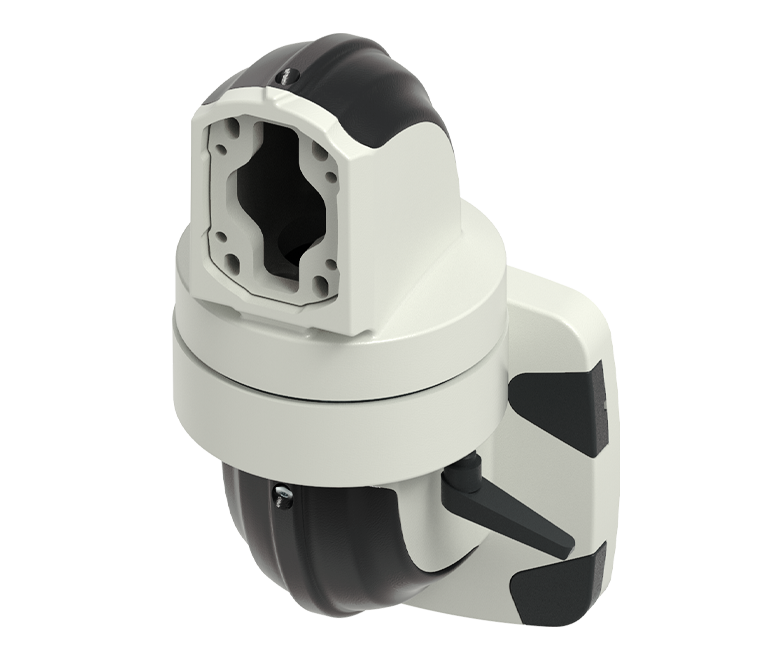

02	TP1508234	Wall Mounted Module with Height Offset, Rotatable, Horizontal Outlet

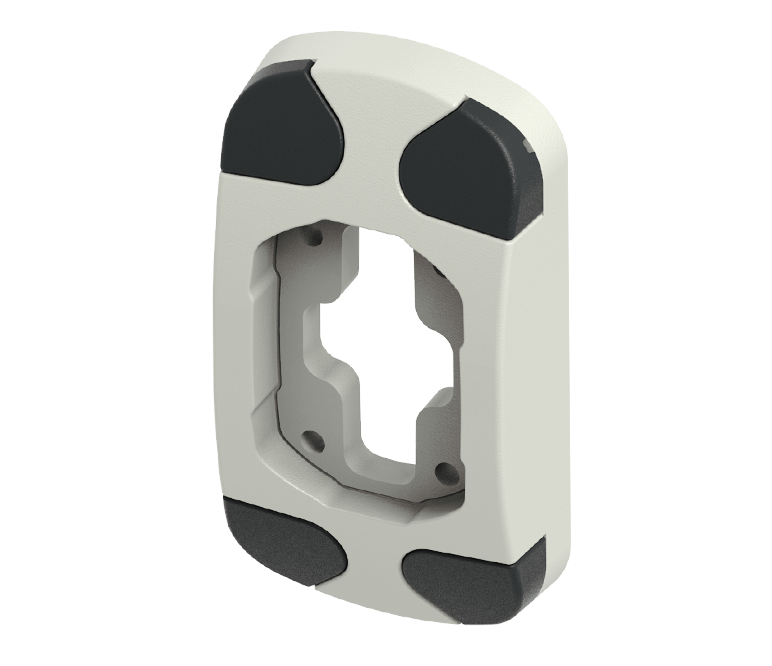

03	TP1509000	Wall/Base Mounting Bracket
04	TP1501634	Top Mounting Module, Rotatable, Vertical Outlet

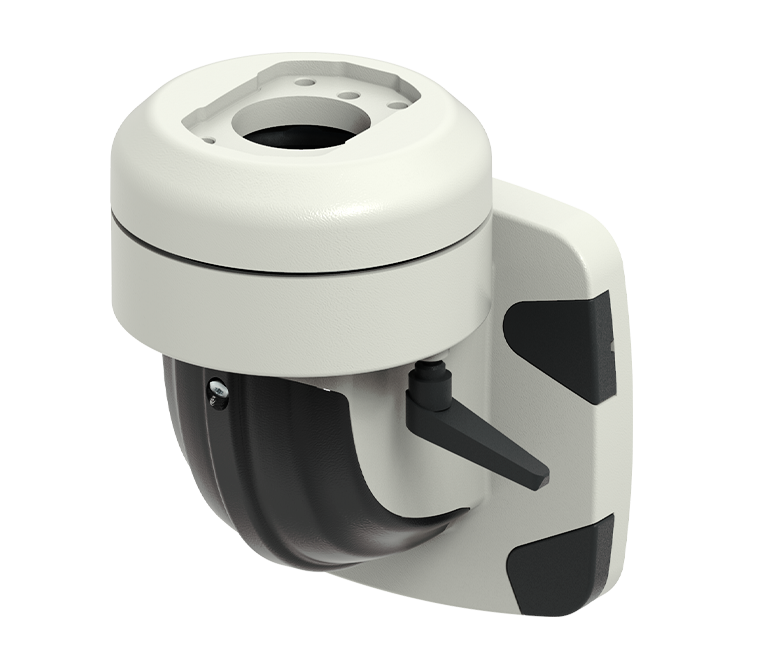

05	TP1500674	Wall Mounted Module, Rotatable, Horizontal Outlet
06	TP1505300	90° Angel Module
07	TP1500234	Intermediate Coupling, Rotatable, Horizontal Outlet

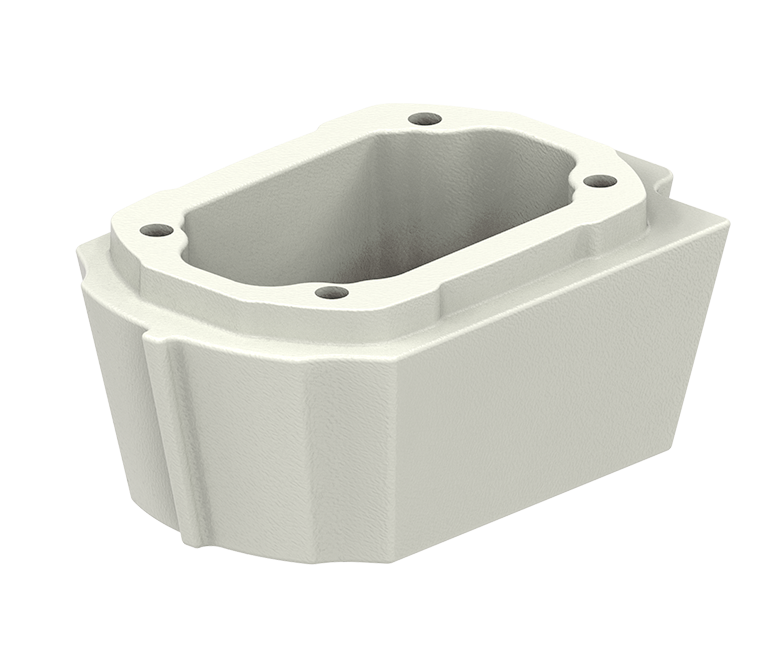

08	TP1506045	Reduction Adapter
09	TP1506740	Panel Coupling Module, Rotatable, Vertical Outlet
10	TP1502374	Panel Coupling Module, Rotatable, Horizontal Outlet

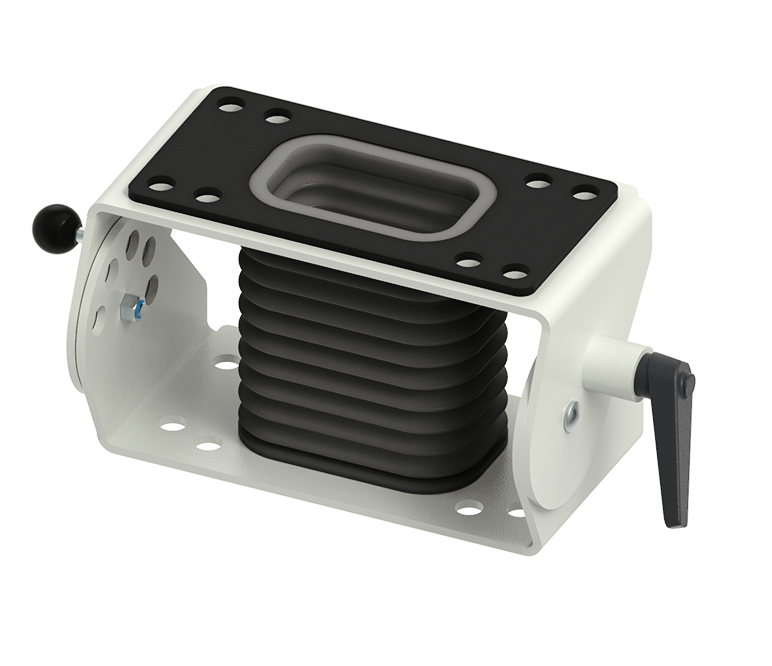

11	TP1503410	Angular Moving Adaptor
12	TP1503420	Angular Moving Adaptor With Vesa
13	PNAKTP-SRFLB10	Siren and beacon mounting bracket
14	TP150 Profile	Support Profile
