TP090 Control Panels

Home

Operator Panel And Arm Systems

Panel Systems

TP090 Control Panels

Material

AL 4600 Series
Sheet Steel (AL)

Surface Finishing

IP 55 Protection
RAL 7015 Corner Connections
RAL 7042 Corner Caps

Other

Aluminum Profile Body: Lightweight and robust structure for easy transport and installation.
Integrated Handle Side Profile: Offers ergonomic use and ease of handling.
Front Sheet Brackets: Allow tool-free installation of the front sheet, enabling quick and easy assembly.
DIN Rail Mounting Brackets: Ensure secure and stable component installation.

On Request

Custom sizes
Custom colour

Advantages

Automation and Control Systems: Provide reliable and efficient solutions for industrial automation projects.
Machinery Manufacturing: Ensure high performance in machine control and monitoring systems.
Energy Management: Stand out with durability and protection level in energy distribution and management systems.
Medical Devices: Preferred in medical applications requiring precision and reliability.

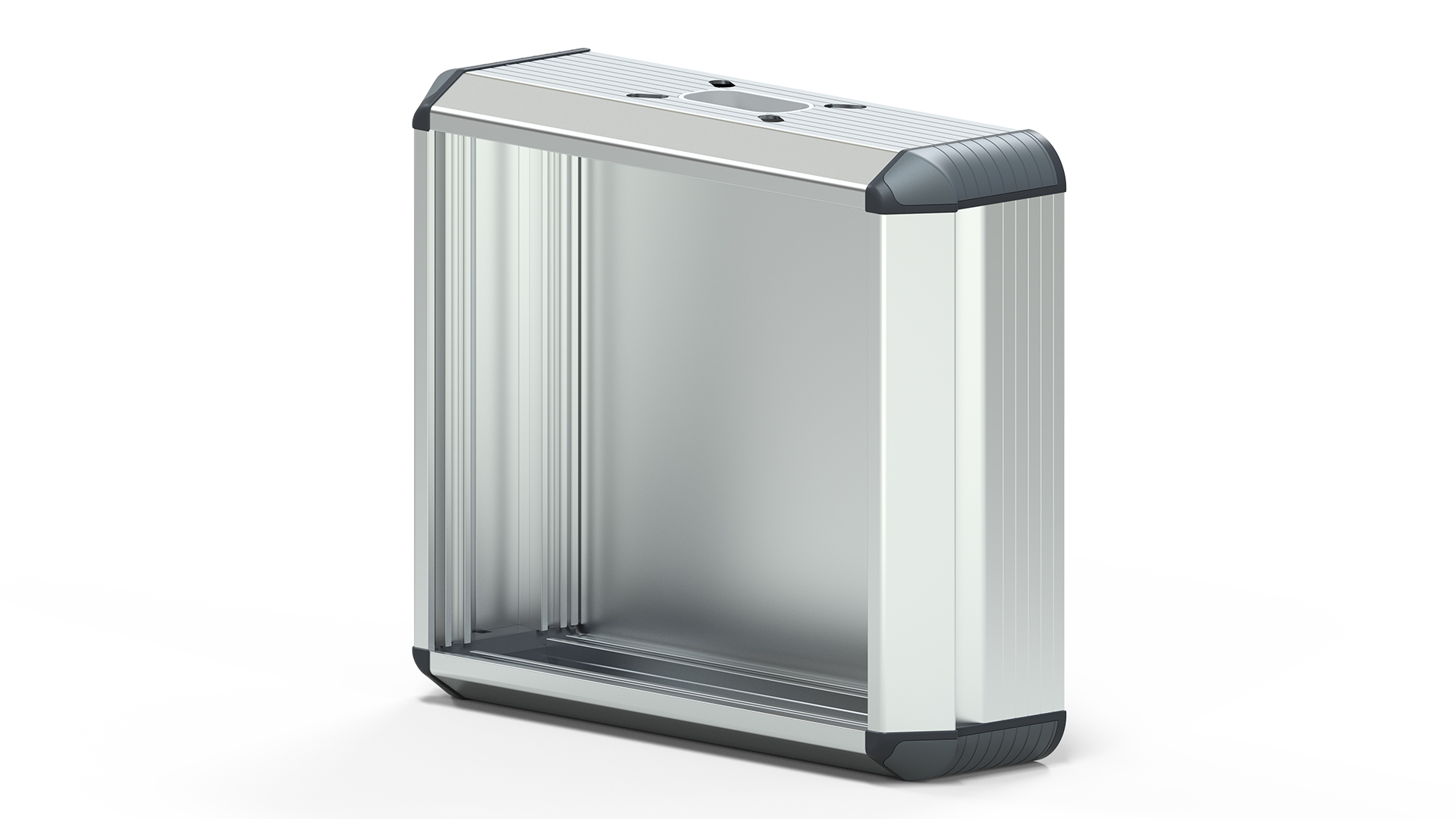

TP090 Control Panels provide a compact operator-interface enclosure for HMI screens, control devices and visualization equipment mounted directly on industrial machinery. Their slim profile is particularly useful where installation depth is limited, while the aluminum-profile construction and integrated handling features support practical installation and positioning.

TP090 Control Panels

Material

AL 4600 Series
Sheet Steel (AL)

Surface Finishing

IP 55 Protection
RAL 7015 Corner Connections
RAL 7042 Corner Caps

On Request

Custom sizes
Custom colour

Other

Aluminum Profile Body: Lightweight and robust structure for easy transport and installation.
Integrated Handle Side Profile: Offers ergonomic use and ease of handling.
Front Sheet Brackets: Allow tool-free installation of the front sheet, enabling quick and easy assembly.
DIN Rail Mounting Brackets: Ensure secure and stable component installation.

Advantages

Automation and Control Systems: Provide reliable and efficient solutions for industrial automation projects.
Machinery Manufacturing: Ensure high performance in machine control and monitoring systems.
Energy Management: Stand out with durability and protection level in energy distribution and management systems.
Medical Devices: Preferred in medical applications requiring precision and reliability.

Similar Products

TP150 Control Panels

TP150 Support Arm System

TP060 Support Arm System

TP045 Support Arm System

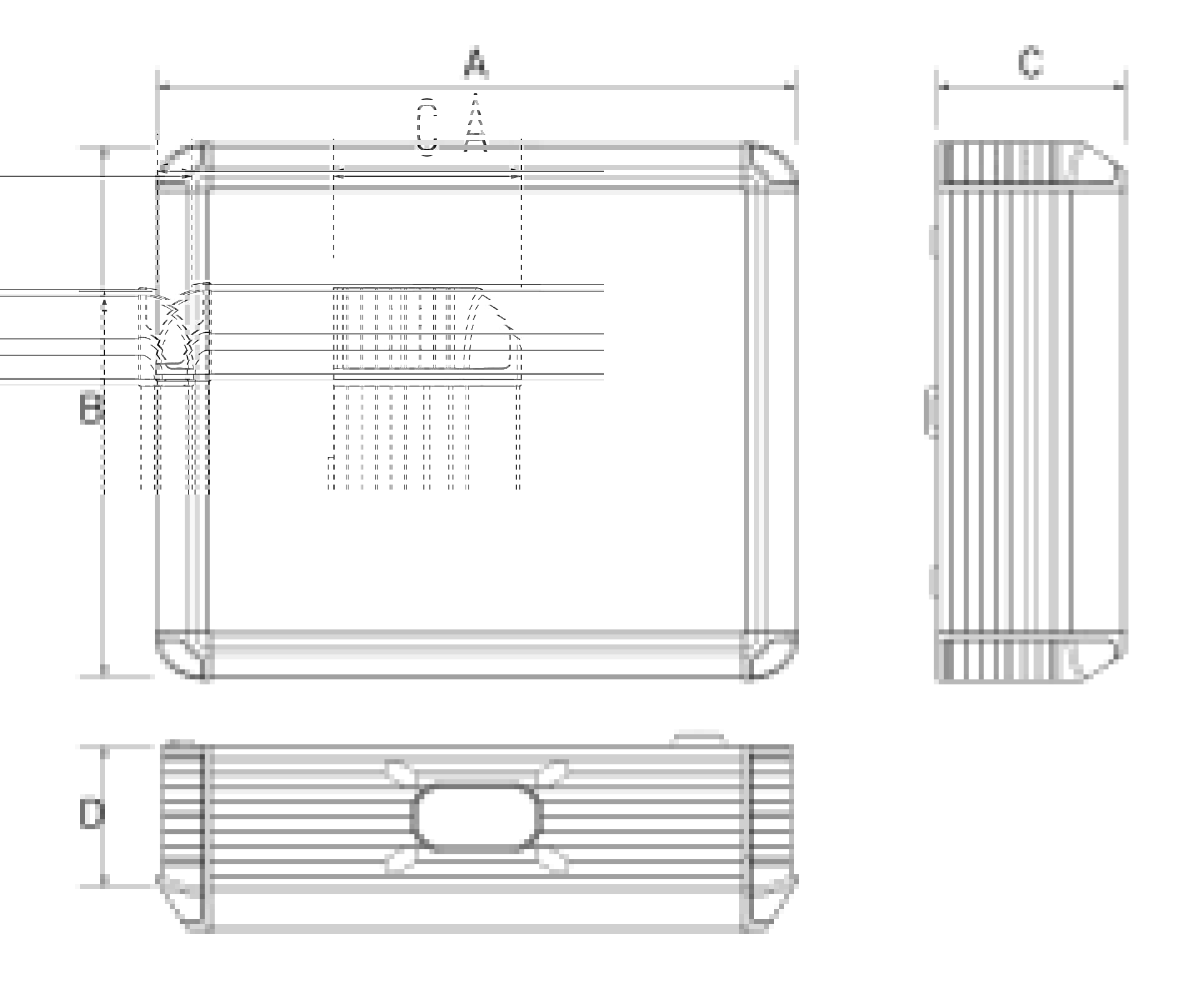

Width

Height

Depth

Reference

Front Sheet

Back Door

Installation
Depth

Weight

Cad Models

Width

Height

Useful Area

Lock

Lock Type

Hinge

pcs.

293	293	103	TP252509	250	250	230	230	1	C	3	78	2.6
343	293	103	TP302509	300	250	280	230	1	C	3	78	2.9
343	343	103	TP303009	300	300	280	280	1	C	3	78	3.2
443	343	103	TP403009	400	300	380	280	2	C	3	78	3.8
443	443	103	TP404009	400	400	380	380	2	C	3	78	4.7
543	443	103	TP504009	500	400	480	380	2	C	3	78	5.4
543	543	103	TP505009	500	500	480	480	2	C	3	78	6.2
643	543	103	TP605009	600	500	580	480	2	C	3	78	7.1
643	643	103	TP606009	600	600	580	580	2	C	3	78	8.0
