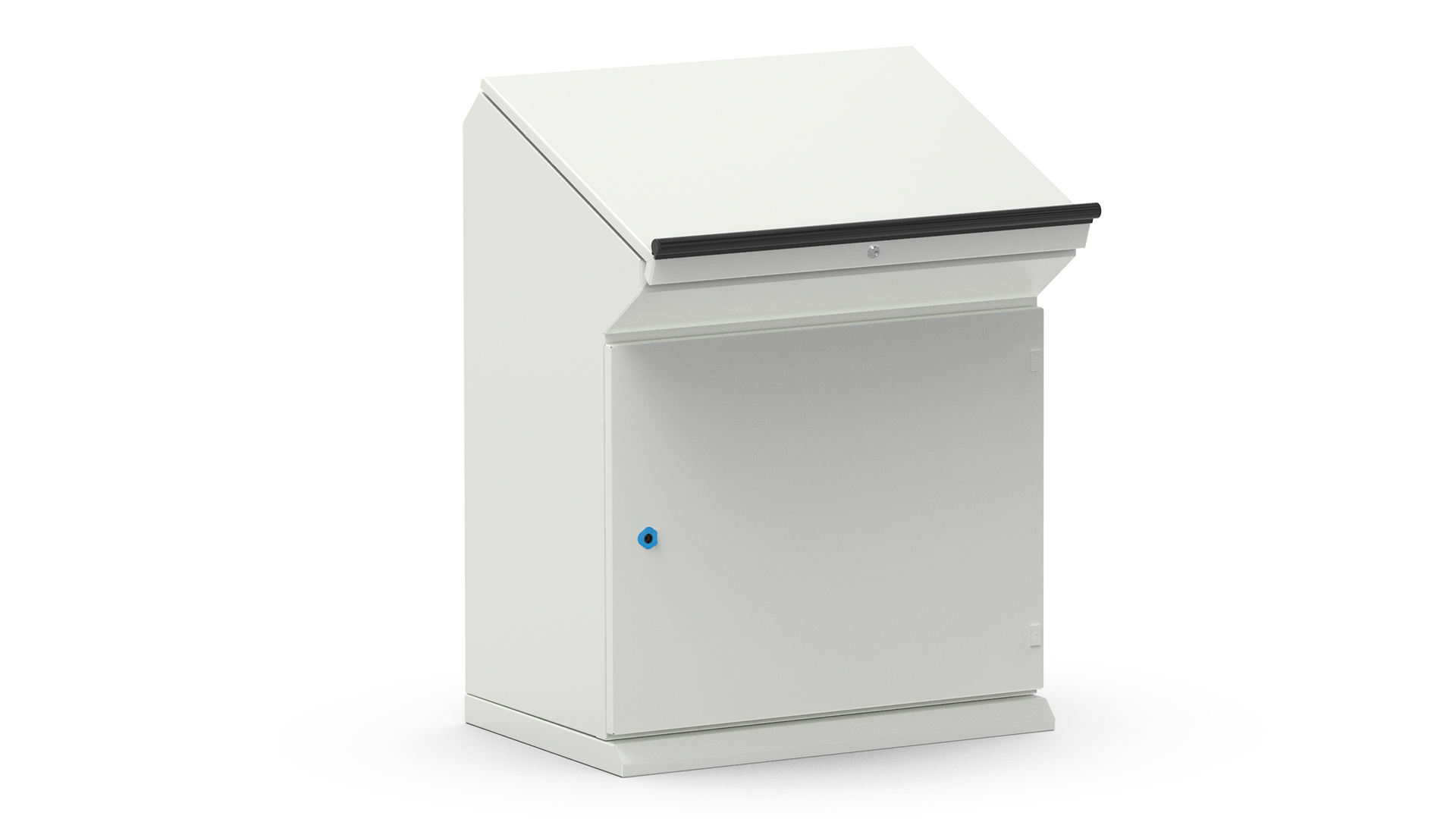

PT Series Enclosures

Home

Enclosure Solutions

Console and Operator Enclosures

PT Series Enclosures

Material

Sheet Steel (EN 10130 DC01)
- Body : 1.2 / 1.5 mm
- Door : 2 mm
- Plinth : 2 mm
Galvanized Steel (EN 10346 DX51D+Z)
- Mounting plate : 2 mm

Surface Finishing

RAL7035w powder coating

IP Rating

IP54 (TS 3033, EN 60529) (PT)

Others

Foamed-in door PU sealing gasket
Removable rear panel
Depth adjustable mounting plate
Top lid stopper
Facility for double mounting plate

3D Cad Models

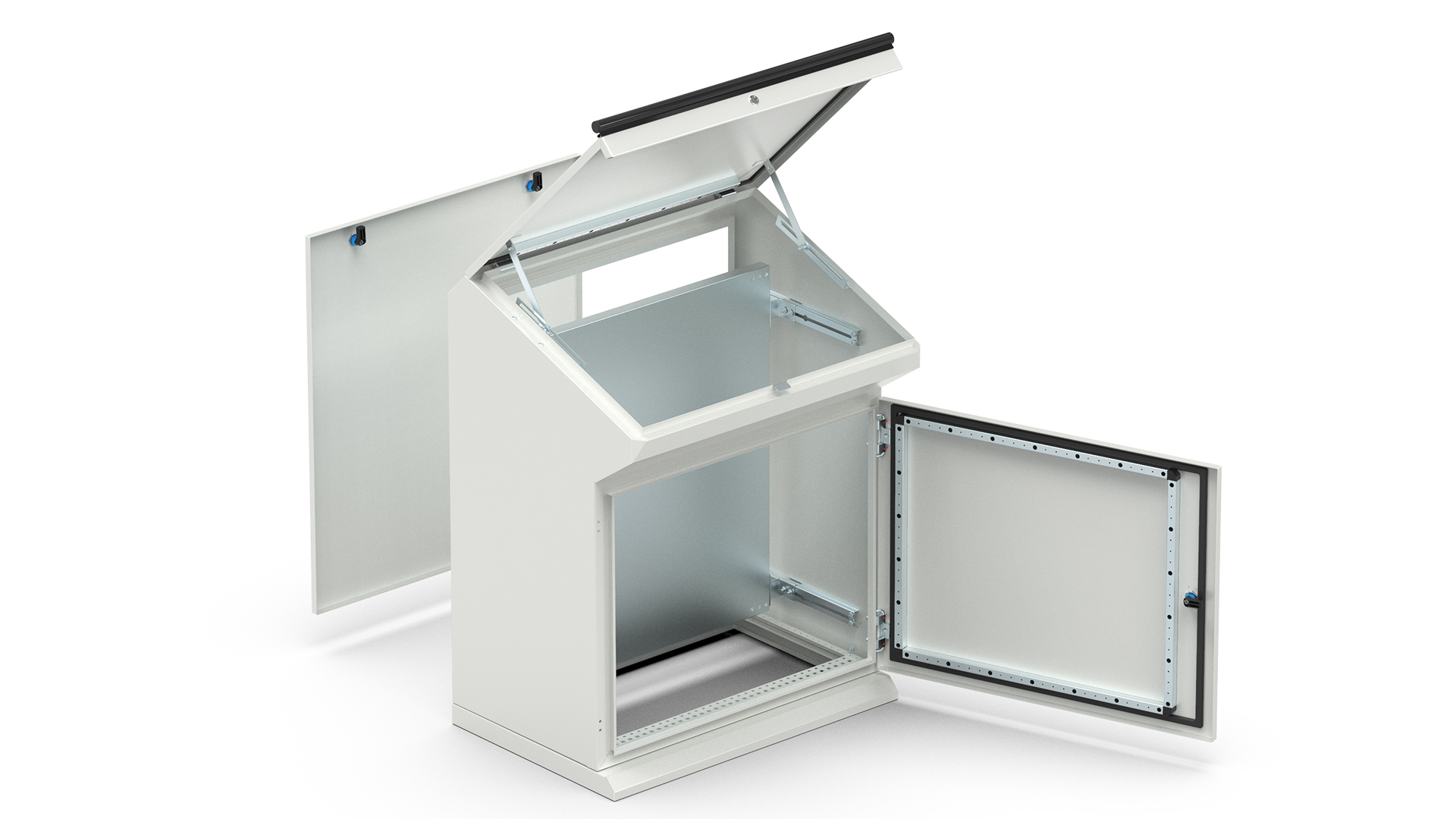

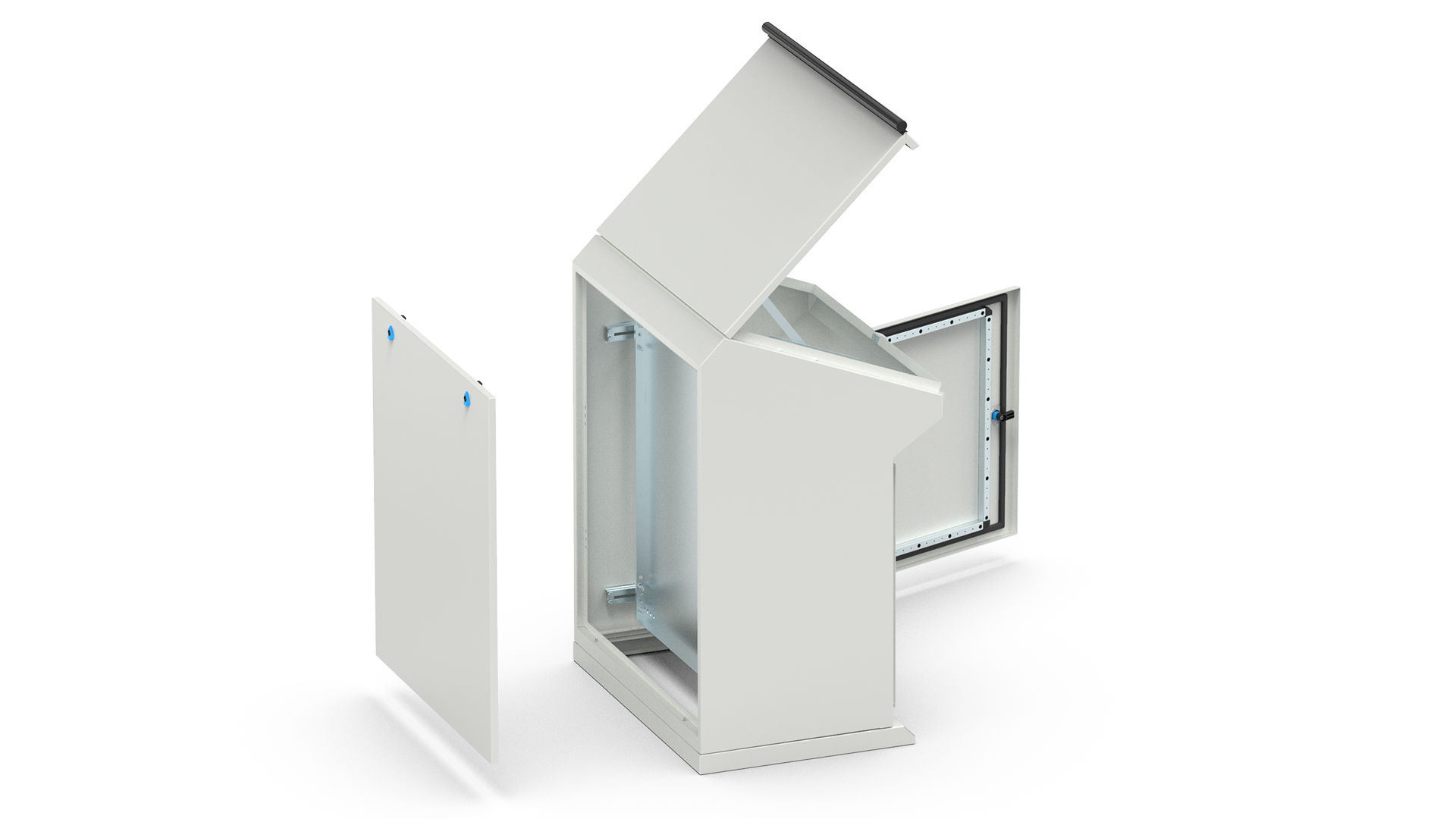

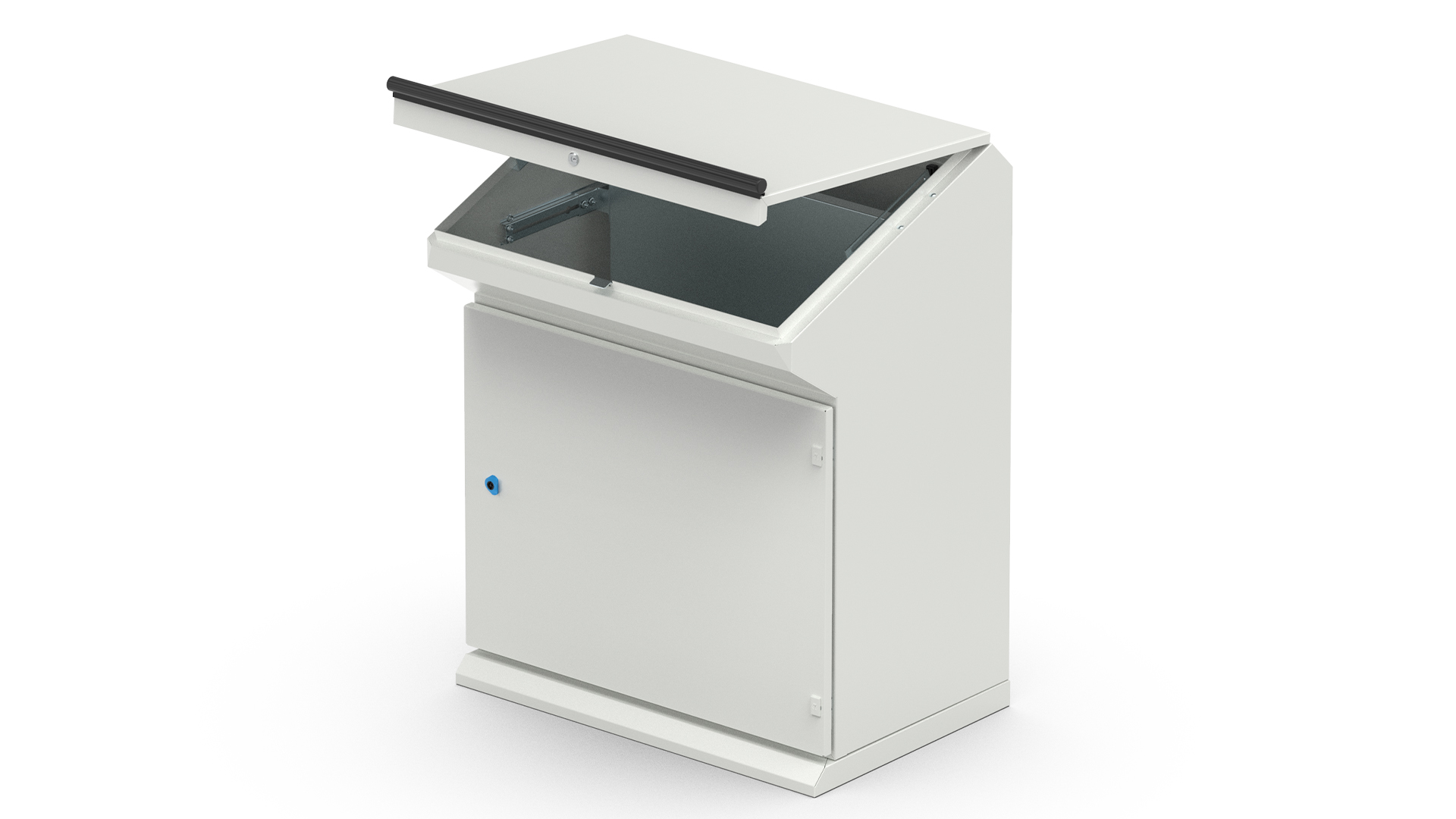

PT Series is developed for machine and process-control applications where operator interfaces and electrical equipment need to be integrated within a single console. The inclined upper section provides a practical area for push-buttons, indicators and HMI equipment, while the lower enclosure accommodates control components and internal assemblies.

PT Series Enclosures / Operating Consoles

Material

Sheet Steel (EN 10130 DC01)
- Body : 1.2 / 1.5 mm
- Door : 2 mm
- Plinth : 2 mm
Galvanized Steel (EN 10346 DX51D+Z)
- Mounting plate : 2 mm

Surface Finishing

RAL7035w powder coating

IP Rating

IP54 (TS 3033, EN 60529) (PT)

Others

Foamed-in door PU sealing gasket

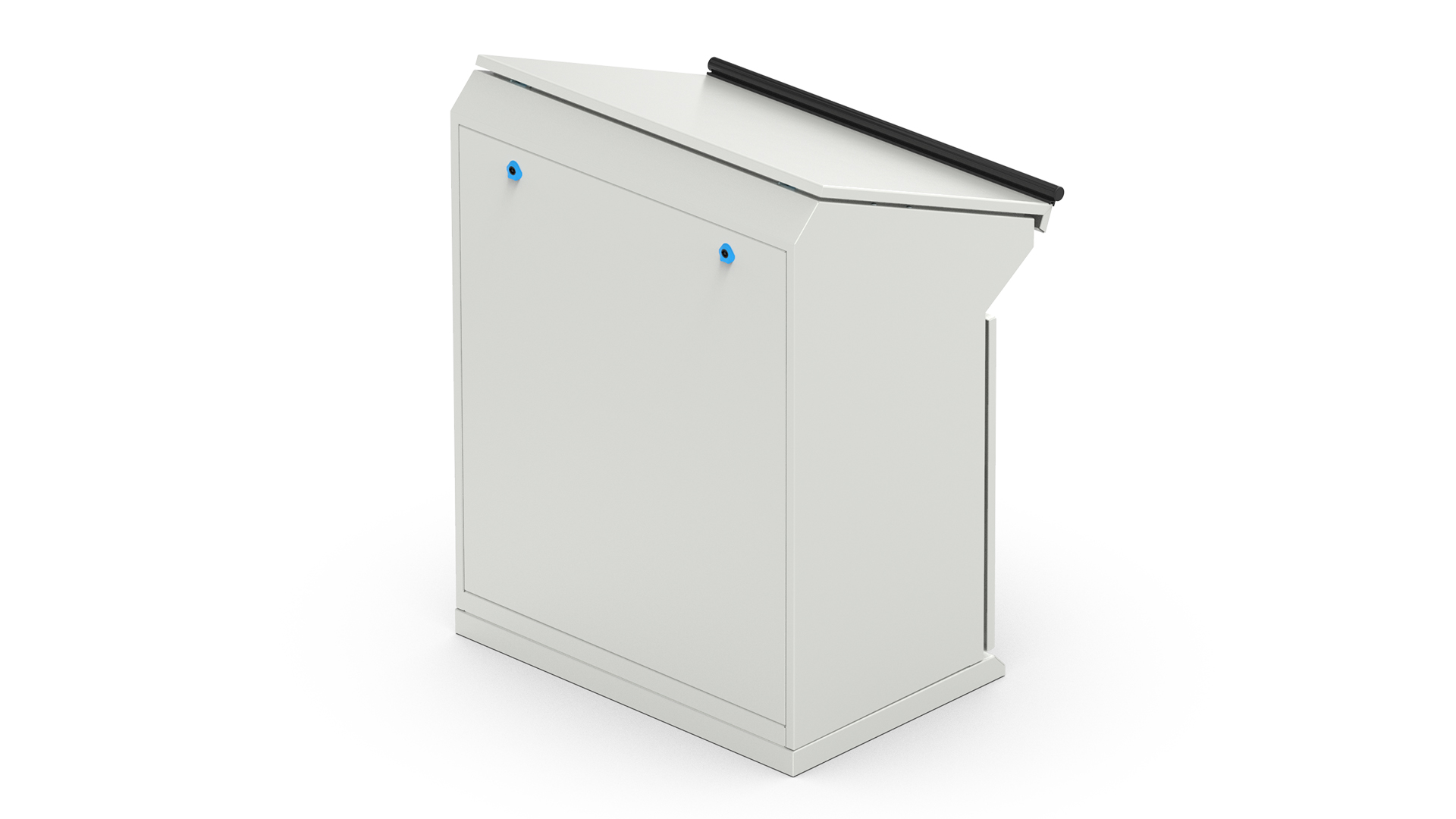

Removable rear panel
Depth adjustable mounting plate
Top lid stopper
Facility for double mounting plate

On Request

Custom sizes
Custom colour
Pre-punching
Special mounting plate

Supply Includes

Body
Door and lids
Plinth
Mounting plate

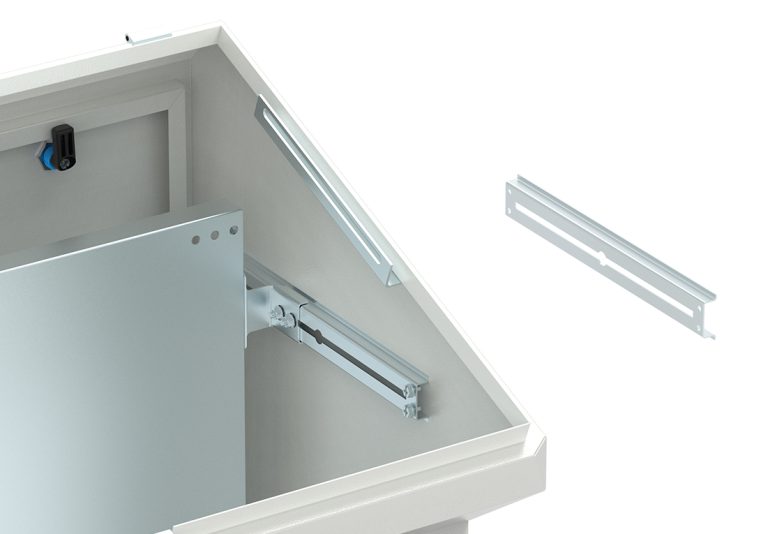

4 pcs side rails

Complementary Accessories

Door inside mounting profile
Plan pocket
Earthing cable
Handle

Similar Products

PTE Series Enclosures

PY Series Enclosures

Panel System TP150

Panel System TP090

PPC Series Enclosures

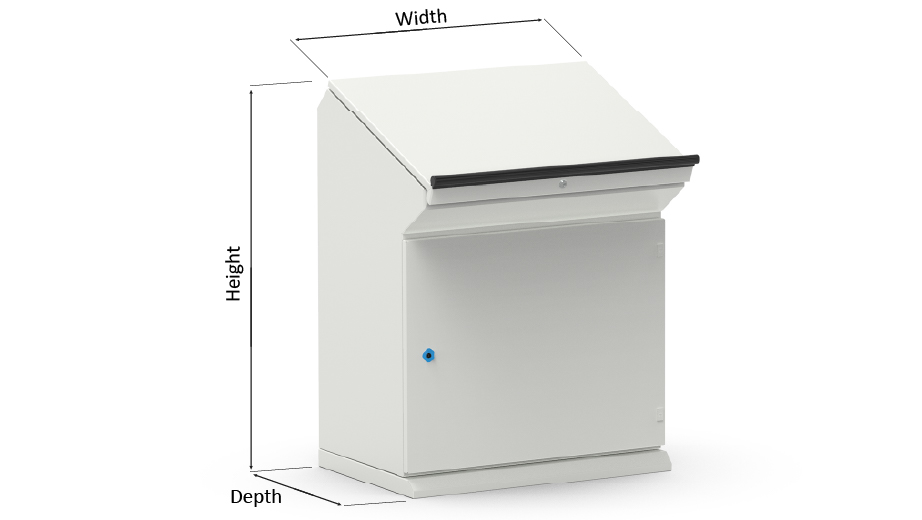

Width

Height

Depth

Reference

Lower Door

Removable Rear Panel

Useful Area

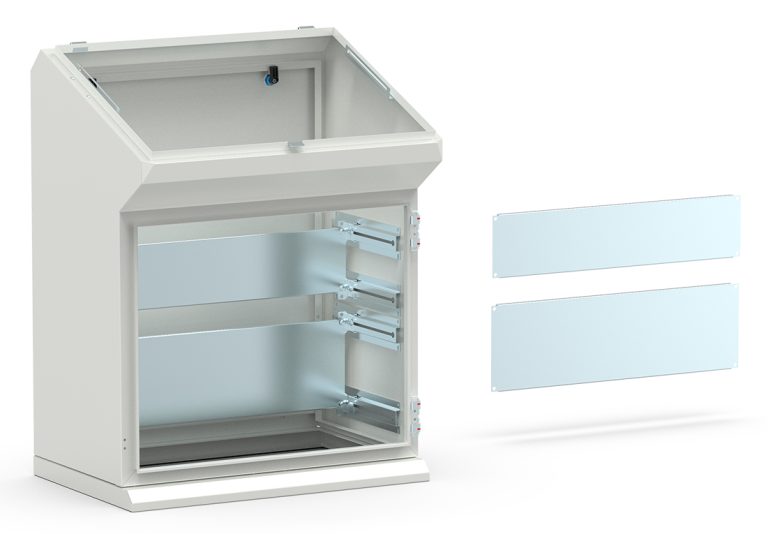

Mounting Plate

Weight

Top Lid

Lower Door

Rear Panel

↔
mm

↕
mm

↔
mm

↕
mm

↔
mm

↕
mm

↔
mm

↕
mm

pcs

600	1065	400	PT 061040	1	1	495	370	420	420	500	790	500	800	49.8
600	1065	500	PT 061050	1	1	495	470	420	420	500	790	500	800	54.7
800	1065	500	PT 081050	1	1	695	470	620	420	700	790	700	800	65.0
800	1065	600	PT 081060	1	1	695	570	620	420	700	790	700	800	69.8
1000	1065	500	PT 101050	2	1	895	470	320 + 320	420	900	790	900	800	75.6
1000	1065	600	PT 101060	2	1	895	570	320 + 320	420	900	790	900	800	81.2
1200	1065	600	PT 121060	2	1	1095	570	420 + 420	420	1100	790	1100	800	91.6

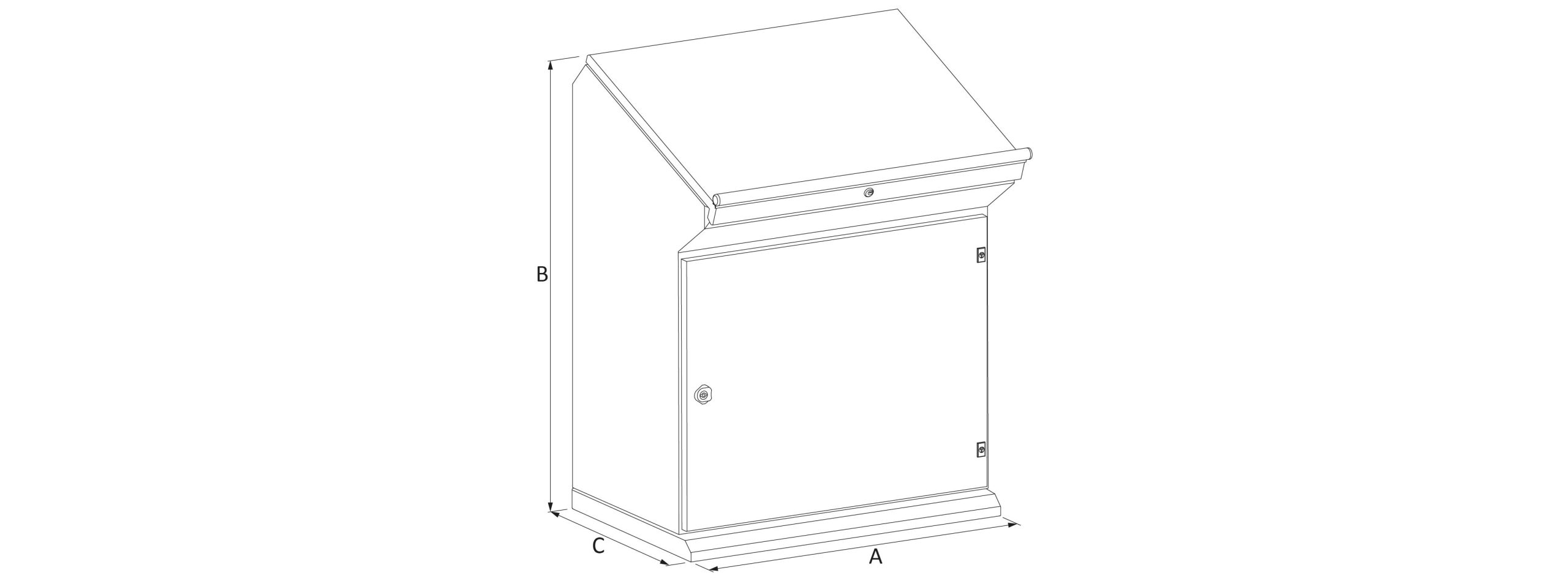

Dimensions

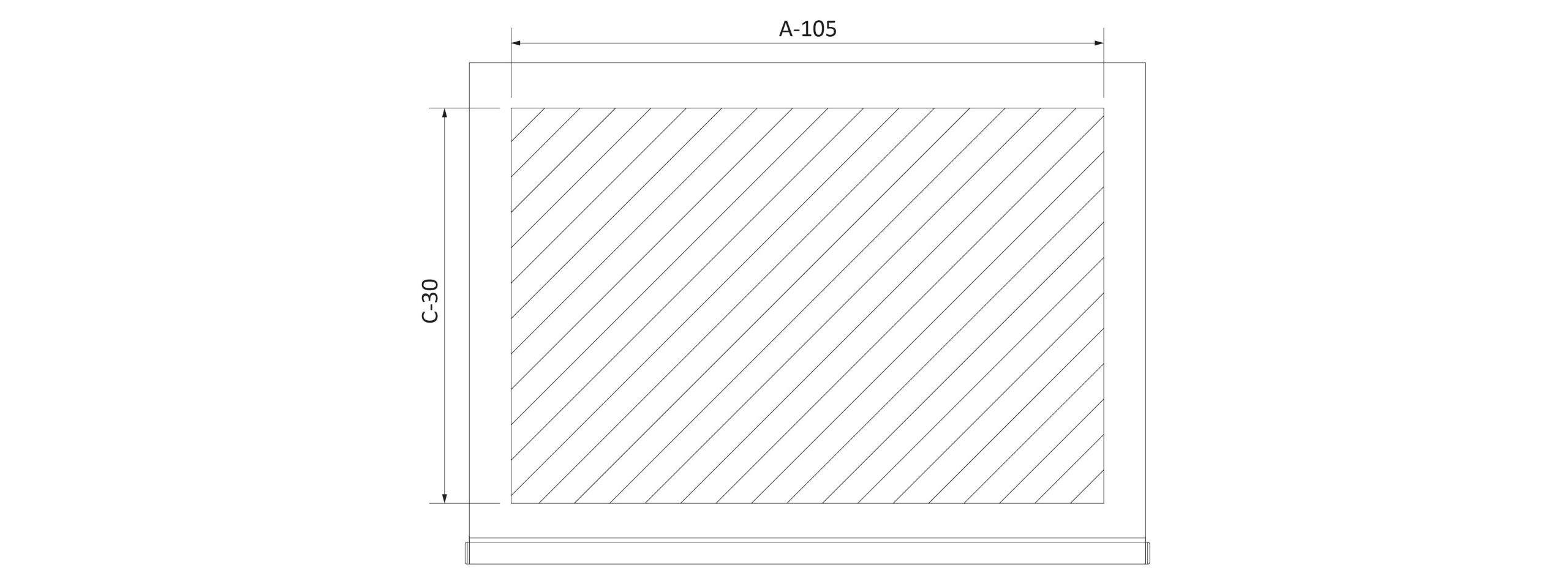

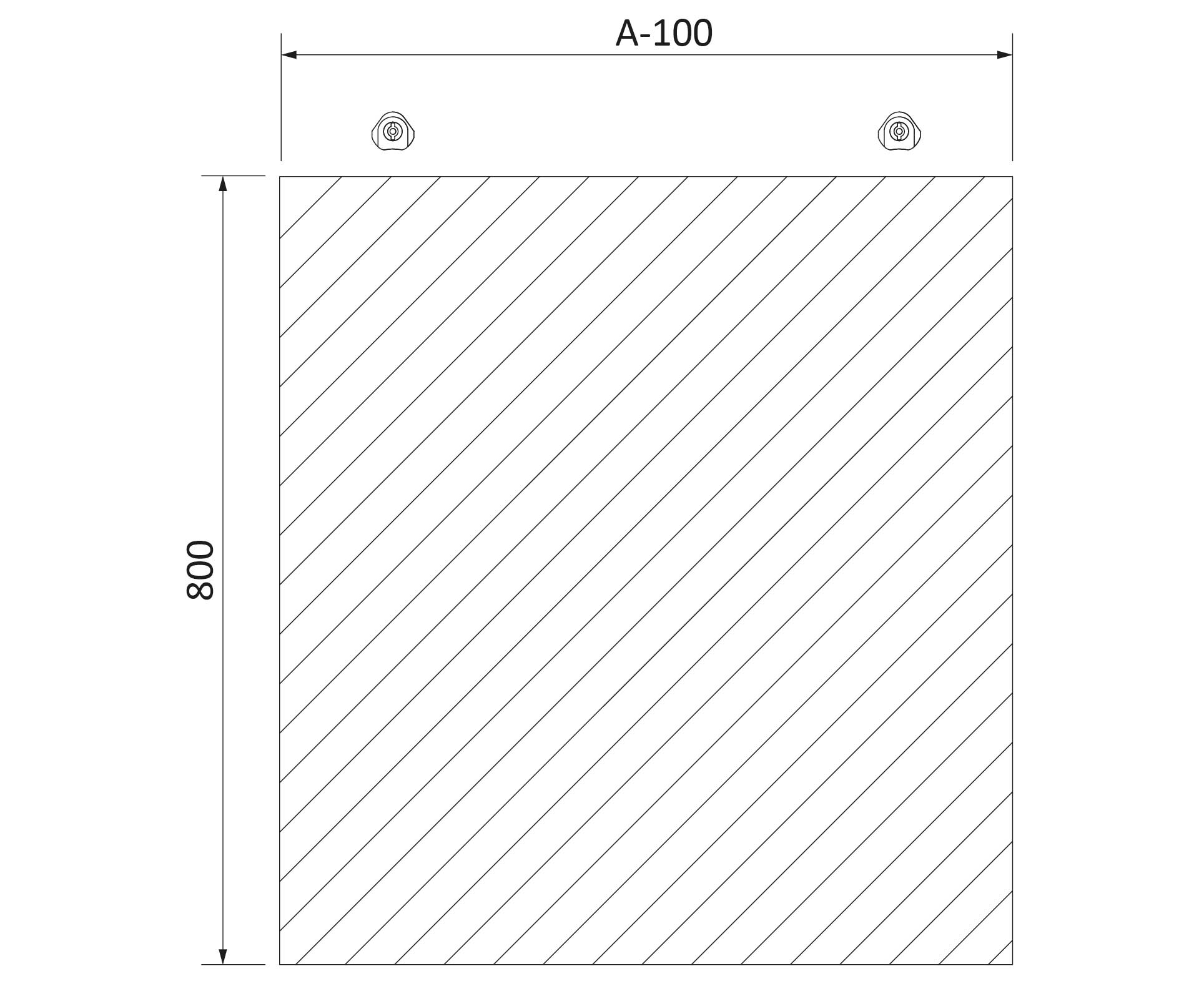

Rear Panel Useful Area

Mounting Plate

Lower Door Useful Area

Top Lid Useful Area

Dimensions

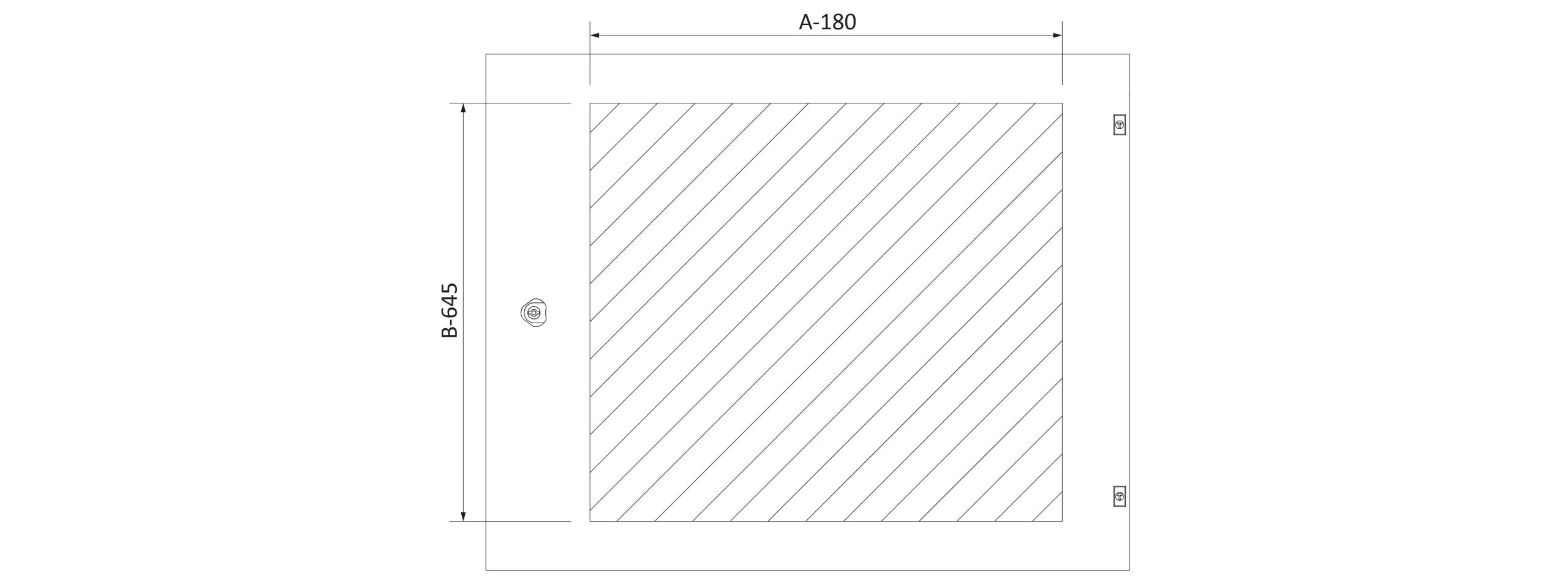

Rear Panel Useful Area

Mounting Plate

Lower Door Useful Area

Top Lid Useful Area

Reference	Width	Depth	Wide	Length	Useful Area		Lid	Lock Type	Hinge	Weight
	A mm	C mm	X1 mm	Y1 mm	W1 mm	D1 mm
							pcs	*	pcs	kg

PT TAV0640	600	400	596	511	495	370	1	C	2	3.6
PT TAV0650	600	500	596	611	495	470	1	C	2	4.3
PT TAV0850	800	500	796	611	695	470	1	C	2	5.8
PT TAV0860	800	600	796	711	695	570	1	C	2	6.7
PT TAV1050	1000	500	996	611	895	470	1	C	2	7.3
PT TAV1060	1000	600	996	711	895	570	1	C	2	8.4
PT TAV1260	1200	600	1196	711	1095	570	1	C	2	10.2

Dimensions

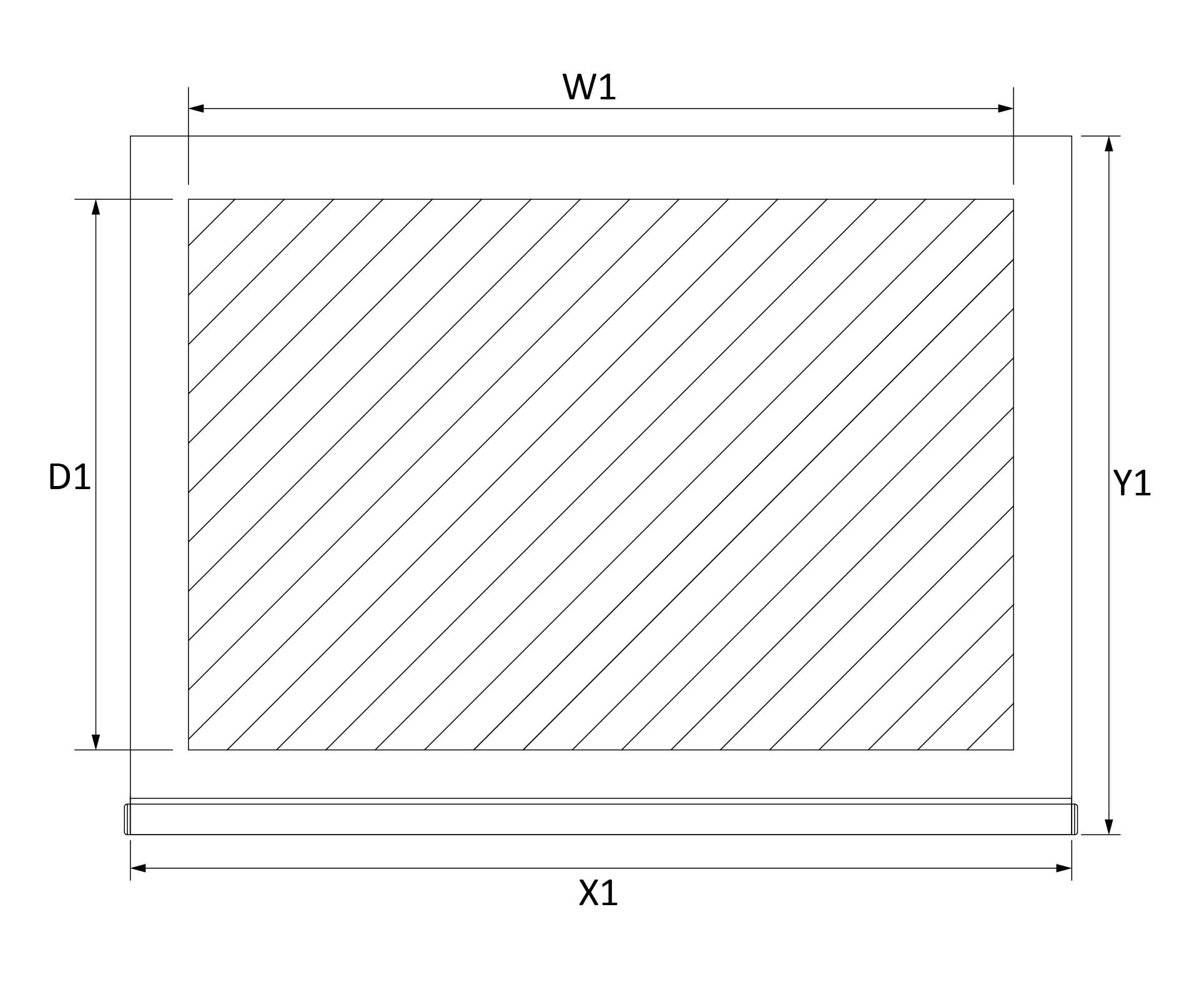

Top Lid

Dimensions

Top Lid

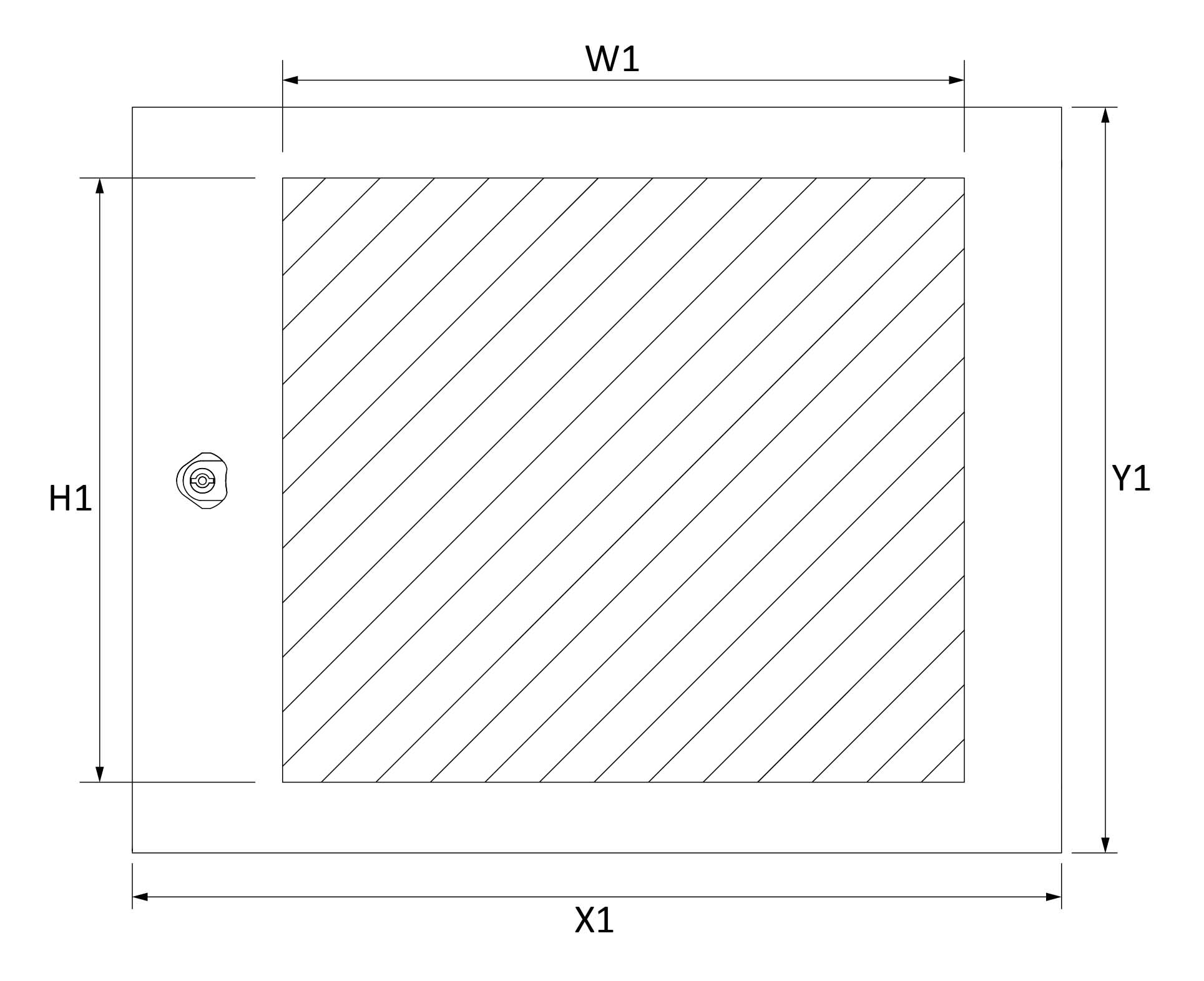

Reference	Width	Height	Wide	Length	Useful Area		Door	Lock Type	Hinge	Weight
	A mm	B mm	X1 mm	Y1 mm	W1 mm	H1 mm
							pcs	*	pcs	kg

PT KP0610	600	1065	580	625	420	420	1	C	2	5.8
PT KP0810	800	1065	780	625	620	420	1	C	2	7.8
PT KP1010	1000	1065	490 + 490	625	320 + 320	420	2	C	4	9.8
PT KP1210	1200	1065	590 + 590	625	420 + 420	420	2	C	4	11.8

Dimensions

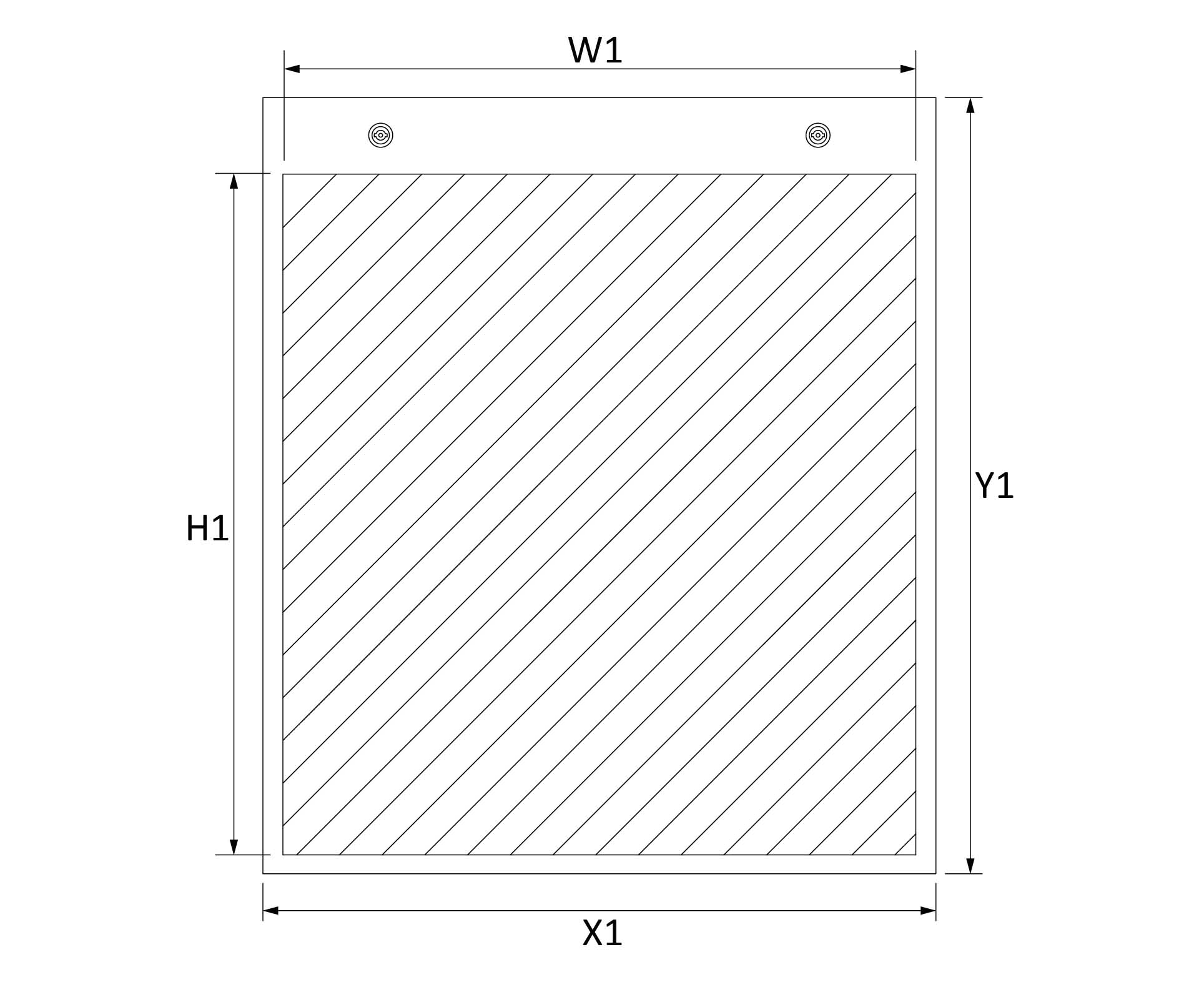

Lower Door

Dimensions

Lower Door

Reference	Width	Height	Wide	Length	Connection			Connection	Weight
	A mm	B mm	X1 mm	Y1 mm	X2 mm	Y2 mm	X3 mm	n
								pcs	kg

AS TS 0609	600	1065	500	800	441	680	420	4	7.8
AS TS 0809	800	1065	700	800	641	680	620	4	10.5
AS TS 1009	1000	1065	900	800	841	680	820	6	27.2
AS TS 1209	1200	1065	1100	800	1041	680	1020	6	36.6

Dimensions

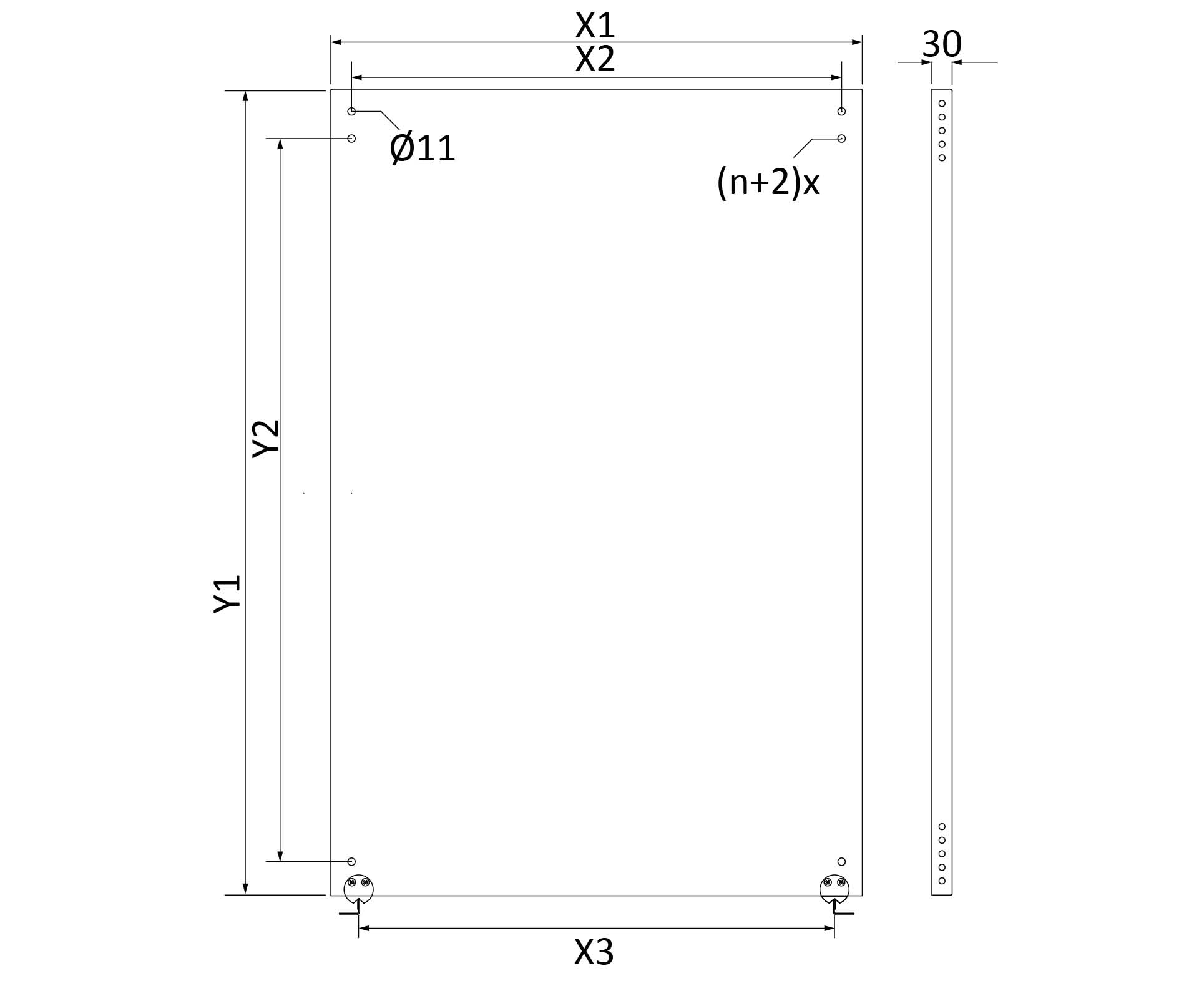

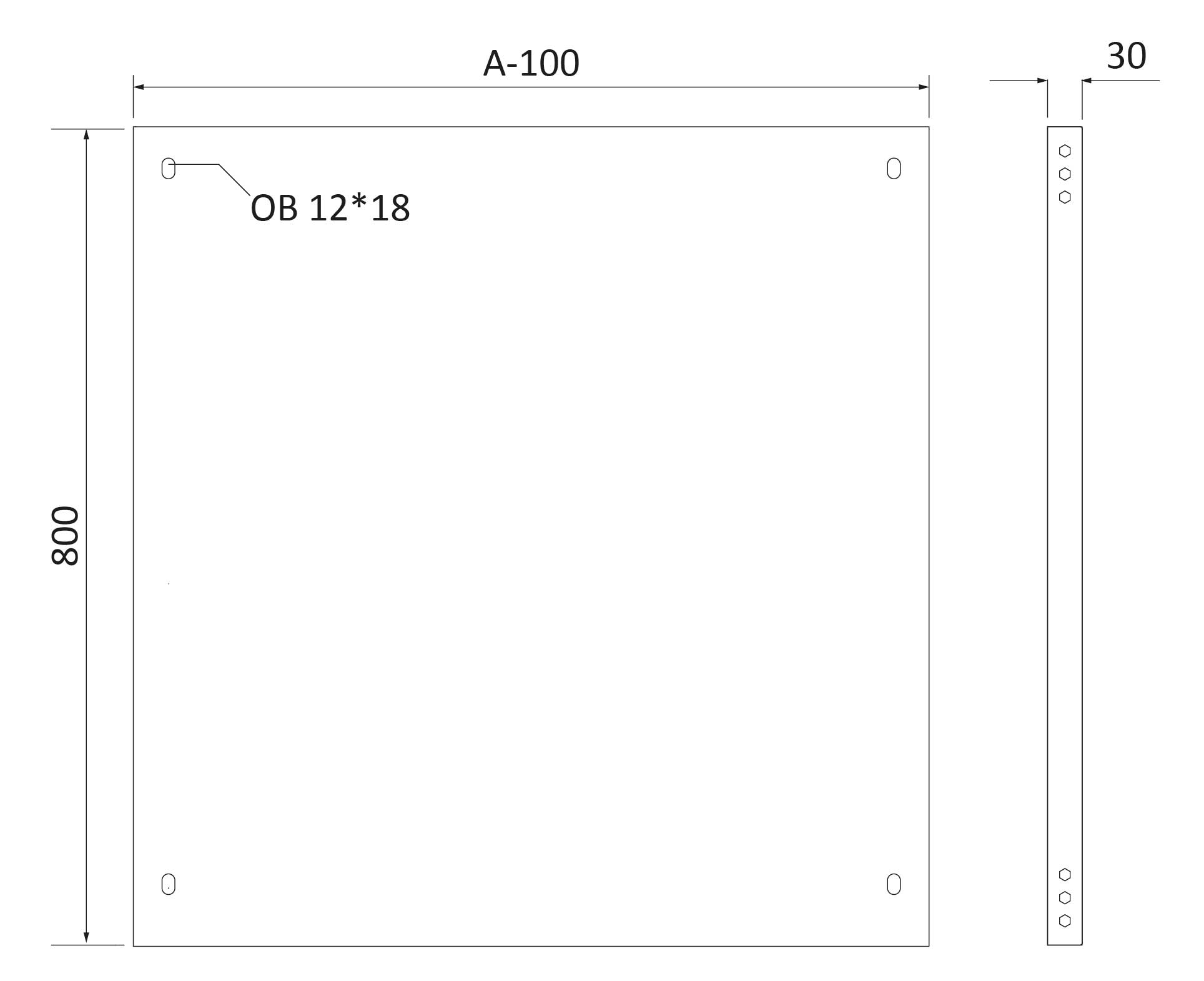

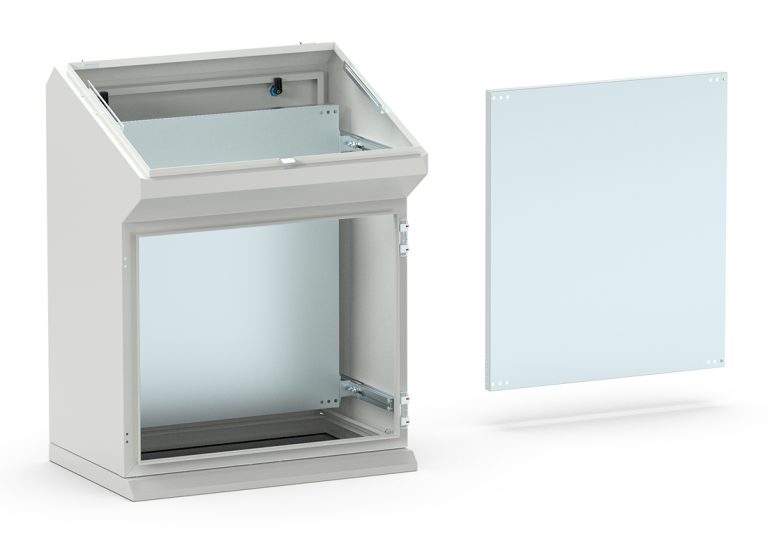

Mounting Plate

Dimensions

Mounting Plate

Reference	Width	Height	Wide	Length	Useful Area		Rear Panel	Lock	Lock Type	Weight
	A mm	B mm	X1 mm	Y1 mm	W1 mm	H1 mm
							pcs	pcs	*	kg
