PPC Series Enclosures
- Material
- Sheet Steel (EN 10130 DC01)
- Frame : 1.5 mm
- Door : 1.5 mm
- Plinth : 2 mm
- Surface Finishing
- RAL7035w powder coating
- Others
- Multi purpose prime frame
- Glazed security door for monitor viewing
- Lockable folding keyboard panel
- Lockable and removable rear panel
- Vented removable side panels
- Adjustable monitor shelf
- Vented dust protection hood
- Optional hinged rear door
- Optional filter or fan fitted, brushed cable entry or perforated cover plates

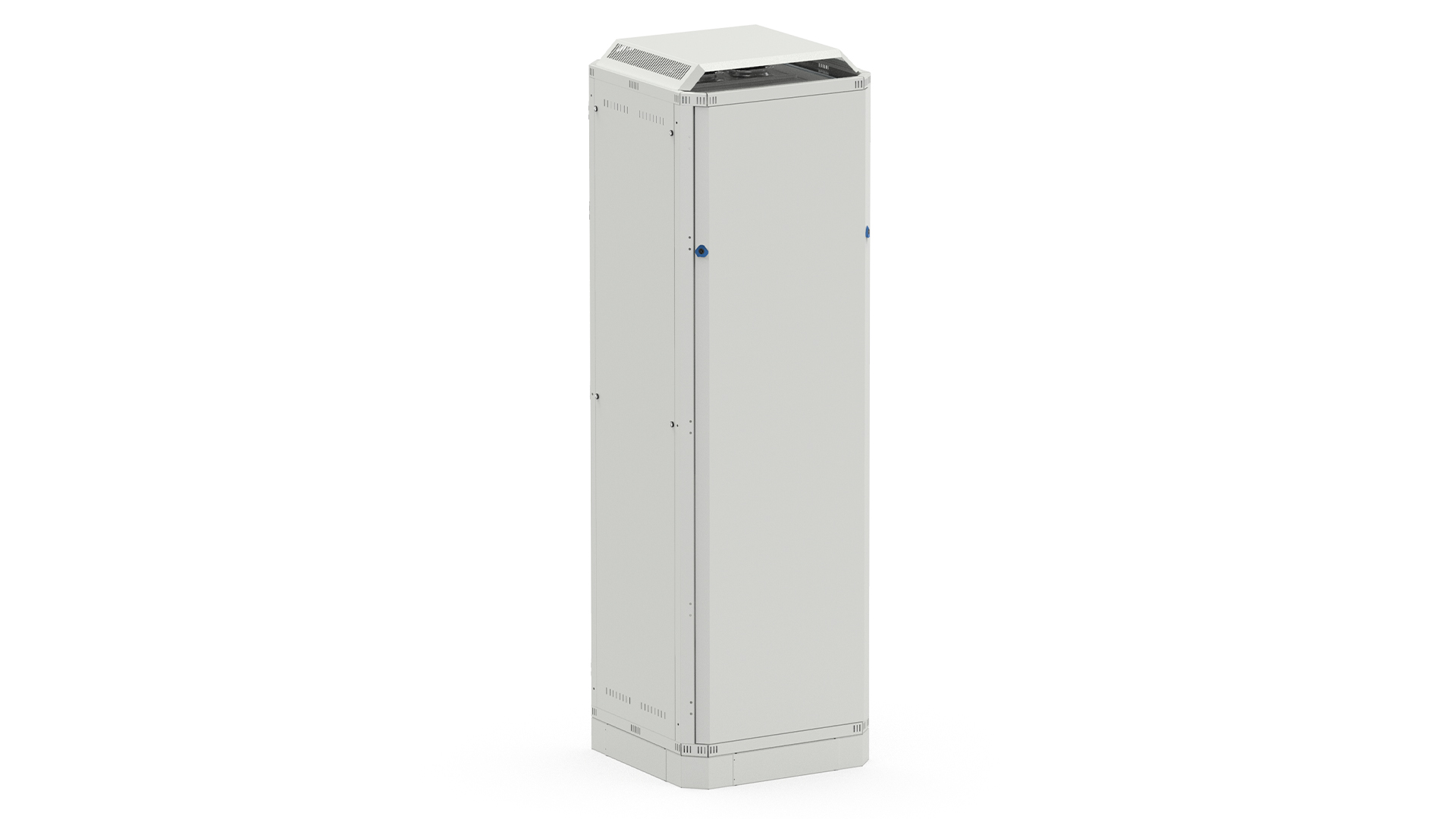

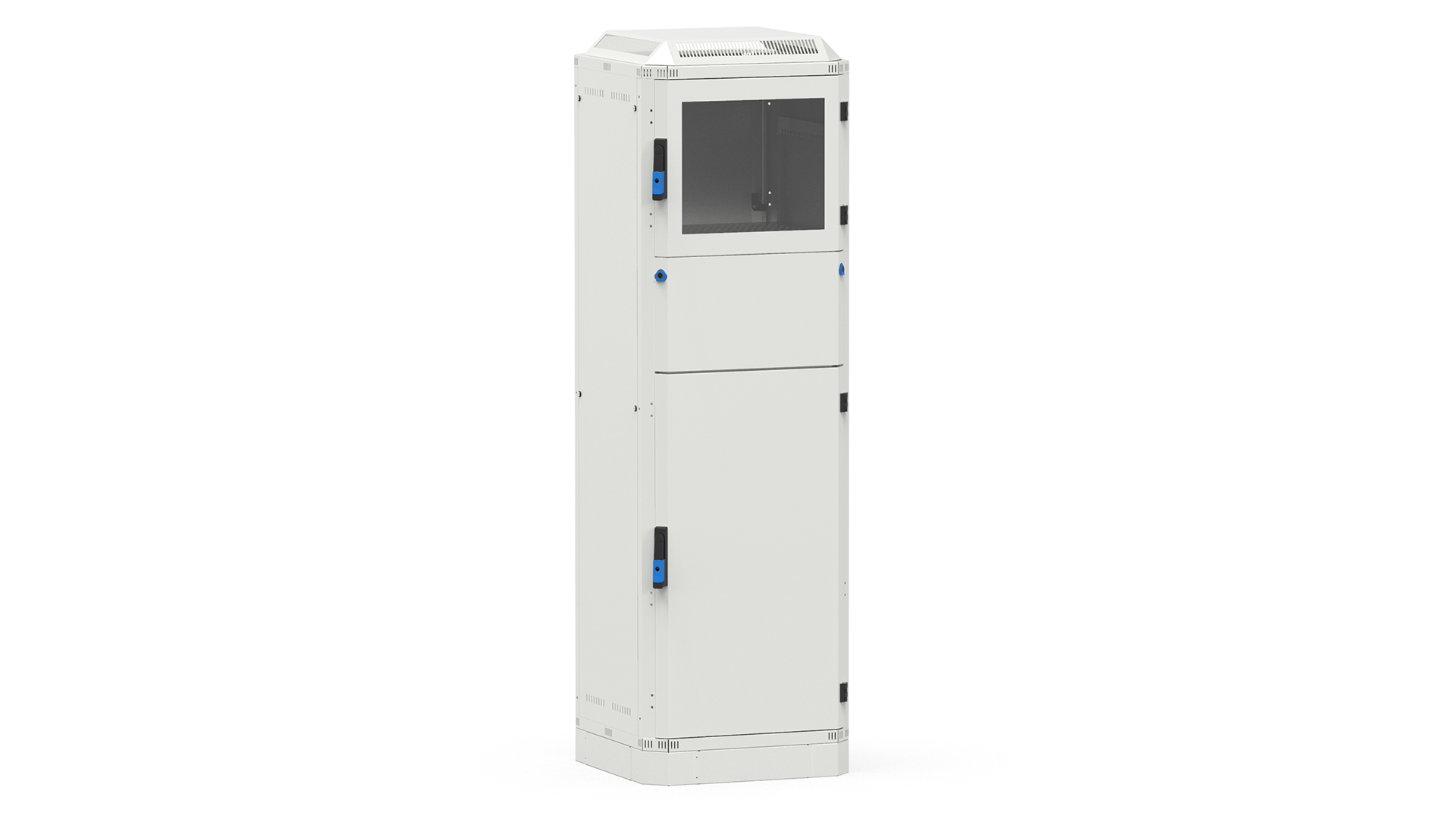

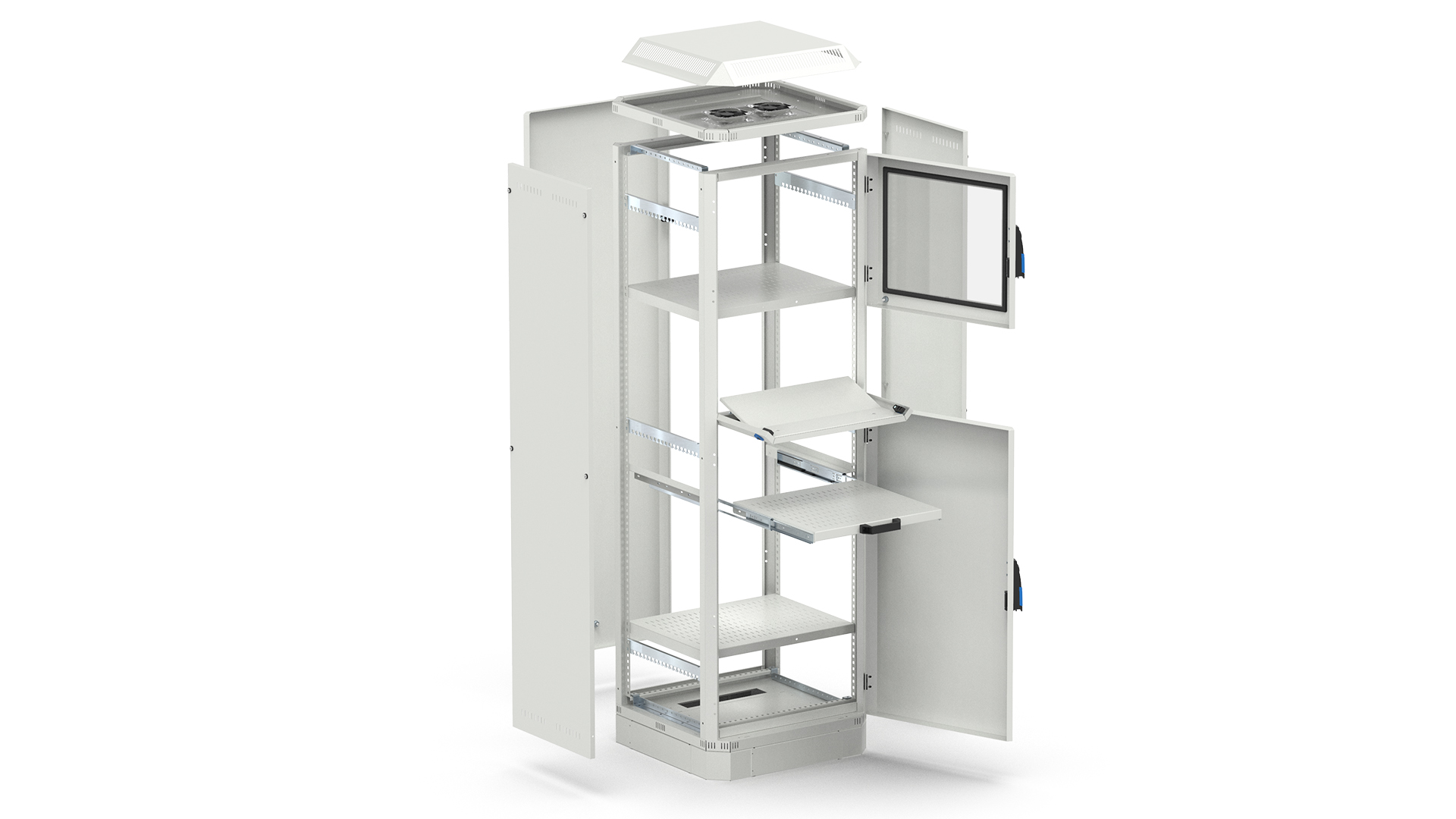

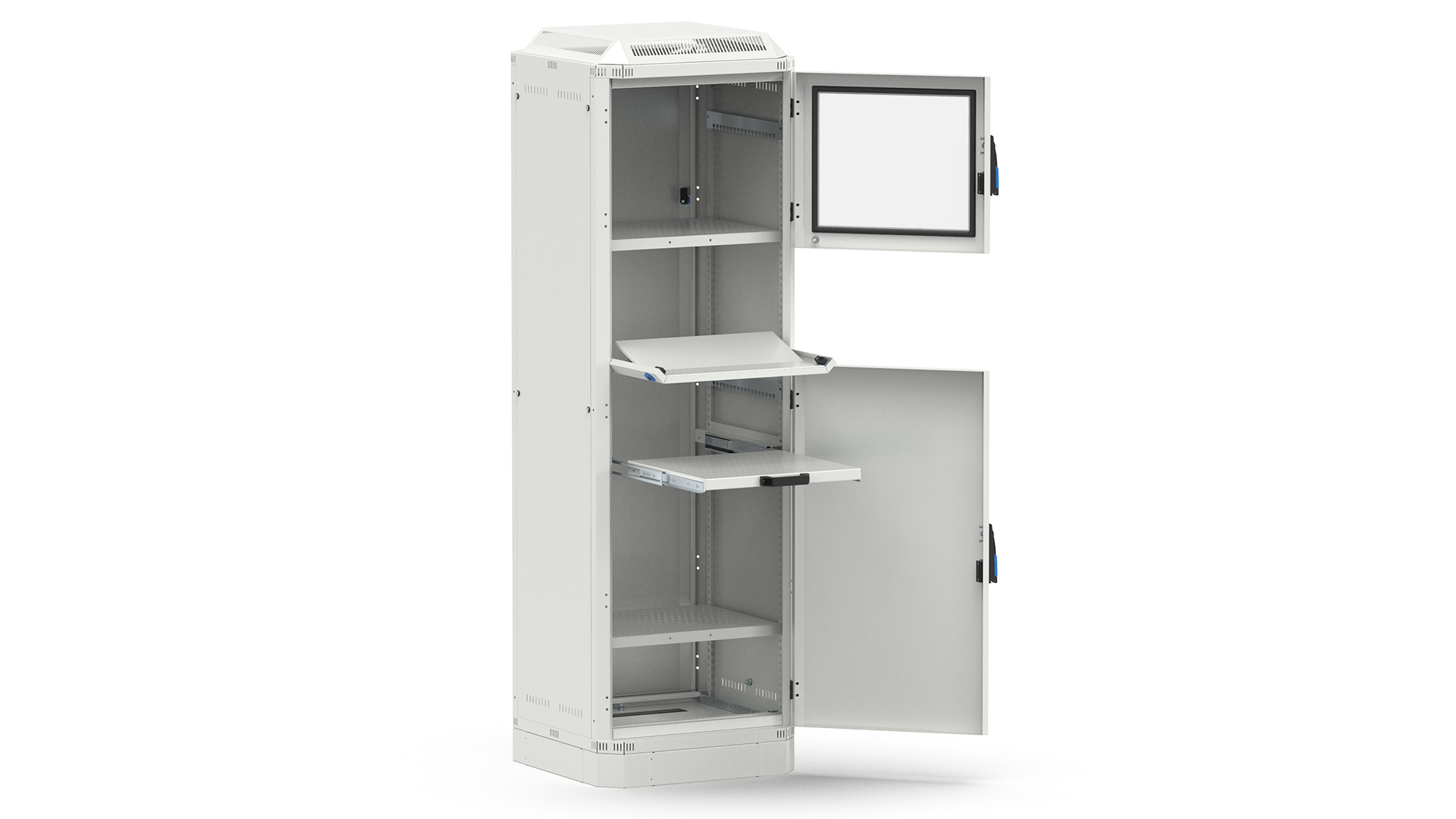

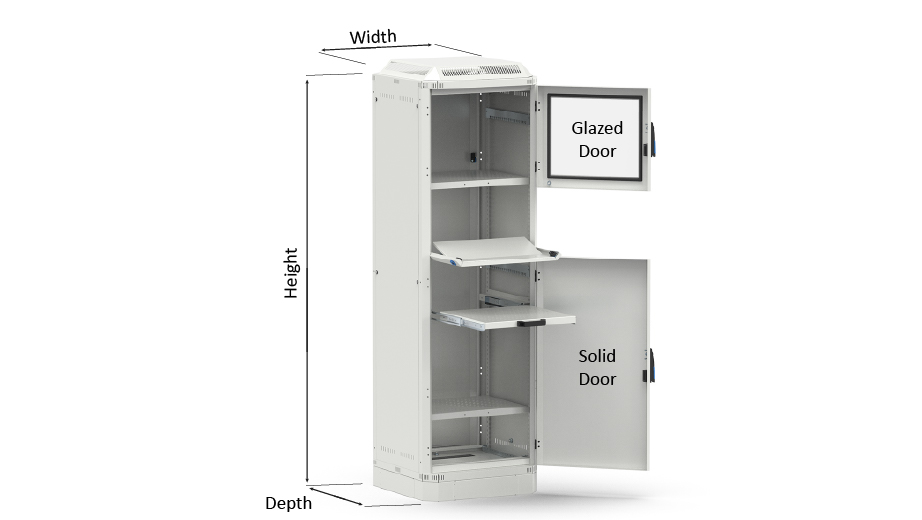

PPC Series Enclosures are designed for industrial computer and workstation applications that require dedicated areas for monitor viewing, keyboard operation, and supporting equipment. Featuring a Prime Line industrial PC cabinet construction that separates the monitor and keyboard access from the industrial computer equipment, these enclosures provide separate spaces for operators and equipment, making them an ideal solution for manufacturing, monitoring, and harsh industrial environments where traditional office furniture is not suitable.
PPC Series Enclosures / PC Cabinets
- Material
- Sheet Steel (EN 10130 DC01)
- Frame : 1.5 mm
- Door : 1.5 mm
- Plinth : 2 mm
- Surface Finishing
- RAL7035w powder coating
- Others
- Multi purpose prime frame
- Glazed security door for monitor viewing
- Lockable folding keyboard panel
- Lockable and removable rear panel
- Vented removable side panels
- Adjustable monitor shelf
- Vented dust protection hood
- Optional hinged rear door
- Optional filter or fan fitted, brushed cable entry or perforated cover plates
- On Request
- Custom sizes
- Custom colour
- Pre-punching
- Special mounting plate
- Special Racks

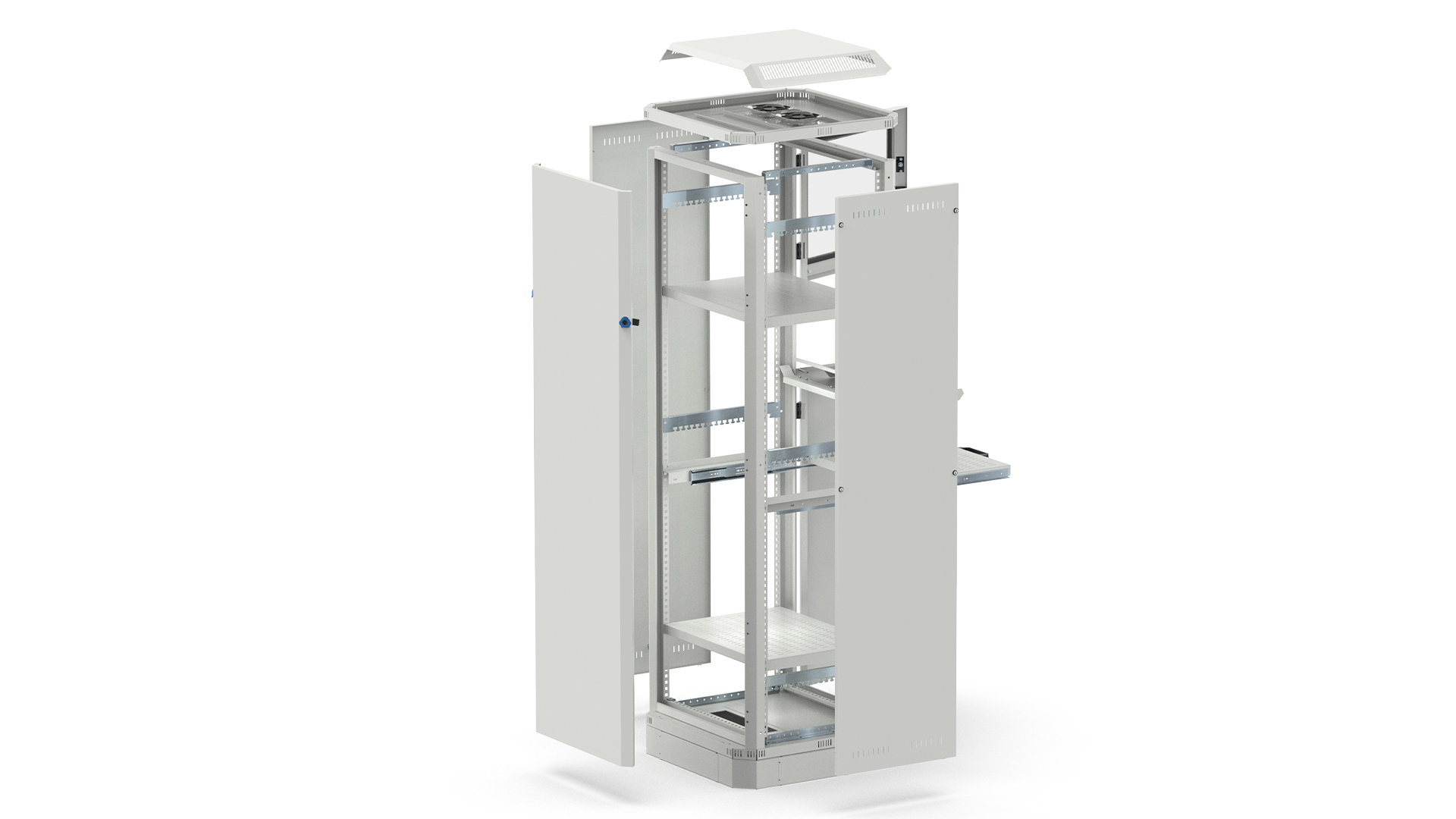

- Supply Includes
- Front and rear frame
- Door and rear panel
- Plinth
- Side panels
- Vented dust protection hood
- Complementary Accessories
- Levelling feet
- Castor
- Top protection plate
- Top and bottom partial cover plates
- Power distribution unit
- Pull out printer shelf
- Adjustable perforated shelf
- Pull out perforated shelf
- Cable clamp profile

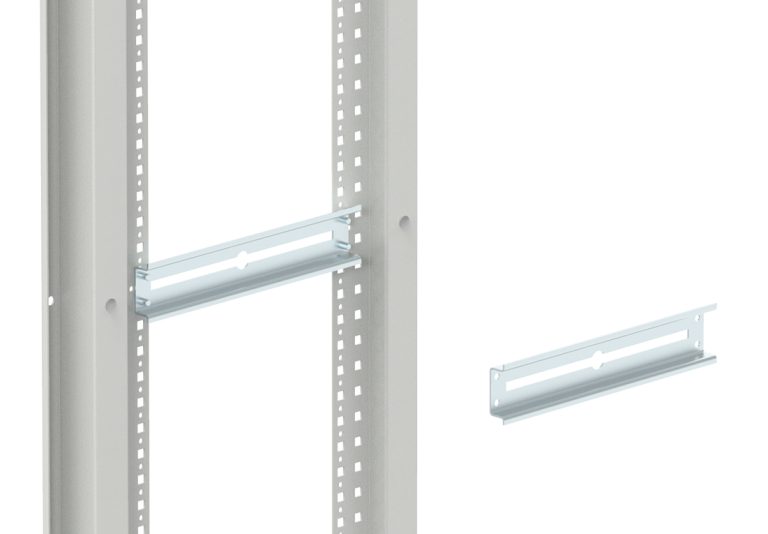

- Side rail
- Plan pocket
- Locks
- Earthing cable

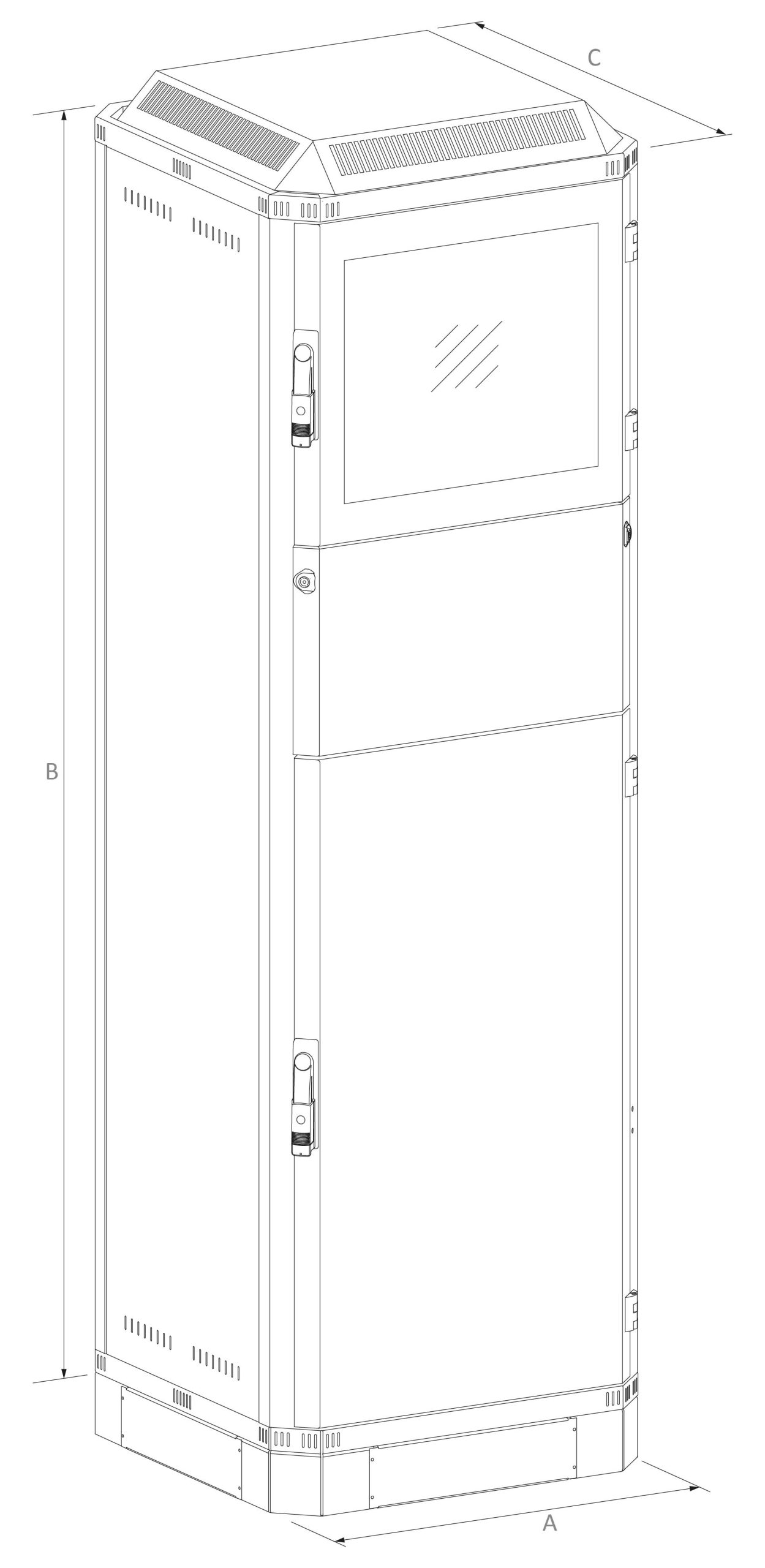

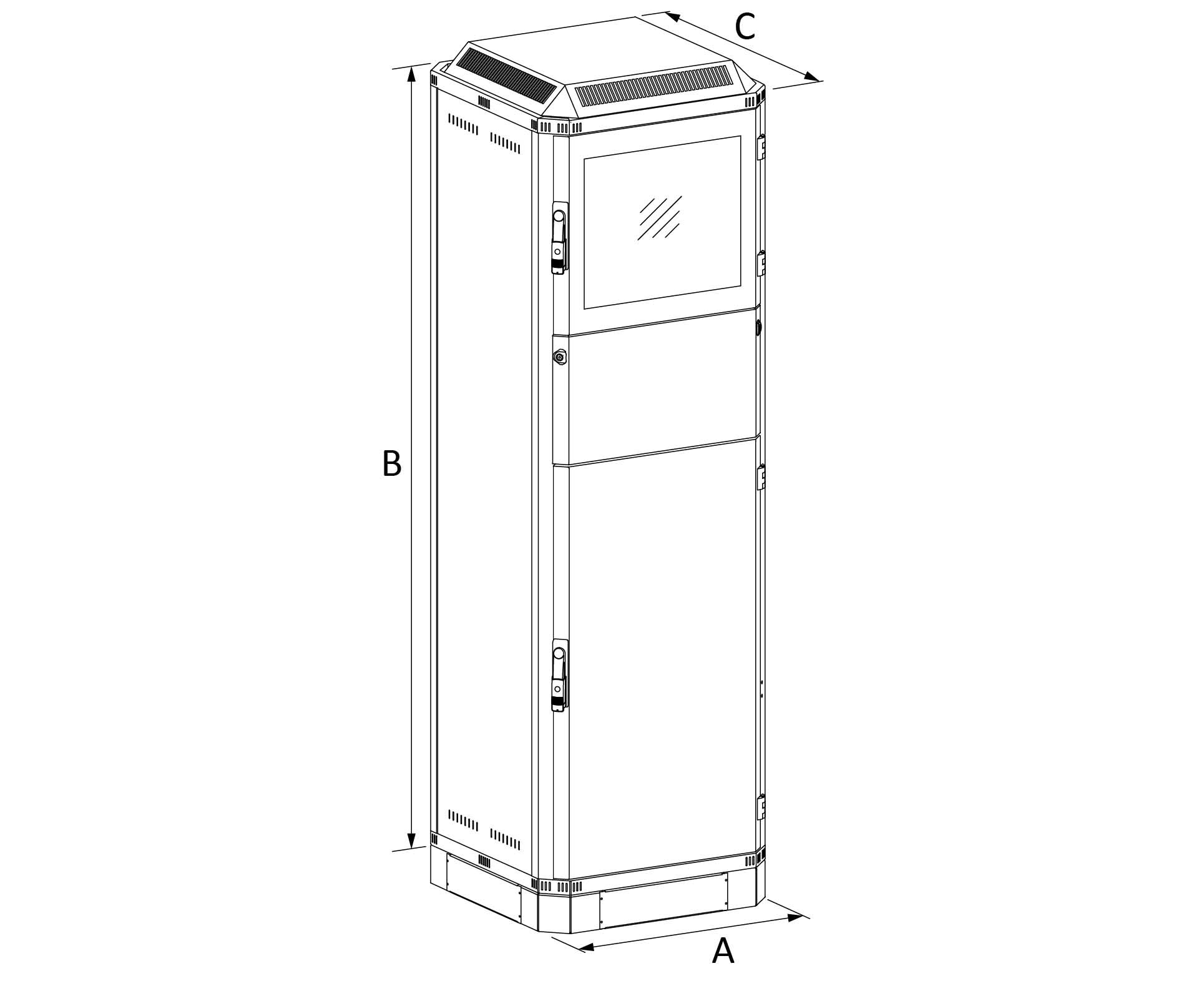

| Width | Height | Depth | Reference | Apparent Area | Useful Area | ||||||
| A | B | C | Monitor Door | Lower Door | Side Panel | Lock In Door | |||||
| ↔ mm | ↕ mm | ↔ mm | ↕ mm | ↕ mm | ⤢ mm | ↔ mm | ↕ mm | ||||
| mm | mm | mm | |||||||||
| 600 | 850 | 600 | PPC 060806 | 410 | 355 | — | — | 742 | 388 | 460 | 728 |
| 600 | 1515 | 600 | PPC 061506 | 410 | 355 | 420 | 420 | 1320 | 388 | 460 | 1393 |
| 600 | 1825 | 600 | PPC 061806 | 410 | 355 | 420 | 720 | 1620 | 388 | 460 | 1703 |
| 600 | 1825 | 800 | PPC 061808 | 410 | 355 | 420 | 720 | 1620 | 588 | 460 | 1703 |
| 800 | 850 | 600 | PPC 080806 | 610 | 355 | — | — | 742 | 388 | 660 | 728 |
| 800 | 1515 | 600 | PPC 081506 | 610 | 355 | 620 | 420 | 1320 | 388 | 660 | 1393 |
| 800 | 1825 | 600 | PPC 081806 | 610 | 355 | 620 | 720 | 1620 | 388 | 660 | 1703 |
| 800 | 1825 | 800 | PPC 081808 | 610 | 355 | 620 | 720 | 1620 | 588 | 660 | 1703 |
No Result Found

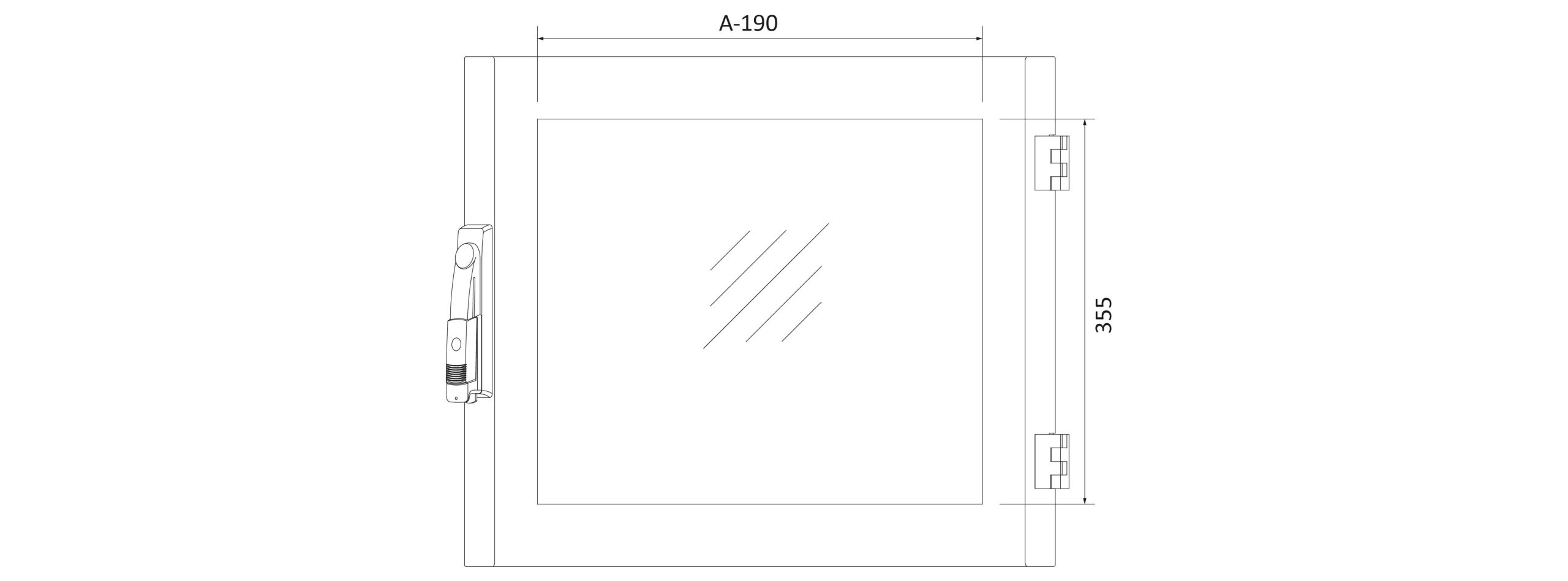

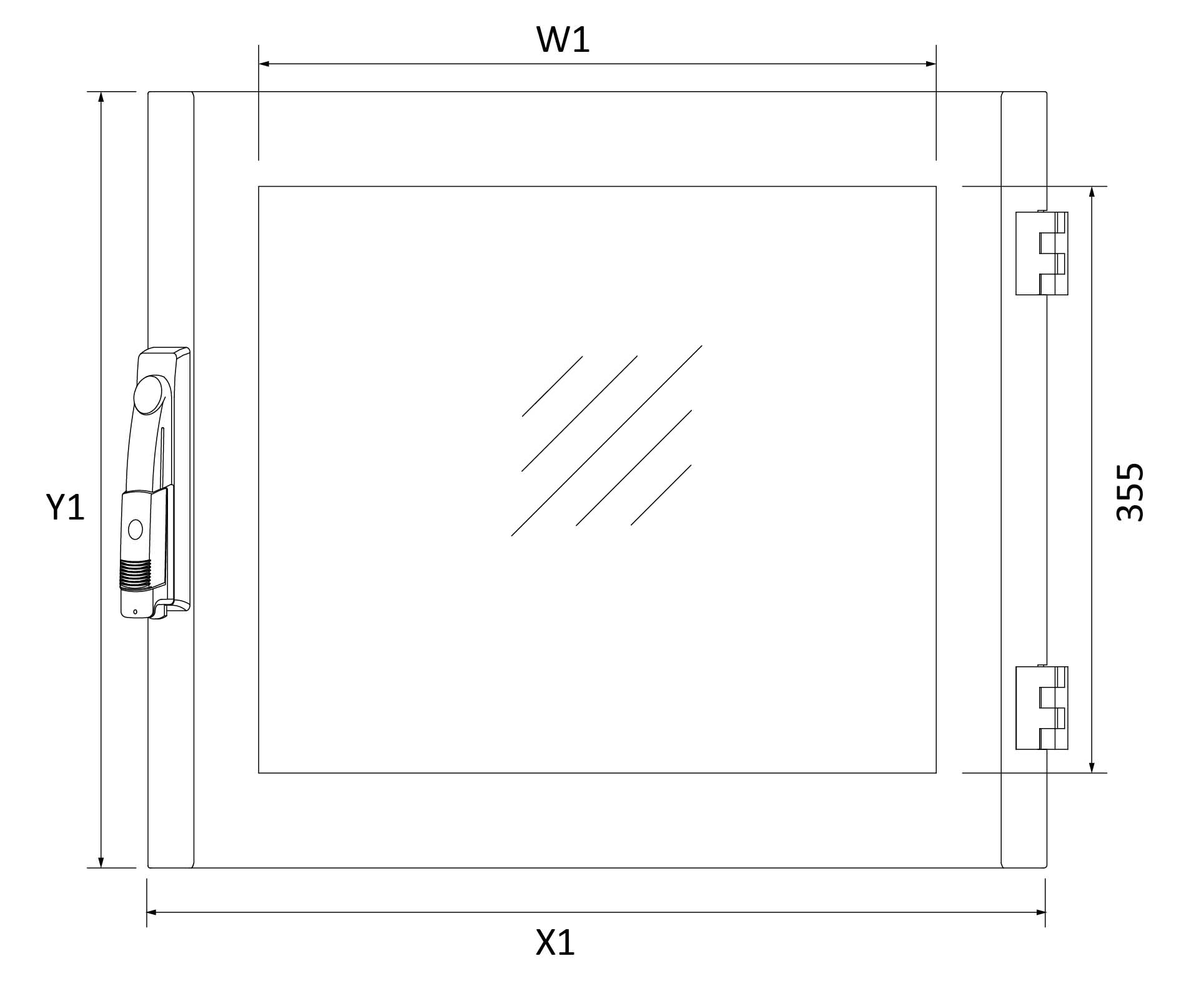

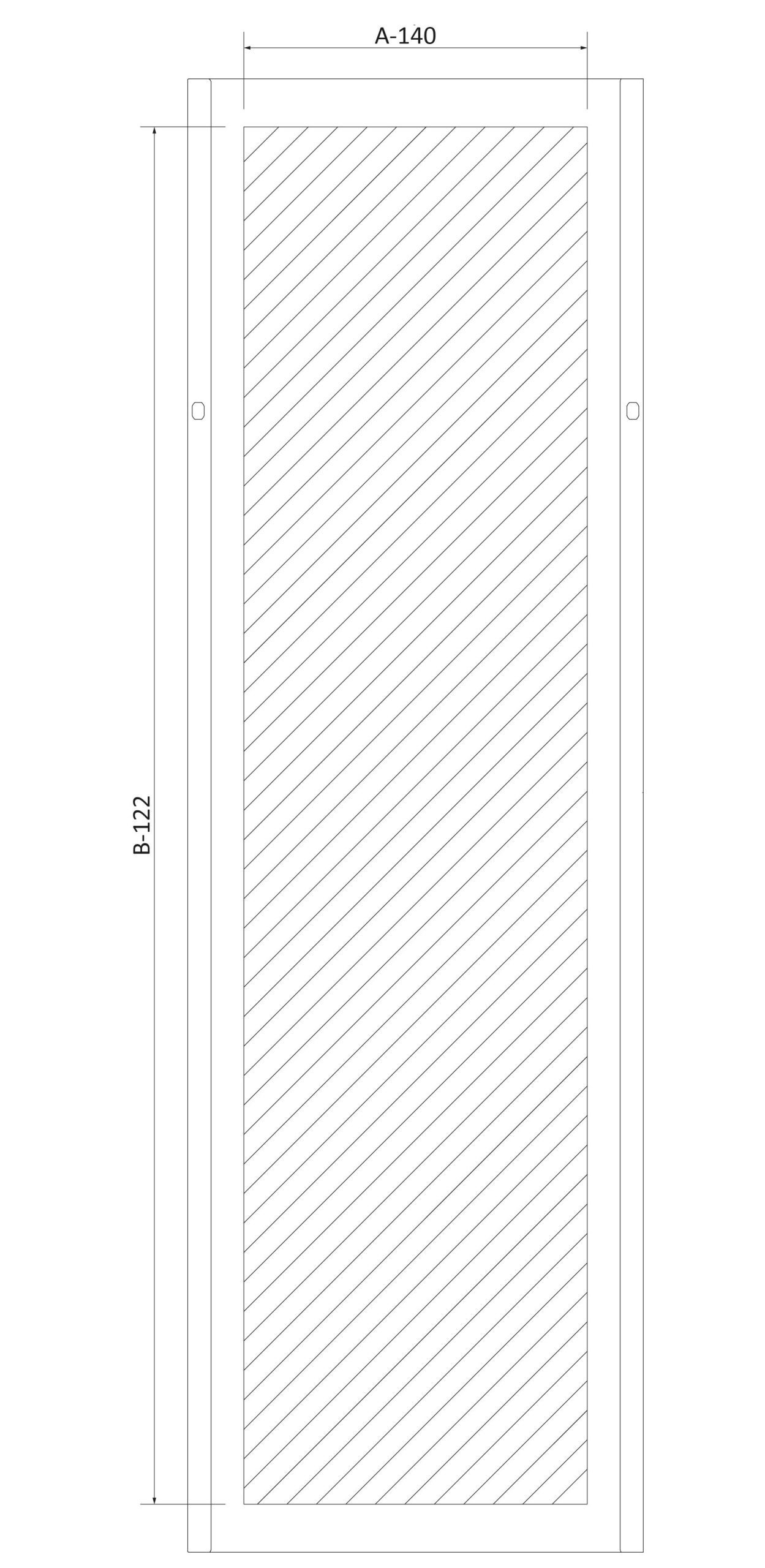

| Reference | Width | Height | Wide | Length | Apparent Area | Lock Type | Lock | Hinge | Weight | |
| A | B | |||||||||
| X1 mm | Y1 mm | W1 mm | H1 mm | |||||||
| mm | mm | * | pcs | pcs | kg | |||||
| PPC KC0605 | 600 | 850 | 554 | 470 | 410 | 355 | I | 1 | 2 | 3.1 |
| PPC KC0805 | 800 | 850 | 744 | 470 | 610 | 355 | I | 1 | 2 | 4.1 |

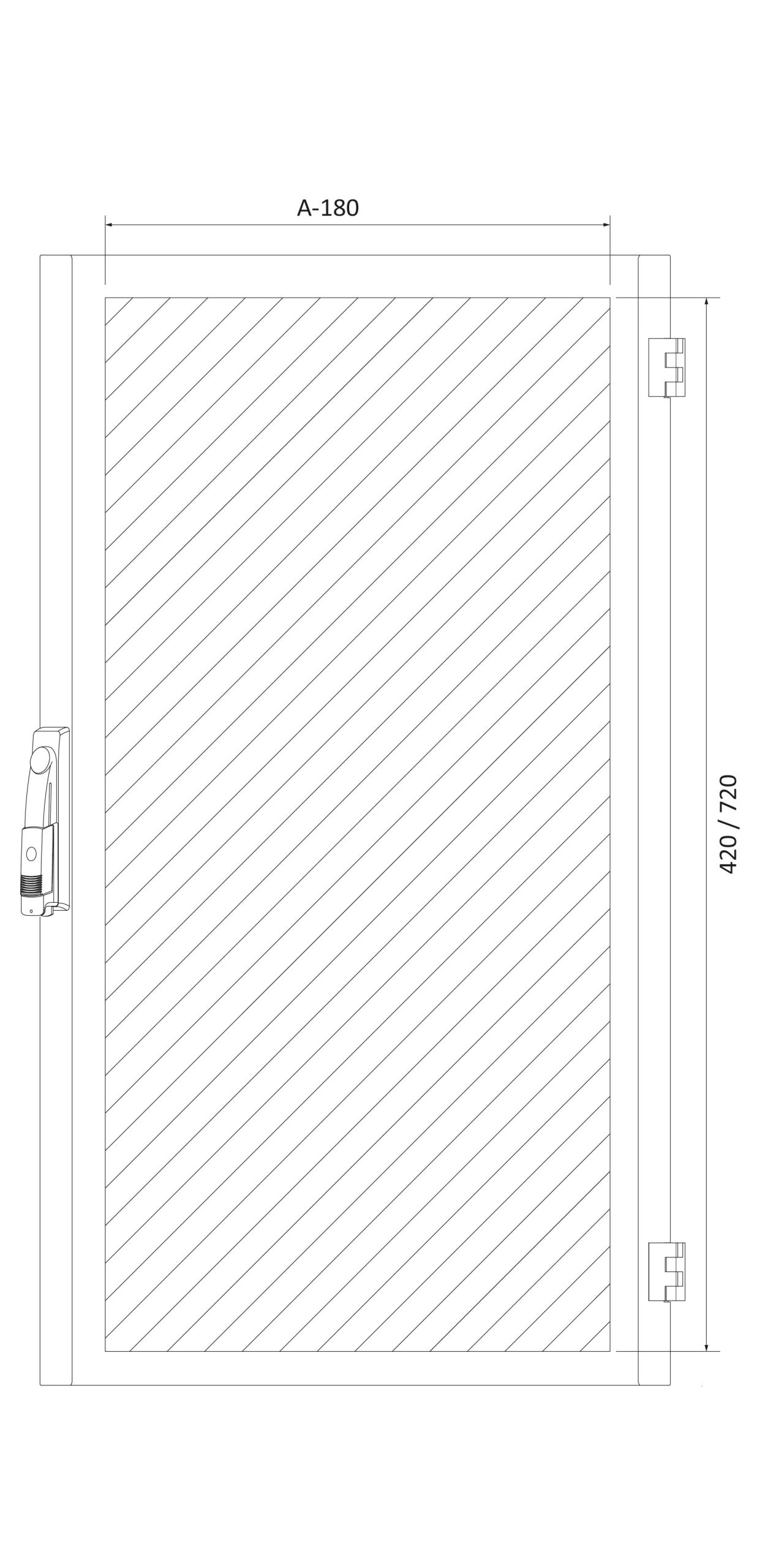

| Reference | Width | Height | Wide | Length | Useful Area | Lock Type | Lock | Hinge | Weight | |
| A | B | |||||||||
| X1 mm | Y1 mm | W1 mm | H1 mm | |||||||
| mm | mm | * | pcs | pcs | kg | |||||
| PPC KK0607 | 600 | 1515 | 600 | 675 | 420 | 420 | I | 1 | 2 | 4.8 |
| PPC KK0610 | 600 | 1825 | 600 | 975 | 420 | 720 | I | 1 | 2 | 6.4 |
| PPC KK0807 | 800 | 1515 | 800 | 675 | 620 | 420 | I | 1 | 2 | 6.4 |
| PPC KK0810 | 800 | 1825 | 800 | 975 | 620 | 720 | I | 1 | 2 | 9.3 |
* I: Escutcheon Rod-latch

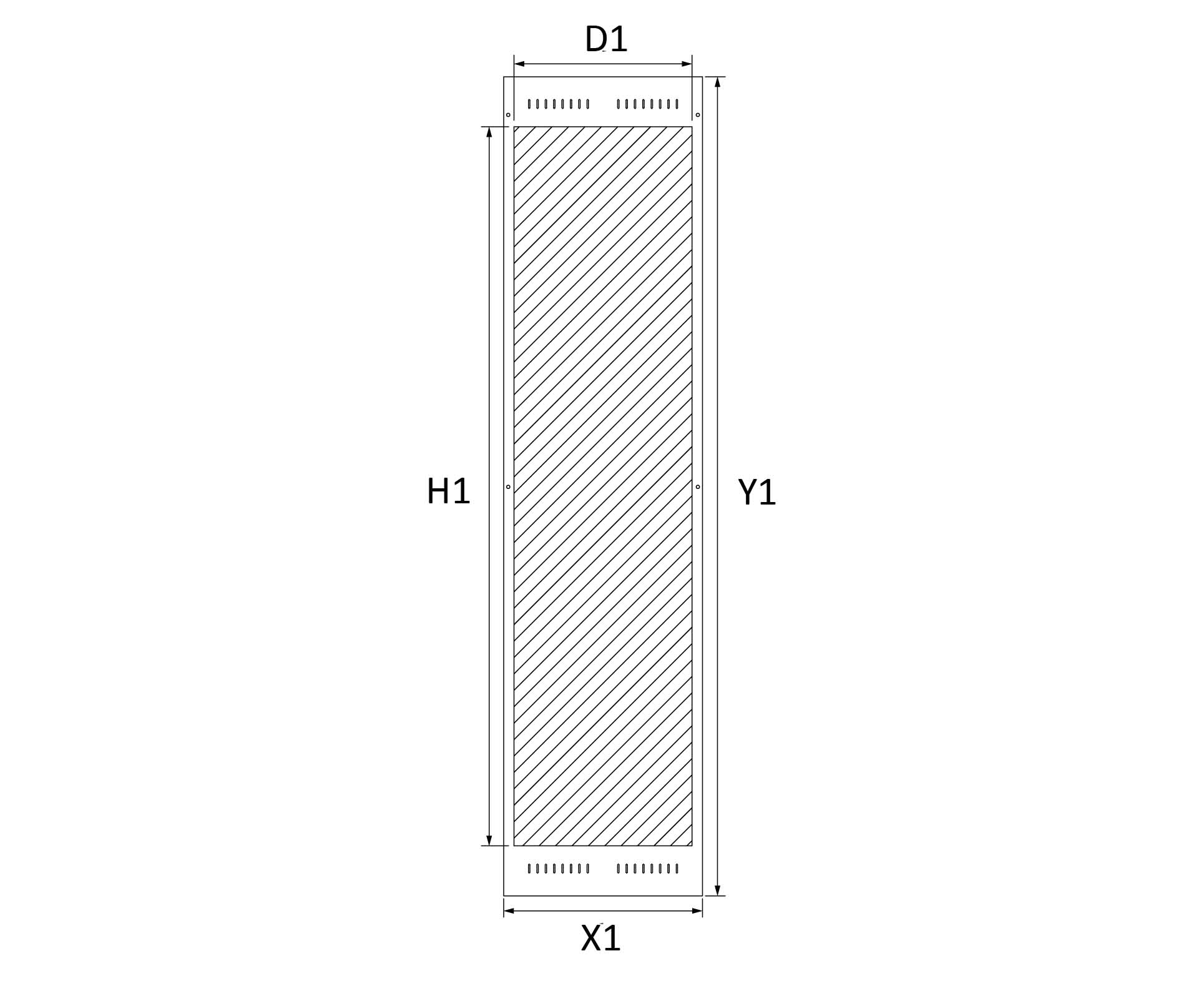

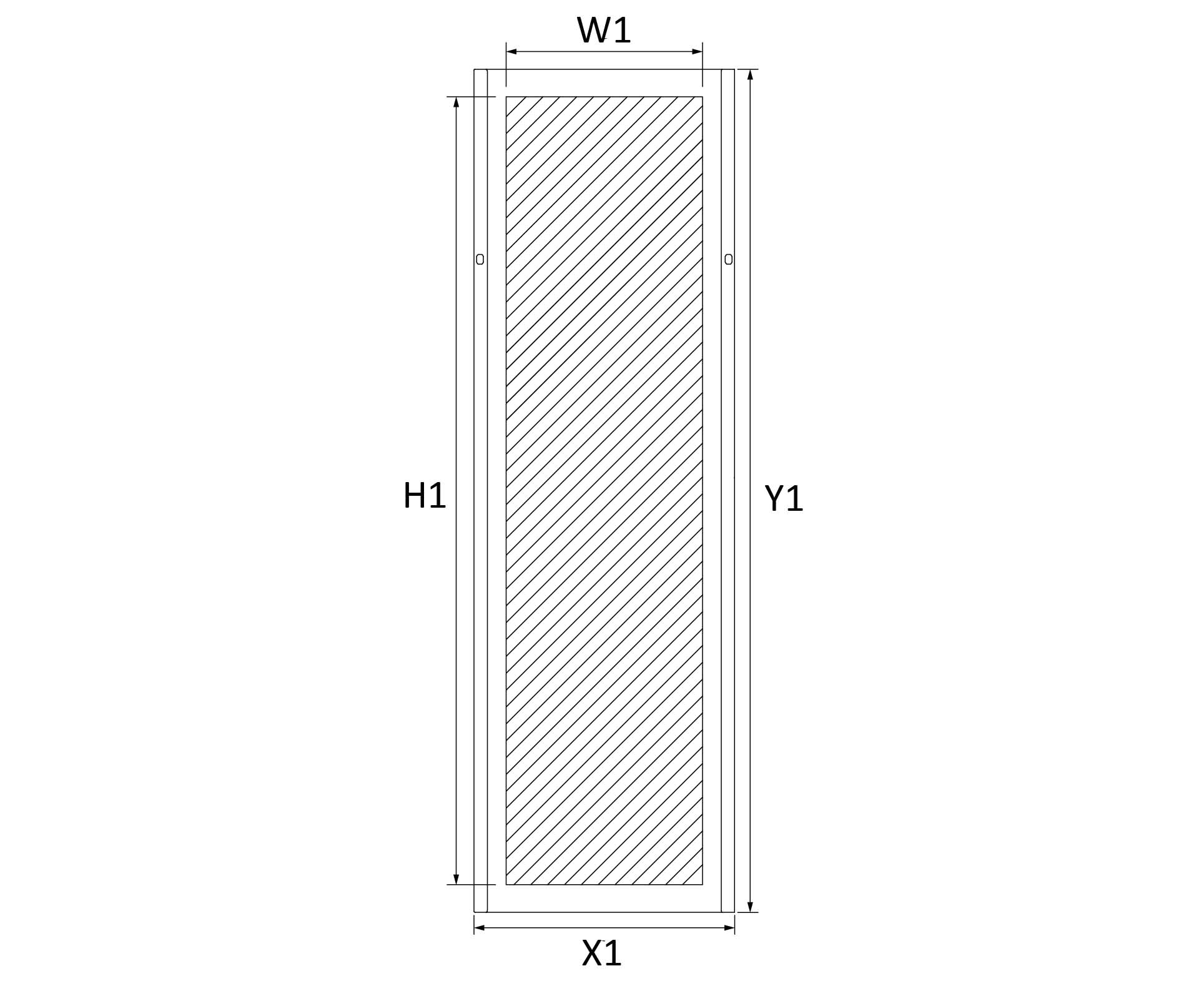

| Reference | Height | Depth | Wide | Length | Useful Area | Weight | |
| B | C | ||||||
| X1 mm | Y1 mm | H1 mm | D1 mm | ||||
| mm | mm | kg | |||||
| PEC YV0806 | 850 | 600 | 430 | 785 | 742 | 390 | 3.2 |
| PEC YV3206 | 1515 | 600 | 430 | 1450 | 1290 | 390 | 5.9 |
| PEC YV3908 | 1825 | 600 | 430 | 1760 | 1600 | 390 | 7.2 |
| PEC YV3910 | 1825 | 800 | 630 | 1760 | 1600 | 590 | 10.6 |

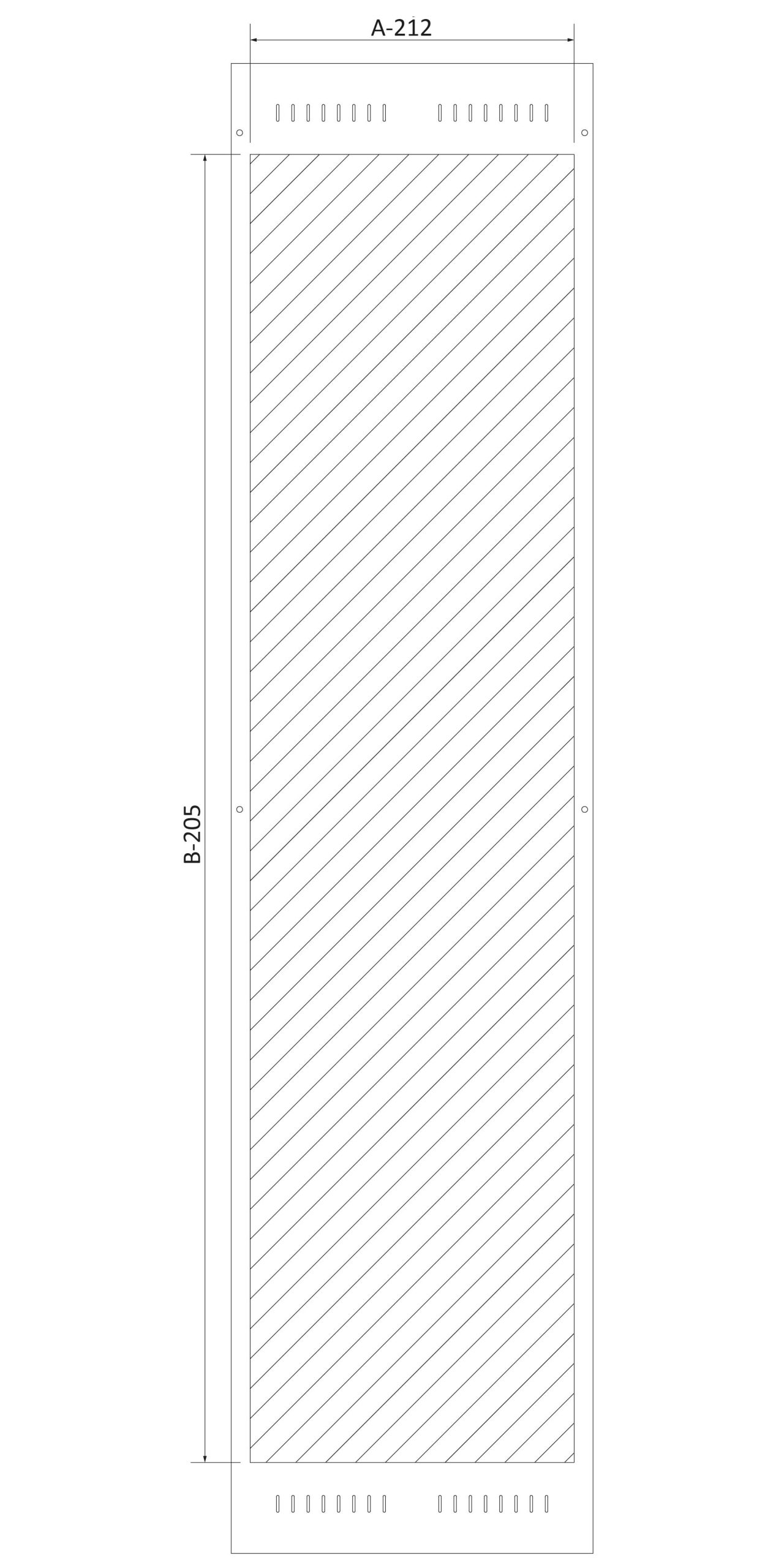

| Reference | Width | Height | Wide | Length | Useful Area | Lock Type | Lock | Weight | |
| A | B | ||||||||
| X1 mm | Y1 mm | W1 mm | H1 mm | ||||||
| mm | mm | * | pcs | kg | |||||
| PEC ST0617 | 600 | 850 | 540 | 785 | 450 | 725 | C | 2 | 4 |
| PEC ST0632 | 600 | 1515 | 540 | 1450 | 450 | 1390 | C | 2 | 7.5 |
| PEC ST0639 | 600 | 1825 | 540 | 1760 | 450 | 1697 | C | 2 | 9.1 |
| PEC ST0817 | 800 | 850 | 640 | 785 | 650 | 725 | C | 2 | 4.8 |
| PEC ST0832 | 800 | 1515 | 640 | 1450 | 650 | 1390 | C | 2 | 8.9 |
| PEC ST0839 | 800 | 1825 | 640 | 1760 | 650 | 1700 | C | 2 | 10.8 |
PPC Series Enclosures
Product Code:
PPC Series Enclosures
Quantity:
Product Code:
Enclosure-1 Accessory Selection

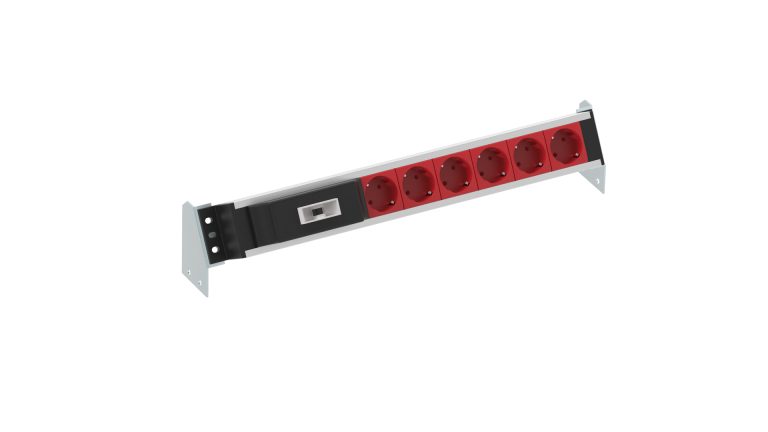

- 6 Outlets,
- With 16A 220V AC,
- Without cable
- Material
- DIN EN 10327 DX51D+Z galvanized
- Thickness
- 1.5 mm
- Supply Includes
- Mounting screws
- Material
- Yellow – Green, Isolated copper conductor
- Connection
- M8-M8
- Packaging
- Earthing Cable added from this section is supplied in the quantity corresponding to the number of enclosures specified in the quotation.
- Material
- Yellow – Green, Isolated copper conductor
- Material
- Nickel Plated, Braided Copper Conductor
- Connection
- M8-M8
