Depth Extension Cover TP230

Home

Accessory

Depth Extension Cover TP230

Material
- AL 4600 Series
- Sheet Steel (AL)
Surface Finishing
- RAL 7015T
On Request
- Custom colour
Other
- Increased Installation Depth: Provides additional internal space for components and equipment requiring greater enclosure depth.
- Panel-Specific Design: Designed specifically for the corresponding control panel and used in place of the standard cover.
- Easy Integration: Can be integrated into the existing panel configuration without replacing the complete enclosure.
Advantages
- More Internal Space: Creates additional room for HMI components, control devices and supporting equipment.
- Flexible Configuration: Allows the control panel to be adapted to applications with higher space requirements.
- Practical Solution: Increases panel depth while maintaining the existing control panel structure.

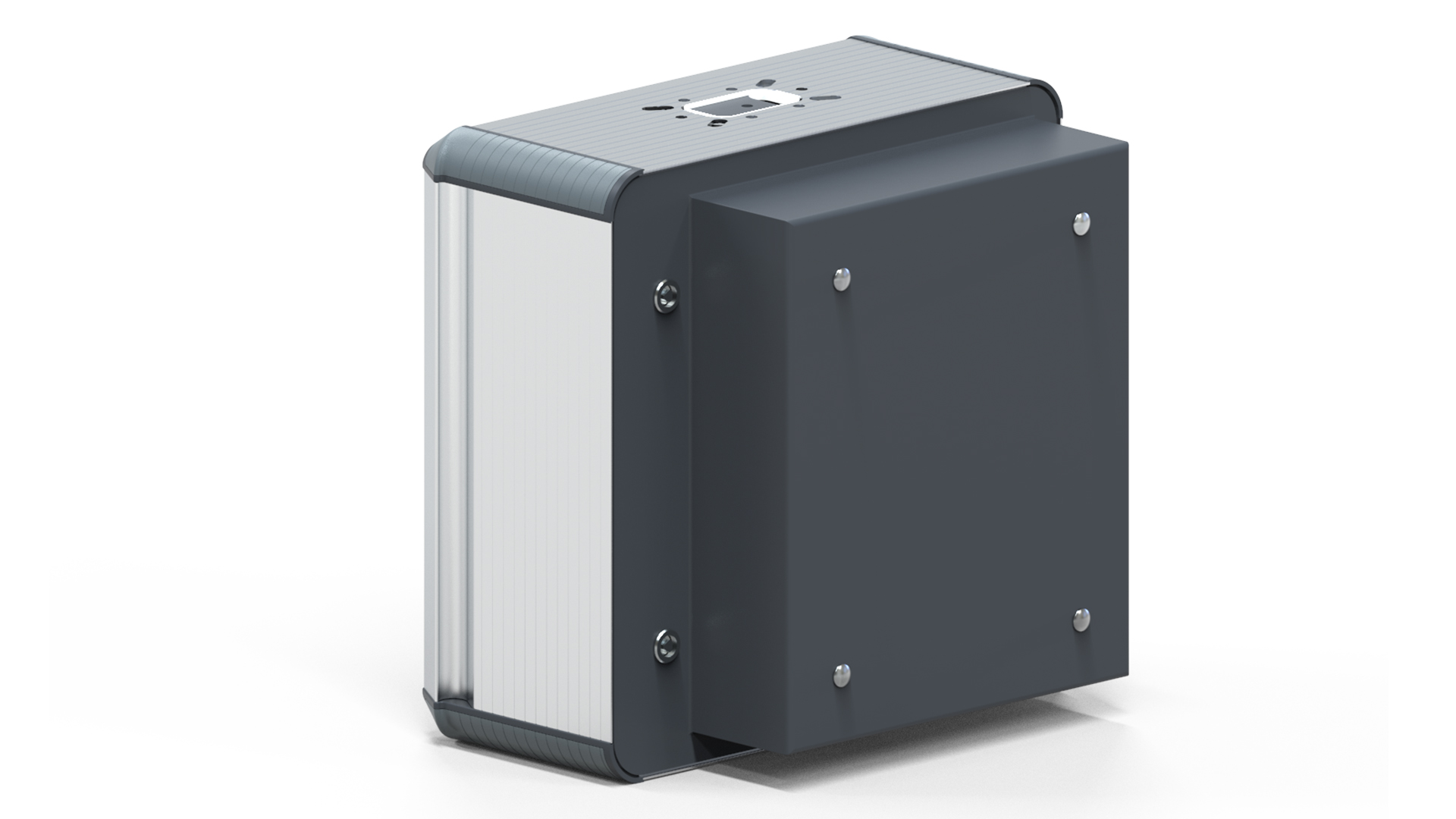

The TP230 Depth Extension Cover provides additional internal depth for applications requiring extra space within the control panel. The extended enclosure volume allows HMI systems, operating components and supporting equipment to be accommodated more comfortably inside the TP150 Control Panel.

Depth Extension Cover TP230

Material
- AL 4600 Series
- Sheet Steel (AL)
Surface Finishing
- RAL 7015T
On Request
- Custom colour

Other
- Increased Installation Depth: Provides additional internal space for components and equipment requiring greater enclosure depth.
- Panel-Specific Design: Designed specifically for the corresponding control panel and used in place of the standard cover.
- Easy Integration: Can be integrated into the existing panel configuration without replacing the complete enclosure.

Advantages
- More Internal Space: Creates additional room for HMI components, control devices and supporting equipment.
- Flexible Configuration: Allows the control panel to be adapted to applications with higher space requirements.
- Practical Solution: Increases panel depth while maintaining the existing control panel structure.

Width	Height	Depth	Reference	Back Door			Back Door			Cad Models
A	B	C		Width	Height	Depth	Back Door
A	B	C		X	Y	Z	Lock	Lock Type	Hinge
mm	mm	mm		mm	mm	mm	pcs.	*	pcs.
