BS Series

Standing Type Enclosures

BS

INTRODUCTION

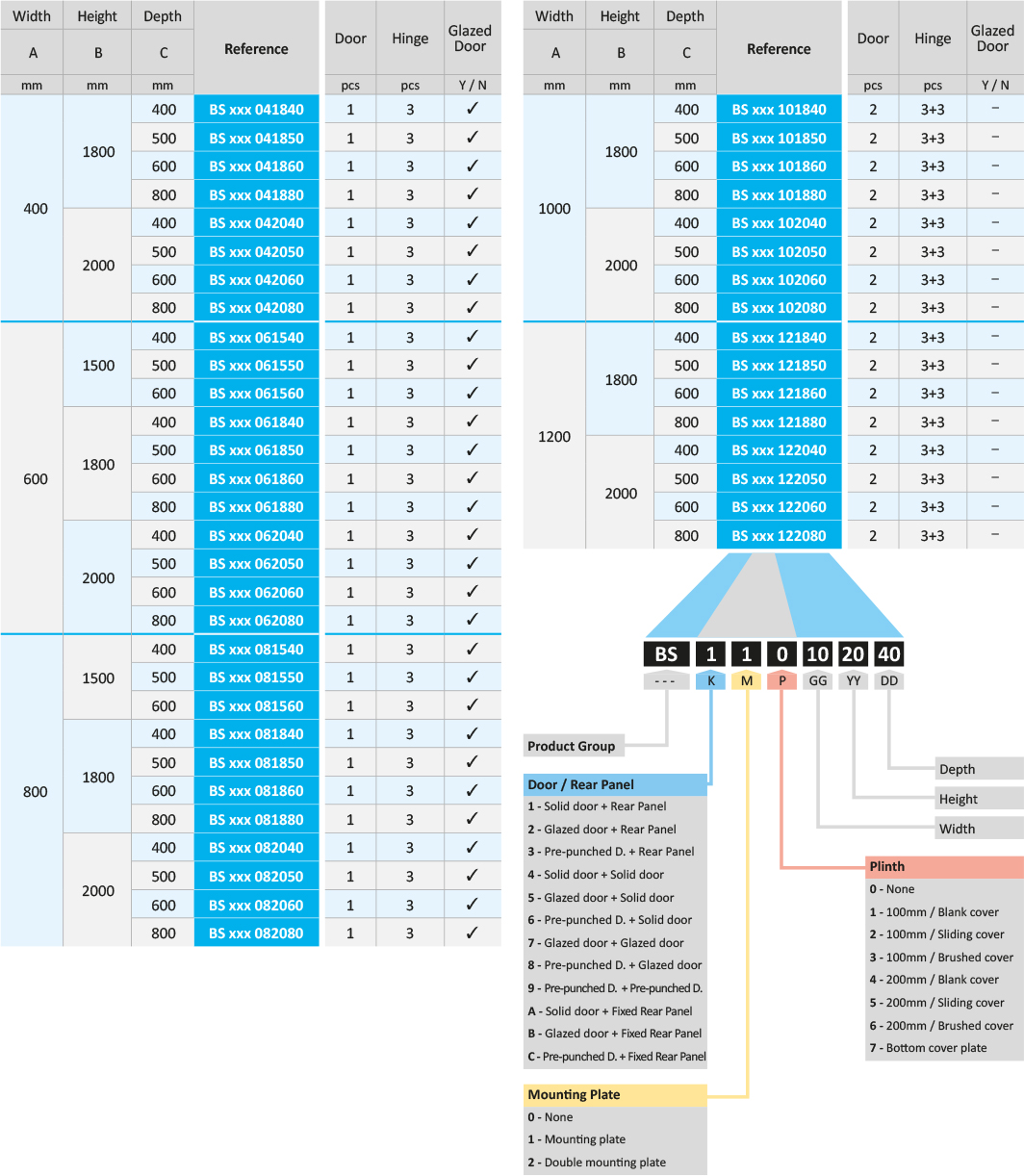

MEASUREMENTS

IMAGES

DOWNLOAD

Characteristics
Material

Sheet Steel (EN 10130 DC01)

  • Frame: 1.5 mm
  • Panel: 1.5 mm
  • Door: 2 mm
  • Plinth: 2 mm

Galvanized Steel (EN 10346 DX51D+Z)

  • Mounting plate : 2 mm
Surface Finishing
  • RAL7035w powder coating
IP Rating
  • IP55 (TS 3033, EN 60529)
Others
  • Welded frame construction
  • Foamed-in door/rear panel PU sealing gasket
  • Swing-handle polyamide lock (4 points locking, 333 key)
  • Concealed hinge
  • Door and panel options for rear side
  • Multiple mounting plate possibility
  • The modular construction can be join
  • Removable side panels
  • Plinth and cover options

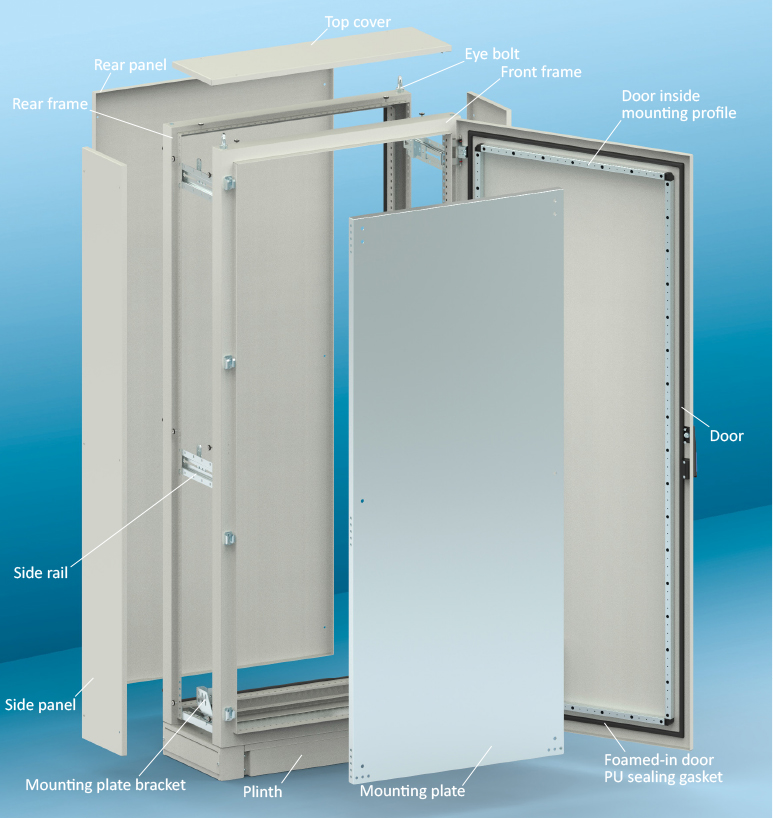

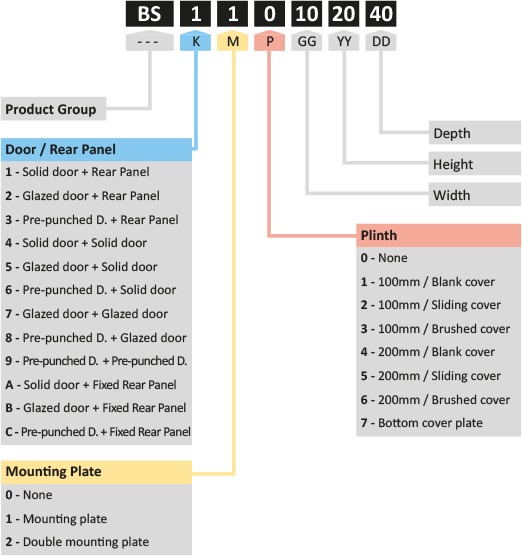

Supply Includes
  • Front and rear frame
  • Door ( Select ≈ K )
  • Rear panel ( Select ≈ K )
  • Mounting plate ( Option ≈ M )
  • Plinth ( Option ≈ P )
  • Top cover
  • 4/6 pcs side rails
  • Door inside mounting profile
On Request
  • Special sizes
  • Special colour
  • Pre-punching
  • Flat pack options
Complementary Accessories
  • Side panel
  • Eye bolt
  • Rain canopy
  • Cover plate and profiles
  • Hinged cover plate
  • Short mounting plate
  • Partial mounting plate
  • Infill mounting plate
  • Carriage depth slide and support
  • Partition profile
  • L, U and Z profiles
  • L and Z brackets
  • Busbar & depth profile
  • Ladder busbar profile
  • Joining set
  • Adjustable / pull out perforated shelf
  • Plan pocket
  • Plastic cover plate
  • Earthing cable
  • Door interlock system for joined enclosures
