AS Serisi Panolar

Malzeme

Çelik levha (EN 10130 DC01)
- Çerçeve : 1.5 mm
- Panel : 1.5 mm
- Kapı : 2 mm
- Baza : 2 mm
Galvaniz kaplı çelik (EN 10346 DX51D+Z)
- Montaj plakası: 2 mm

Yüzey İşlem

RAL7035w toz boya

Koruma Sınıfı

IP55 (TS 3033, EN 60529)

Diğer

Kaynaklı çerçeve yapısı
Kapı/sırt içinde PU dökme conta
Kollu polyamid gövdeli ispanyolet kilit (3 noktadan kilitlenen, 333 anahtarlı)
Gizli menteşe
Arka için kapı veya sırt seçeneği
Çoklu montaj plakası imkanı
Birleştirilebilir modüler yapı
Sökülebilir yan paneller

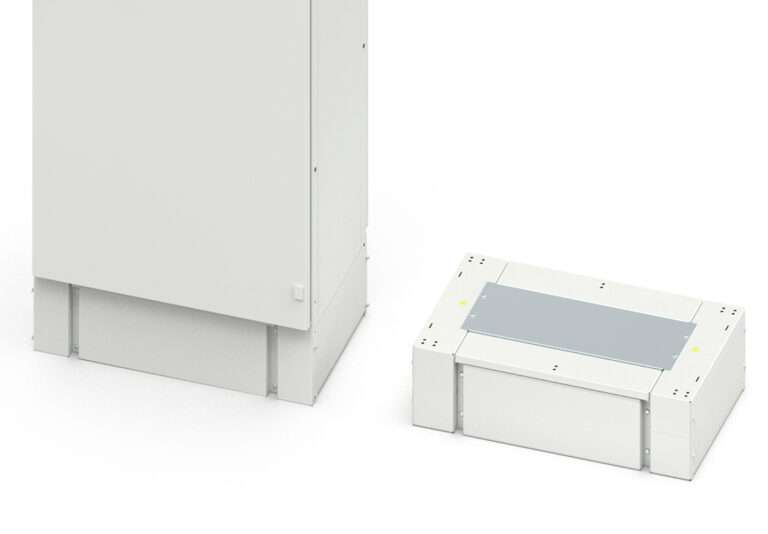

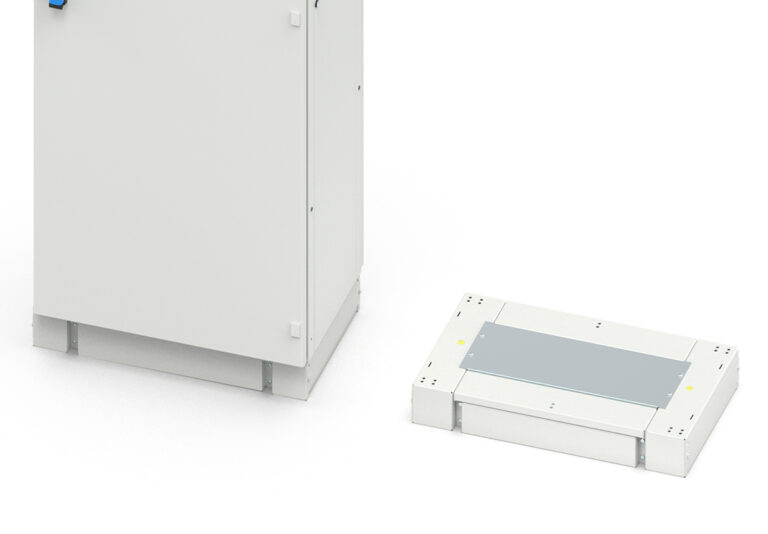

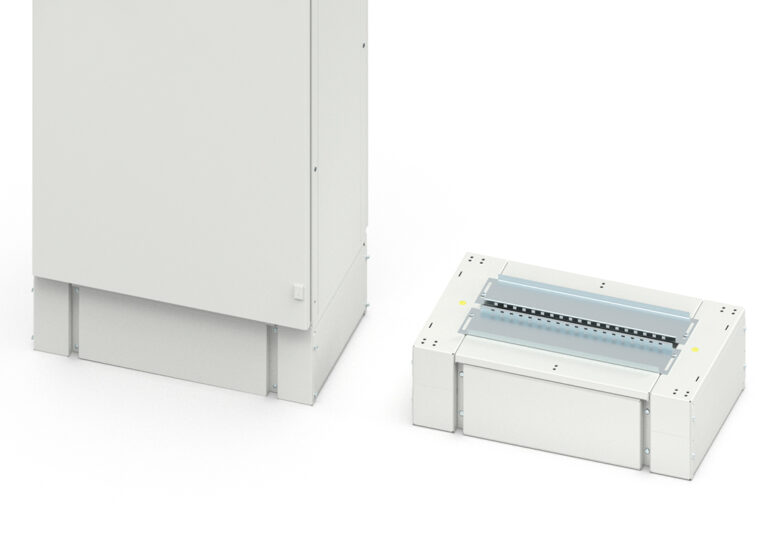

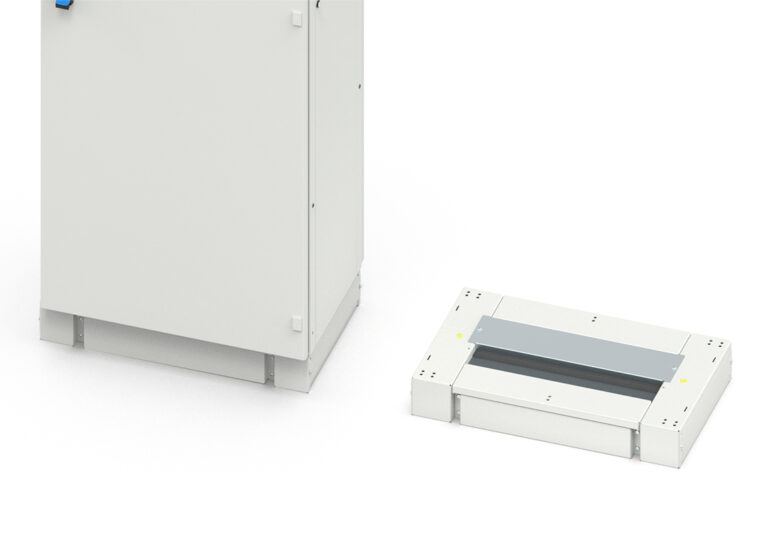

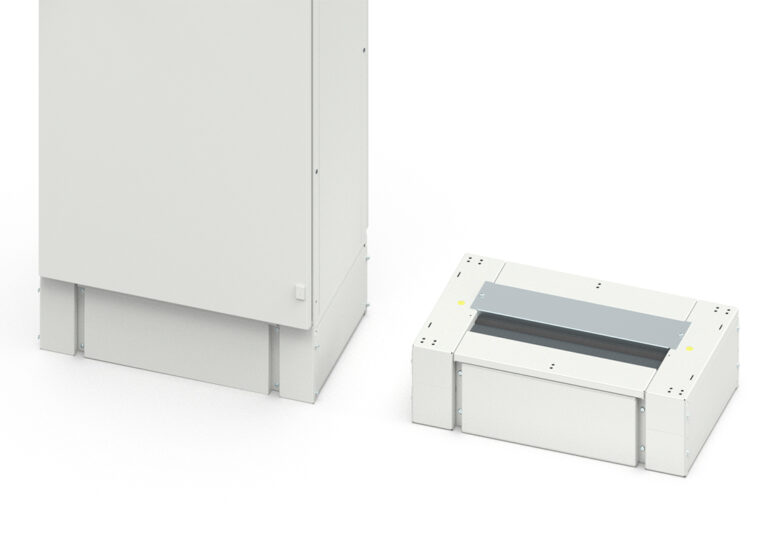

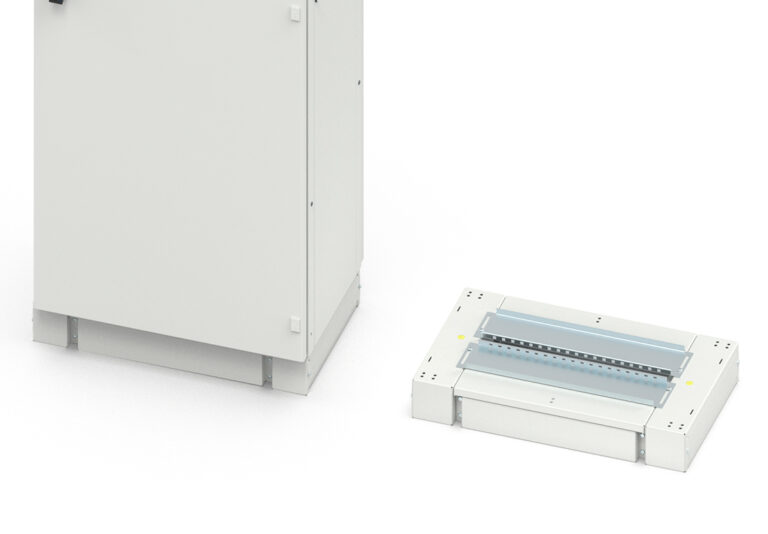

Baza ve kapak seçenekleri

3D CAD Modelleri

AS Serisi Modüler Panolar, büyük ve karmaşık elektrik, otomasyon ve güç dağıtım projeleri için modüler bir pano sistemi sunar. Yapılandırılabilir tasarımı sayesinde panolar, montaj düzenleri ve iç yapılar proje gereksinimlerine göre bir araya getirilebilir; böylece genişleme, bölümlendirme veya yüksek ekipman yoğunluğunun başlangıçtan itibaren dikkate alınması gereken uygulamalara uyum sağlar.

AS Serisi Panolar / Modüler Panolar

Malzeme

Çelik levha (EN 10130 DC01)
- Çerçeve : 1.5 mm
- Panel : 1.5 mm
- Kapı : 2 mm
- Baza : 2 mm
Galvaniz kaplı çelik (EN 10346 DX51D+Z)
- Montaj plakası: 2 mm

Yüzey İşlem

RAL7035w toz boya

Koruma Sınıfı

IP55 (TS 3033, EN 60529)

Diğer

Kaynaklı çerçeve yapısı
Kapı/sırt içinde PU dökme conta
Kollu polyamid gövdeli ispanyolet kilit (3 noktadan kilitlenen, 333 anahtarlı)
Gizli menteşe
Arka için kapı veya sırt seçeneği
Çoklu montaj plakası imkanı
Birleştirilebilir modüler yapı
Sökülebilir yan paneller
Baza ve kapak seçenekleri

İstek Üzerine
- Özel Boyut
- Özel Renk
- Önişlem
- Yassı paketleme
Donanım İçeriği
- Ön ve arka çerçeve
- Kapı (Seçim = K)
- Sırt (Seçim = K)
- Montaj plakası (Opsiyon = M)
- Baza (Opsiyon = P)
- Üst kapak
- 4/6 ad derinlik kızağı
- Kapı içi montaj profili

Tamamlayıcı Aksesuarlar
- Yan panel
- Taşıma halkası
- Harici şapka
- Perde ve perde profilleri
- Menteşeli perde
- Kısa montaj plakası
- Parçalı montaj plakası
- Birleştirme montaj plakası
- Kaydırma kızağı ve takozu
- Derinlik kızağı
- L, U ve Z profiller
- L ve Z bağlantı parçaları
- Busbar & Derinlik profili
- Kademeli bara kaidesi
- Birleştirme kiti
- Ayarlı / teleskopik perfore raf
- Proje cebi
- Sigorta yeri kapama parçası
- Topraklama iletkeni
- Interlock kilit sistemi
- Kapı içi montaj profili
- 19” dik profiller
- Döner çerçeve

Door inside mounting profile
19” upright profiles
Swing frame

Tescilli Ürün
Tempa Pano San. ve Tic. A.Ş. tescilli ürünü (No: 200301171).

Konfigürasyonlar

Düz Kapı + Sırt - -

Düz Kapı + Sırt Montaj Plakası Baza / Alt Kapama Sacı

Düz Kapı + Yekpare Sırt Montaj Plakası 200 mm Baza / Alt Kapama Sacı

Camlı Kapı + Sırt Montaj Plakası Baza / Alt Kapama Sacı

Camlı Kapı + Düz Kapı Çift Montaj Plakası Baza / Alt Kapama Sacı

Düz Kapı + Düz Kapı Çift Montaj Plakası 200 mm Baza / Alt Fırçalı Kapak

Düz Kapı + Yekpare Sırt Montaj Plakası 200 mm Baza / Alt Fırçalı Kapak

Benzer Ürünler

Genişlik	Yükseklik	Derinlik	Ürün Kodu	Kapı Sayısı	Menteşe Sayısı	Camlı Kapı
A	B	C		Kapı Sayısı	Menteşe Sayısı	Camlı Kapı
mm	mm	mm		ad	ad	E / H

400	600	400	AS xxx 040640	1	2	✓
400	600	500	AS xxx 040650	1	2	✓
400	600	600	AS xxx 040660	1	2	✓
400	600	800	AS xxx 040680	1	2	✓
400	800	400	AS xxx 040840	1	2	✓
400	800	500	AS xxx 040850	1	2	✓
400	800	600	AS xxx 040860	1	2	✓
400	800	800	AS xxx 040880	1	2	✓
400	1000	400	AS xxx 041040	1	2	✓
400	1000	500	AS xxx 041050	1	2	✓
400	1000	600	AS xxx 041060	1	2	✓
400	1000	800	AS xxx 041080	1	2	✓
400	1200	400	AS xxx 041240	1	2	✓
400	1200	500	AS xxx 041250	1	2	✓
400	1200	600	AS xxx 041260	1	2	✓
400	1200	800	AS xxx 041280	1	2	✓
400	1400	400	AS xxx 041440	1	3	✓
400	1400	500	AS xxx 041450	1	3	✓
400	1400	600	AS xxx 041460	1	3	✓
400	1400	800	AS xxx 041480	1	3	✓
400	1600	400	AS xxx 041640	1	3	✓
400	1600	500	AS xxx 041650	1	3	✓
400	1600	600	AS xxx 041660	1	3	✓
400	1600	800	AS xxx 041680	1	3	✓
400	1800	400	AS xxx 041840	1	3	✓
400	1800	500	AS xxx 041850	1	3	✓
400	1800	600	AS xxx 041860	1	3	✓
400	1800	800	AS xxx 041880	1	3	✓
400	2000	400	AS xxx 042040	1	3	✓
400	2000	500	AS xxx 042050	1	3	✓
400	2000	600	AS xxx 042060	1	3	✓
400	2000	800	AS xxx 042080	1	3	✓
600	600	400	AS xxx 060640	1	2	✓
600	600	500	AS xxx 060650	1	2	✓
600	600	600	AS xxx 060660	1	2	✓
600	600	800	AS xxx 060680	1	2	✓
600	800	400	AS xxx 060840	1	2	✓
600	800	500	AS xxx 060850	1	2	✓
600	800	600	AS xxx 060860	1	2	✓
600	800	800	AS xxx 060880	1	2	✓
600	1000	400	AS xxx 061040	1	2	✓
600	1000	500	AS xxx 061050	1	2	✓
600	1000	600	AS xxx 061060	1	2	✓
600	1000	800	AS xxx 061080	1	2	✓
600	1200	400	AS xxx 061240	1	2	✓
600	1200	500	AS xxx 061250	1	2	✓
600	1200	600	AS xxx 061260	1	2	✓
600	1200	800	AS xxx 061280	1	2	✓
600	1400	400	AS xxx 061440	1	3	✓
600	1400	500	AS xxx 061450	1	3	✓
600	1400	600	AS xxx 061460	1	3	✓
600	1400	800	AS xxx 061480	1	3	✓
600	1600	400	AS xxx 061640	1	3	✓
600	1600	500	AS xxx 061650	1	3	✓
600	1600	600	AS xxx 061660	1	3	✓
600	1600	800	AS xxx 061680	1	3	✓
600	1800	400	AS xxx 061840	1	3	✓
600	1800	500	AS xxx 061850	1	3	✓
600	1800	600	AS xxx 061860	1	3	✓
600	1800	800	AS xxx 061880	1	3	✓
600	2000	400	AS xxx 062040	1	3	✓
600	2000	500	AS xxx 062050	1	3	✓
600	2000	600	AS xxx 062060	1	3	✓
600	2000	800	AS xxx 062080	1	3	✓
800	600	400	AS xxx 080640	1	2	✓
800	600	500	AS xxx 080650	1	2	✓
800	600	600	AS xxx 080660	1	2	✓
800	600	800	AS xxx 080680	1	2	✓
800	800	400	AS xxx 080840	1	2	✓
800	800	500	AS xxx 080850	1	2	✓
800	800	600	AS xxx 080860	1	2	✓
800	800	800	AS xxx 080880	1	2	✓
800	1000	400	AS xxx 081040	1	2	✓
800	1000	500	AS xxx 081050	1	2	✓
800	1000	600	AS xxx 081060	1	2	✓
800	1000	800	AS xxx 081080	1	2	✓
800	1200	400	AS xxx 081240	1	2	✓
800	1200	500	AS xxx 081250	1	2	✓
800	1200	600	AS xxx 081260	1	2	✓
800	1200	800	AS xxx 081280	1	2	✓
800	1400	400	AS xxx 081440	1	3	✓
800	1400	500	AS xxx 081450	1	3	✓
800	1400	600	AS xxx 081460	1	3	✓
800	1400	800	AS xxx 081480	1	3	✓
800	1600	400	AS xxx 081640	1	3	✓
800	1600	500	AS xxx 081650	1	3	✓
800	1600	600	AS xxx 081660	1	3	✓
800	1600	800	AS xxx 081680	1	3	✓
800	1800	400	AS xxx 081840	1	3	✓
800	1800	500	AS xxx 081850	1	3	✓
800	1800	600	AS xxx 081860	1	3	✓
800	1800	800	AS xxx 081880	1	3	✓
800	2000	400	AS xxx 082040	1	3	✓
800	2000	500	AS xxx 082050	1	3	✓
800	2000	600	AS xxx 082060	1	3	✓
800	2000	800	AS xxx 082080	1	3	✓
1000	600	400	AS xxx 100640	2	2+2	‒
1000	600	500	AS xxx 100650	2	2+2	‒
1000	600	600	AS xxx 100660	2	2+2	‒
1000	600	800	AS xxx 100680	2	2+2	‒
1000	800	400	AS xxx 100840	2	2+2	‒
1000	800	500	AS xxx 100850	2	2+2	‒
1000	800	600	AS xxx 100860	2	2+2	‒
1000	800	800	AS xxx 100880	2	2+2	‒
1000	1000	400	AS xxx 101040	2	2+2	‒
1000	1000	500	AS xxx 101050	2	2+2	‒
1000	1000	600	AS xxx 101060	2	2+2	‒
1000	1000	800	AS xxx 101080	2	2+2	‒
1000	1200	400	AS xxx 101240	2	2+2	‒
1000	1200	500	AS xxx 101250	2	2+2	‒
1000	1200	600	AS xxx 101260	2	2+2	‒
1000	1200	800	AS xxx 101280	2	2+2	‒
1000	1400	400	AS xxx 101440	2	3+3	‒
1000	1400	500	AS xxx 101450	2	3+3	‒
1000	1400	600	AS xxx 101460	2	3+3	‒
1000	1400	800	AS xxx 101480	2	3+3	‒
1000	1600	400	AS xxx 101640	2	3+3	‒
1000	1600	500	AS xxx 101650	2	3+3	‒
1000	1600	600	AS xxx 101660	2	3+3	‒
1000	1600	800	AS xxx 101680	2	3+3	‒
1000	1800	400	AS xxx 101840	2	3+3	✓
1000	1800	500	AS xxx 101850	2	3+3	✓
1000	1800	600	AS xxx 101860	2	3+3	✓
1000	1800	800	AS xxx 101880	2	3+3	✓
1000	2000	400	AS xxx 102040	2	3+3	✓
1000	2000	500	AS xxx 102050	2	3+3	✓
1000	2000	600	AS xxx 102060	2	3+3	✓
1000	2000	800	AS xxx 102080	2	3+3	✓
1200	600	400	AS xxx 120640	2	2+2	‒
1200	600	500	AS xxx 120650	2	2+2	‒
1200	600	600	AS xxx 120660	2	2+2	‒
1200	600	800	AS xxx 120680	2	2+2	‒
1200	800	400	AS xxx 120840	2	2+2	‒
1200	800	500	AS xxx 120850	2	2+2	‒
1200	800	600	AS xxx 120860	2	2+2	‒
1200	800	800	AS xxx 120880	2	2+2	‒
1200	1000	400	AS xxx 121040	2	2+2	‒
1200	1000	500	AS xxx 121050	2	2+2	‒
1200	1000	600	AS xxx 121060	2	2+2	‒
1200	1000	800	AS xxx 121080	2	2+2	‒
1200	1200	400	AS xxx 121240	2	2+2	‒
1200	1200	500	AS xxx 121250	2	2+2	‒
1200	1200	600	AS xxx 121260	2	2+2	‒
1200	1200	800	AS xxx 121280	2	2+2	‒
1200	1400	400	AS xxx 121440	2	3+3	‒
1200	1400	500	AS xxx 121450	2	3+3	‒
1200	1400	600	AS xxx 121460	2	3+3	‒
1200	1400	800	AS xxx 121480	2	3+3	‒
1200	1600	400	AS xxx 121640	2	3+3	‒
1200	1600	500	AS xxx 121650	2	3+3	‒
1200	1600	600	AS xxx 121660	2	3+3	‒
1200	1600	800	AS xxx 121680	2	3+3	‒
1200	1800	400	AS xxx 121840	2	3+3	✓
1200	1800	500	AS xxx 121850	2	3+3	✓
1200	1800	600	AS xxx 121860	2	3+3	✓
1200	1800	800	AS xxx 121880	2	3+3	✓
1200	2000	400	AS xxx 122040	2	3+3	✓
1200	2000	500	AS xxx 122050	2	3+3	✓
1200	2000	600	AS xxx 122060	2	3+3	✓
1200	2000	800	AS xxx 122080	2	3+3	✓
1400	600	400	AS xxx 140640	2	2+2	‒
1400	600	500	AS xxx 140650	2	2+2	‒
1400	600	600	AS xxx 140660	2	2+2	‒
1400	600	800	AS xxx 140680	2	2+2	‒
1400	800	400	AS xxx 140840	2	2+2	‒
1400	800	500	AS xxx 140850	2	2+2	‒
1400	800	600	AS xxx 140860	2	2+2	‒
1400	800	800	AS xxx 140880	2	2+2	‒
1400	1000	400	AS xxx 141040	2	2+2	‒
1400	1000	500	AS xxx 141050	2	2+2	‒
1400	1000	600	AS xxx 141060	2	2+2	‒
1400	1000	800	AS xxx 141080	2	2+2	‒
1400	1200	400	AS xxx 141240	2	2+2	‒
1400	1200	500	AS xxx 141250	2	2+2	‒
1400	1200	600	AS xxx 141260	2	2+2	‒
1400	1200	800	AS xxx 141280	2	2+2
1400	1400	400	AS xxx 141440	2	3+3	‒
1400	1400	500	AS xxx 141450	2	3+3	‒
1400	1400	600	AS xxx 141460	2	3+3	‒
1400	1400	800	AS xxx 141480	2	3+3	‒
1400	1600	400	AS xxx 141640	2	3+3	‒
1400	1600	500	AS xxx 141650	2	3+3	‒
1400	1600	600	AS xxx 141660	2	3+3	‒
1400	1600	800	AS xxx 141680	2	3+3	‒
1400	1800	400	AS xxx 141840	2	3+3	✓
1400	1800	500	AS xxx 141850	2	3+3	✓
1400	1800	600	AS xxx 141860	2	3+3	✓
1400	1800	800	AS xxx 141880	2	3+3	✓
1400	2000	400	AS xxx 142040	2	3+3	✓
1400	2000	500	AS xxx 142050	2	3+3	✓
1400	2000	600	AS xxx 142060	2	3+3	✓
1400	2000	800	AS xxx 142080	2	3+3	✓

Ölçüler

Montaj Plakası

Düz Kapı Kullanılabilir Alan

Ölçüler

Montaj Plakası

Düz Kapı Kullanılabilir Alan

Ürün Kodu	Genişlik	Yükseklik	En	Boy	Bağlantı				Bağlantı	Ağırlık
	A mm	B mm	X1 mm	Y1 mm	X2 mm	Y2 mm	X3 mm	Y3 mm	n
									ad	kg

AS TS 0406	400	600	300	500	241	400	260	–	4	3.3
AS TS 0408	400	800	300	700	241	600	260	–	4	4.5
AS TS 0410	400	1000	300	900	241	800	260	–	4	5.7
AS TS 0412	400	1200	300	1100	241	1000	260	–	4	6.9
AS TS 0414	400	1400	300	1300	241	1200	260	600	6	8.1
AS TS 0416	400	1600	300	1500	241	1400	260	700	6	9.3
AS TS 0418	400	1800	300	1700	241	1600	260	800	6	10.5
AS TS 0420	400	2000	300	1900	241	1800	260	900	6	11.6
AS TS 0606	600	600	500	500	441	400	460	–	4	5.1
AS TS 0608	600	800	500	708	441	600	460	–	4	7.0
AS TS 0610	600	1000	500	900	441	800	460	–	4	8.7
AS TS 0612	600	1200	500	1100	441	1000	460	–	4	10.6
AS TS 0614	600	1400	500	1300	441	1200	460	600	6	12.4
AS TS 0616	600	1600	500	1500	441	1400	460	700	6	14.2
AS TS 0618	600	1800	500	1700	441	1600	460	800	6	16.1
AS TS 0620	600	2000	500	1900	441	1800	460	900	6	17.9
AS TS 0806	800	600	700	500	641	400	660	–	4	6.9
AS TS 0808	800	800	700	700	641	600	660	–	4	9.3
AS TS 0810	800	1000	700	900	641	800	660	–	4	11.8
AS TS 0812	800	1200	700	1100	641	1000	660	–	4	14.3
AS TS 0814	800	1400	700	1300	641	1200	660	600	6	16.7
AS TS 0816	800	1600	700	1500	641	1400	660	700	6	18.0
AS TS 0818	800	1800	700	1700	641	1600	660	800	6	21.7
AS TS 0820	800	2000	700	1900	641	1800	660	900	6	24.2
AS TS 1006	1000	600	900	500	841	400	860	–	4	8.6
AS TS 1008	1000	800	900	700	841	600	860	–	4	11.8
AS TS 1010	1000	1000	900	900	841	800	860	–	4	14.9
AS TS 1012	1000	1200	900	1100	841	1000	860	–	4	18.0
AS TS 1014	1000	1400	900	1300	841	1200	860	600	6	21.1
AS TS 1016	1000	1600	900	1500	841	1400	860	700	6	22.6
AS TS 1018	1000	1800	900	1700	841	1600	860	800	6	27.3
AS TS 1020	1000	2000	900	1900	841	1800	860	900	6	30.4
AS TS 1206	1200	600	1100	500	1041	400	1060	–	4	10.4
AS TS 1208	1200	800	1100	700	1041	600	1060	–	4	14.2
AS TS 1210	1200	1000	1100	900	1041	800	1060	–	4	17.9
AS TS 1212	1200	1200	1100	1100	1041	1000	1060	–	4	21.7
AS TS 1214	1200	1400	1100	1300	1041	1200	1060	600	6	25.4
AS TS 1216	1200	1600	1100	1500	1041	1400	1060	700	6	27.3
AS TS 1218	1200	1800	1100	1700	1041	1600	1060	800	6	32.9
AS TS 1220	1200	2000	1100	1900	1041	1800	1060	900	6	36.7
AS TS 1406	1400	600	1300	500	1241	400	1260	–	4	12.2
AS TS 1408	1400	800	1300	700	1241	600	1260	–	4	16.6
AS TS 1410	1400	1000	1300	900	1241	800	1260	–	4	21.0
AS TS 1412	1400	1200	1300	1100	1241	1000	1260	–	4	25.4
AS TS 1414	1400	1400	1300	1300	1241	1200	1260	600	6	29.8
AS TS 1416	1400	1600	1300	400 x 1100	1241	300 / 1000	1260	700	6	32.0
AS TS 1418	1400	1800	1300	600 + 1100	1241	500 / 1000	1260	800	6	38.5
AS TS 1420	1400	2000	1300	800 + 1100	1241	700 / 1000	1260	900	6	42.9

Ölçüler

Ürün Kodu

Genişlik

Yükseklik

Boy

Kullanılabilir Alan

Kapı Sayısı

Kilit Tipi

Menteşe Sayısı

Ağırlık

A
mm

B
mm

X1
mm

Y1
mm

W1
mm

W11*
mm

W12*
mm

H1
mm

AS KP 0406	400	600	391	588	220	–	–	420	1	I	2	4.3
AS KP 0408	400	800	391	788	220	–	–	620	1	I	2	5.6
AS KP 0410	400	1000	391	988	220	–	–	820	1	I	2	7.0
AS KP 0412	400	1200	391	1188	220	–	–	1020	1	I	2	8.4
AS KP 0414	400	1400	391	1388	220	–	–	1220	1	I	3	9.7
AS KP 0416	400	1600	391	1588	220	–	–	1420	1	I	3	11.1
AS KP 0418	400	1800	391	1788	220	–	–	1620	1	I	3	12.4
AS KP 0420	400	2000	391	1988	220	–	–	1820	1	I	3	13.8
AS KP 0606	600	600	591	588	420	–	–	420	1	I	2	6.3
AS KP 0608	600	800	591	788	420	–	–	620	1	I	2	8.3
AS KP 0610	600	1000	591	988	420	–	–	820	1	I	2	10.3
AS KP 0612	600	1200	591	1188	420	–	–	1020	1	I	2	12.3
AS KP 0614	600	1400	591	1388	420	–	–	1220	1	I	3	14.3
AS KP 0616	600	1600	591	1588	420	–	–	1420	1	I	3	16.3
AS KP 0618	600	1800	591	1788	420	–	–	1620	1	I	3	18.3
AS KP 0620	600	2000	591	1988	420	–	–	1820	1	I	3	20.3
AS KP 0806	800	600	791	588	620	–	–	420	1	I	2	8.3
AS KP 0808	800	800	791	788	620	–	–	620	1	I	2	10.9
AS KP 0810	800	1000	791	988	620	–	–	820	1	I	2	13.6
AS KP 0812	800	1200	791	1188	620	–	–	1020	1	I	2	16.2
AS KP 0814	800	1400	791	1388	620	–	–	1220	1	I	3	18.8
AS KP 0816	800	1600	791	1588	620	–	–	1420	1	I	3	21.5
AS KP 0818	800	1800	791	1788	620	–	–	1620	1	I	3	24.1
AS KP 0820	800	2000	791	1988	620	–	–	1820	1	I	3	26.8
AS KP 1006	1000	600	991	588	–	320	320	420	2	I	2+2	10.9
AS KP 1008	1000	800	991	788	–	320	320	620	2	I	2+2	14.3
AS KP 1010	1000	1000	991	988	–	320	320	820	2	I	2+2	17.8
AS KP 1012	1000	1200	991	1188	–	320	320	1020	2	I	2+2	21.3
AS KP 1014	1000	1400	991	1388	–	320	320	1220	2	I	3+3	24.8
AS KP 1016	1000	1600	991	1588	–	320	320	1420	2	I	3+3	28.2
AS KP 1018	1000	1800	991	1788	–	320	320	1620	2	I	3+3	31.7
AS KP 1020	1000	2000	991	1988	–	320	320	1820	2	I	3+3	35.2
AS KP 1206	1200	600	1191	588	–	420	420	420	2	I	2+2	12.9
AS KP 1208	1200	800	1191	788	–	420	420	620	2	I	2+2	17.0
AS KP 1210	1200	1000	1191	988	–	420	420	820	2	I	2+2	21.1
AS KP 1212	1200	1200	1191	1188	–	420	420	1020	2	I	2+2	25.2
AS KP 1214	1200	1400	1191	1388	–	420	420	1220	2	I	3+3	29.3
AS KP 1216	1200	1600	1191	1588	–	420	420	1420	2	I	3+3	33.4
AS KP 1218	1200	1800	1191	1788	–	420	420	1620	2	I	3+3	37.5
AS KP 1220	1200	2000	1191	1988	–	420	420	1820	2	I	3+3	41.7
AS KP 1406	1400	600	1391	588	–	520	520	420	2	I	2+2	14.9
AS KP 1408	1400	800	1391	788	–	520	520	620	2	I	2+2	19.6
AS KP 1410	1400	1000	1391	988	–	520	520	820	2	I	2+2	24.4
AS KP 1412	1400	1200	1391	1188	–	520	520	1020	2	I	2+2	29.1
AS KP 1414	1400	1400	1391	1388	–	520	520	1220	2	I	3+3	33.9
AS KP 1416	1400	1600	1391	1588	–	520	520	1420	2	I	3+3	38.6
AS KP 1418	1400	1800	1391	1788	–	520	520	1620	2	I	3+3	43.4
AS KP 1420	1400	2000	1391	1988	–	520	520	1820	2	I	3+3	48.1

Ölçüler

Düz Kapı Kullanılabilir Alan

Ölçüler

Düz Kapı Kullanılabilir Alan

Ürün Kodu	Genişlik	Yükseklik	En	Boy	Görülebilir Alan		Kapı Sayısı	Kilit Tipi	Menteşe Sayısı	Ağırlık
	A mm	B mm	X1 mm	Y1 mm	W6 mm	H6 mm
							ad	*	ad	kg

AS KPX 0406	400	600	391	588	200	400	1	I	2	2.9
AS KPX 0408	400	800	391	788	200	600	1	I	2	3.7
AS KPX 0410	400	1000	391	988	200	800	1	I	2	4.5
AS KPX 0412	400	1200	391	1188	200	1000	1	I	2	5.4
AS KPX 0414	400	1400	391	1388	200	1200	1	I	3	6.2
AS KPX 0416	400	1600	391	1588	200	1400	1	I	3	7.0
AS KPX 0418	400	1800	391	1788	200	1600	1	I	3	7.9
AS KPX 0420	400	2000	391	1988	200	1800	1	I	3	8.7
AS KPX 0606	600	600	591	588	400	400	1	I	2	3.9
AS KPX 0608	600	800	591	788	400	600	1	I	2	5.0
AS KPX 0610	600	1000	591	988	400	800	1	I	2	6.1
AS KPX 0612	600	1200	591	1188	400	1000	1	I	2	7.2
AS KPX 0614	600	1400	591	1388	400	1200	1	I	3	8.2
AS KPX 0616	600	1600	591	1588	400	1400	1	I	3	9.3
AS KPX 0618	600	1800	591	1788	400	1600	1	I	3	10.4
AS KPX 0620	600	2000	591	1988	400	1800	1	I	3	11.5
AS KPX 0806	800	600	791	588	600	400	1	I	2	5.0
AS KPX 0808	800	800	791	788	600	600	1	I	2	6.3
AS KPX 0810	800	1000	791	988	600	800	1	I	2	7.6
AS KPX 0812	800	1200	791	1188	600	1000	1	I	2	9.0
AS KPX 0814	800	1400	791	1388	600	1200	1	I	3	10.3
AS KPX 0816	800	1600	791	1588	600	1400	1	I	3	11.6
AS KPX 0818	800	1800	791	1788	600	1600	1	I	3	12.9
AS KPX 0820	800	2000	791	1988	600	1800	1	I	3	14.2

Ölçüler

Camlı Kapı

Ölçüler

Camlı Kapı

Ürün Kodu	Genişlik	Yükseklik	En	Boy	Kullanılabilir Alan		Ağırlık
	A mm	B mm	X1 mm	Y1 mm	W1 mm	H1 mm
							kg

AS ST 0406	400	600	394	594	300	500	3.3
AS ST 0408	400	800	394	794	300	700	4.3
AS ST 0410	400	1000	394	994	300	900	5.3
AS ST 0412	400	1200	394	1194	300	1100	6.3
AS ST 0414	400	1400	394	1394	300	1300	7.4
AS ST 0416	400	1600	394	1594	300	1500	8.4
AS ST 0418	400	1800	394	1794	300	1700	9.4
AS ST 0420	400	2000	394	1994	300	1900	10.5
AS ST 0606	600	600	594	594	500	500	4.8
AS ST 0608	600	800	594	794	500	700	6.3
AS ST 0610	600	1000	594	994	500	900	7.8
AS ST 0612	600	1200	594	1194	500	1100	9.3
AS ST 0614	600	1400	594	1394	500	1300	10.8
AS ST 0616	600	1600	594	1594	500	1500	12.3
AS ST 0618	600	1800	594	1794	500	1700	13.8
AS ST 0620	600	2000	594	1994	500	1900	15.3
AS ST 0806	800	600	794	594	700	500	6.3
AS ST 0808	800	800	794	794	700	700	8.3
AS ST 0810	800	1000	794	994	700	900	10.3
AS ST 0812	800	1200	794	1194	700	1100	12.3
AS ST 0814	800	1400	794	1394	700	1300	14.2
AS ST 0816	800	1600	794	1594	700	1500	16.2
AS ST 0818	800	1800	794	1794	700	1700	18.2
AS ST 0820	800	2000	794	1994	700	1900	20.2
AS ST 1006	1000	600	994	594	900	500	7.8
AS ST 1008	1000	800	994	794	900	700	10.3
AS ST 1010	1000	1000	994	994	900	900	12.7
AS ST 1012	1000	1200	994	1194	900	1100	15.2
AS ST 1014	1000	1400	994	1394	900	1300	17.7
AS ST 1016	1000	1600	994	1594	900	1500	20.1
AS ST 1018	1000	1800	994	1794	900	1700	22.6
AS ST 1020	1000	2000	994	1994	900	1900	25.1
AS ST 1206	1200	600	1194	594	1100	500	9.3
AS ST 1208	1200	800	1194	794	1100	700	12.3
AS ST 1210	1200	1000	1194	994	1100	900	15.2
AS ST 1212	1200	1200	1194	1194	1100	1100	18.2
AS ST 1214	1200	1400	1194	1394	1100	1300	21.1
AS ST 1216	1200	1600	1194	1594	1100	1500	24.1
AS ST 1218	1200	1800	1194	1794	1100	1700	27.0
AS ST 1220	1200	2000	1194	1994	1100	1900	30.0
AS ST 1406	1400	600	1394	594	500+700	500	11.0
AS ST 1408	1400	800	1394	794	500+700	700	14.5
AS ST 1410	1400	1000	1394	994	500+700	900	18.0
AS ST 1412	1400	1200	1394	1194	500+700	1100	21.5
AS ST 1414	1400	1400	1394	1394	500+700	1300	24.9
AS ST 1416	1400	1600	1394	1594	500+700	1500	28.4
AS ST 1418	1400	1800	1394	1794	500+700	1700	31.9
AS ST 1420	1400	2000	1394	1994	500+700	1900	35.4

Ölçüler

Sırt

Ölçüler

Sırt

Ürün Kodu	Yükseklik	Derinlik	En	Boy	Kullanılabilir Alan			Ağırlık
	B mm	C mm	X1 mm	Y1 mm	D3 mm	H31 mm	H32 mm
								kg

AS YS 0640	600	400	270	580	194	340	–	2.1
AS YS 0650	600	500	370	580	294	340	–	2.8
AS YS 0660	600	600	470	580	394	340	–	3.5
AS YS 0680	600	800	670	580	594	340	–	4.9
AS YS 0840	800	400	270	780	194	540	–	2.8
AS YS 0850	800	500	370	780	294	540	–	3.7
AS YS 0860	800	600	470	780	394	540	–	4.6
AS YS 0880	800	800	670	780	594	540	–	6.5
AS YS 1040	1000	400	270	980	194	740	–	3.5
AS YS 1050	1000	500	370	980	294	740	–	4.6
AS YS 1060	1000	600	470	980	394	740	–	5.8
AS YS 1080	1000	800	670	980	594	740	–	8.0
AS YS 1240	1200	400	270	1180	194	940	–	4.2
AS YS 1250	1200	500	370	1180	294	940	–	5.5
AS YS 1260	1200	600	470	1180	394	940	–	6.9
AS YS 1280	1200	800	670	1180	594	940	–	9.6
AS YS 1440	1400	400	270	1380	194	520	540	4.9
AS YS 1450	1400	500	370	1380	294	520	540	6.4
AS YS 1460	1400	600	470	1380	394	520	540	8.0
AS YS 1480	1400	800	670	1380	594	520	540	11.2
AS YS 1640	1600	400	270	1580	194	620	640	5.5
AS YS 1650	1600	500	370	1580	294	620	640	7.3
AS YS 1660	1600	600	470	1580	394	620	640	9.2
AS YS 1680	1600	800	670	1580	594	620	640	12.8
AS YS 1840	1800	400	270	1780	194	720	740	6.2
AS YS 1850	1800	500	370	1780	294	720	740	8.3
AS YS 1860	1800	600	470	1780	394	720	740	10.3
AS YS 1880	1800	800	670	1780	594	720	740	14.4
AS YS 2040	2000	400	270	1980	194	840	820	6.9
AS YS 2050	2000	500	370	1980	294	840	820	9.2
AS YS 2060	2000	600	470	1980	394	840	820	11.4
AS YS 2080	2000	800	670	1980	594	840	820	15.9

Ölçüler

Yan Panel

Ölçüler

Yan Panel

Genişlik	Derinlik	Ürün Kodu	Üst Kapak	Kullanılabilir Alan
A	C			↔ mm	⤢ mm
mm	mm

400	400	AS xxx 04**40	AS TAV04040	280	194
400	500	AS xxx 04**50	AS TAV04050	280	294
400	600	AS xxx 04**60	AS TAV04060	280	394
400	800	AS xxx 04**80	AS TAV04080	280	594
600	400	AS xxx 06**40	AS TAV06040	480	194
600	500	AS xxx 06**50	AS TAV06050	480	294
600	600	AS xxx 06**60	AS TAV06060	480	394
600	800	AS xxx 06**80	AS TAV06080	480	594
800	400	AS xxx 08**40	AS TAV08040	680	194
800	500	AS xxx 08**50	AS TAV08050	680	294
800	600	AS xxx 08**60	AS TAV08060	680	394
800	800	AS xxx 08**80	AS TAV08080	680	594
1000	400	AS xxx 10**40	AS TAV10040	880	194
1000	500	AS xxx 10**50	AS TAV10050	880	294
1000	600	AS xxx 10**60	AS TAV10060	880	394
1000	800	AS xxx 10**80	AS TAV10080	880	594
1200	400	AS xxx 12**40	AS TAV12040	1080	194
1200	500	AS xxx 12**50	AS TAV12050	1080	294
1200	600	AS xxx 12**60	AS TAV12060	1080	394
1200	800	AS xxx 12**80	AS TAV12080	1080	594
1400	400	AS xxx 14**40	AS TAV14040	1280	194
1400	500	AS xxx 14**50	AS TAV14050	1280	294
1400	600	AS xxx 14**60	AS TAV14060	1280	394
1400	800	AS xxx 14**80	AS TAV14080	1280	594

Ölçüler

Üst Kapak

Ölçüler

Üst Kapak

Genişlik	Derinlik	Ürün Kodu	Alt Kapama	Ölçüler
A	C			↔ mm	⤢ mm
mm	mm

400	400	AS xxx 04**40	AS BS0440	394	340
400	500	AS xxx 04**50	AS BS0450	394	440
400	600	AS xxx 04**60	AS BS0460	394	540
400	800	AS xxx 04**80	AS BS0480	394	740
600	400	AS xxx 06**40	AS BS0640	594	340
600	500	AS xxx 06**50	AS BS0650	594	440
600	600	AS xxx 06**60	AS BS0660	594	540
600	800	AS xxx 06**80	AS BS0680	594	740
800	400	AS xxx 08**40	AS BS0840	794	340
800	500	AS xxx 08**50	AS BS0850	794	440
800	600	AS xxx 08**60	AS BS0860	794	540
800	800	AS xxx 08**80	AS BS0880	794	740
1000	400	AS xxx 10**40	AS BS1040	994	340
1000	500	AS xxx 10**50	AS BS1050	994	440
1000	600	AS xxx 10**60	AS BS1060	994	540
1000	800	AS xxx 10**80	AS BS1080	994	740
1200	400	AS xxx 12**40	AS BS1240	1194	340
1200	500	AS xxx 12**50	AS BS1250	1194	440
1200	600	AS xxx 12**60	AS BS1260	1194	540
1200	800	AS xxx 12**80	AS BS1280	1194	740
1400	400	AS xxx 14**40	AS BS1440	1394	340
1400	500	AS xxx 14**50	AS BS1450	1394	440
1400	600	AS xxx 14**60	AS BS1460	1394	540
1400	800	AS xxx 14**80	AS BS1480	1394	740
