AS Series
INTRODUCTION
MEASUREMENTS
IMAGES
DOWNLOAD
CAD Models
Characteristics
Material
Sheet Steel (EN 10130 DC01)
- Frame : 1.5 mm
- Panel : 1.5 mm
- Door : 2 mm
- Plinth : 2 mm
Galvanized Steel (EN 10346 DX51D+Z)
- Mounting plate : 2 mm
Surface Finishing
- RAL7035w powder coating
IP Rating
- IP55 (TS 3033, EN 60529)
Others
- Welded frame construction
- Foamed-in door/rear panel PU sealing gasket
- Swing-handle polyamide lock (3 points locking, 333 key)
- Door and panel options for rear side
- Multiple mounting plate possibility
- The modular construction can be join
- Removable side panels
- Plinth and cover options

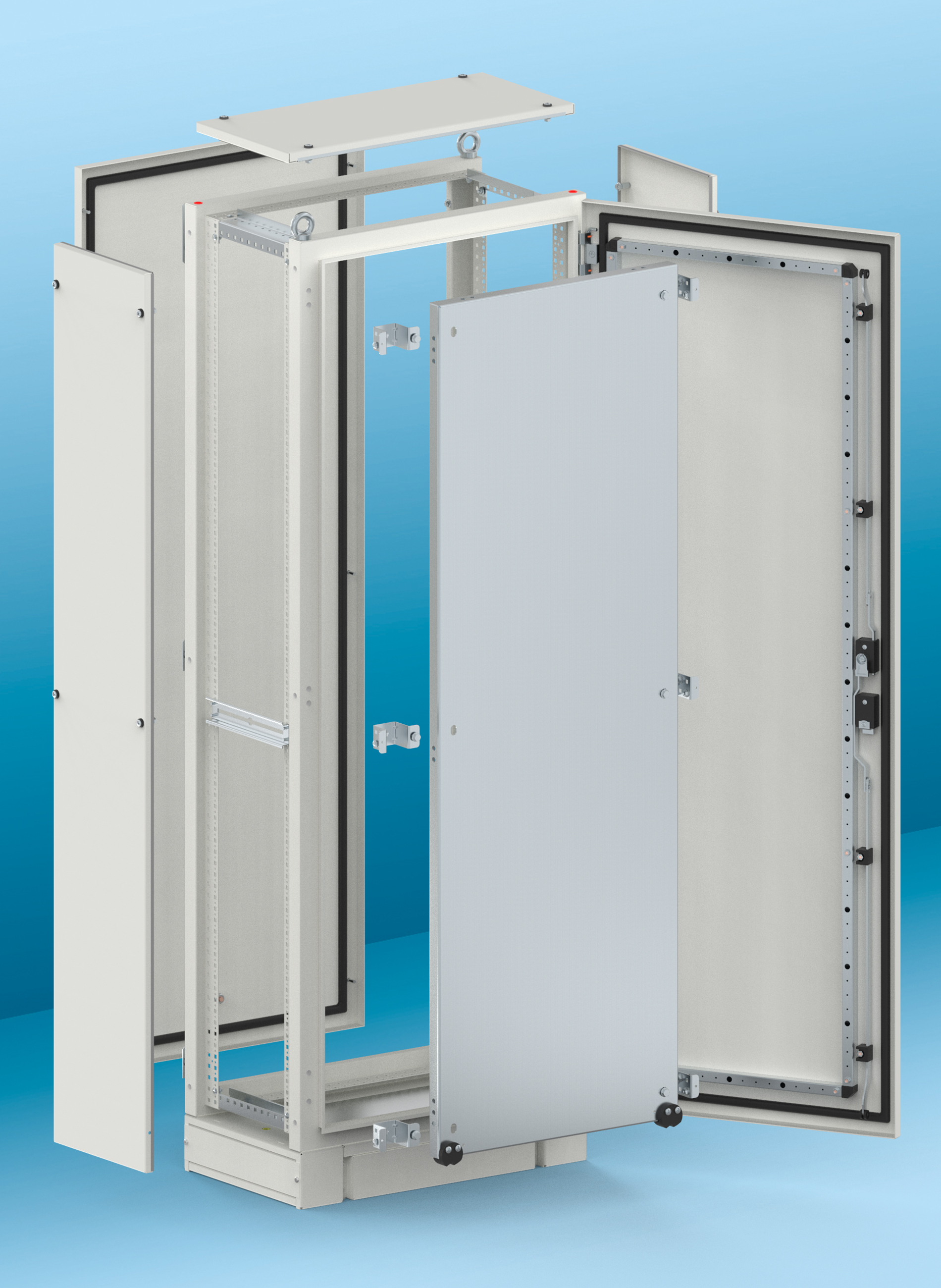

Supply Includes
- Front and rear frame
- Door ( Select ≈ K )
- Rear panel ( Select ≈ K )
- Mounting plate ( Option ≈ M )
- Plinth ( Option ≈ P )
- Top cover
- 4/6 pcs side rails
- Door inside mounting profile
On Request
- Special sizes
- Special colour
- Pre-punching
- Flat pack options
Complementary Accessories
- Side panel
- Eye bolt
- Rain canopy
- Cover plate and profiles
- Hinged cover plate
- Short mounting plate
- Partial mounting plate
- Infill mounting plate
- Carriage depth slide and support
- Partition profile
- L, U and Z profiles
- L and Z brackets
- Busbar & depth profile
- Ladder busbar profile
- Joining set
- Adjustable / pull out perforated shelf
- Plan pocket
- Plastic cover plate
- Earthing cable
