SSMS Serisi Panolar

Anasayfa

Pano Çözümlerimiz

Paslanmaz Panolar

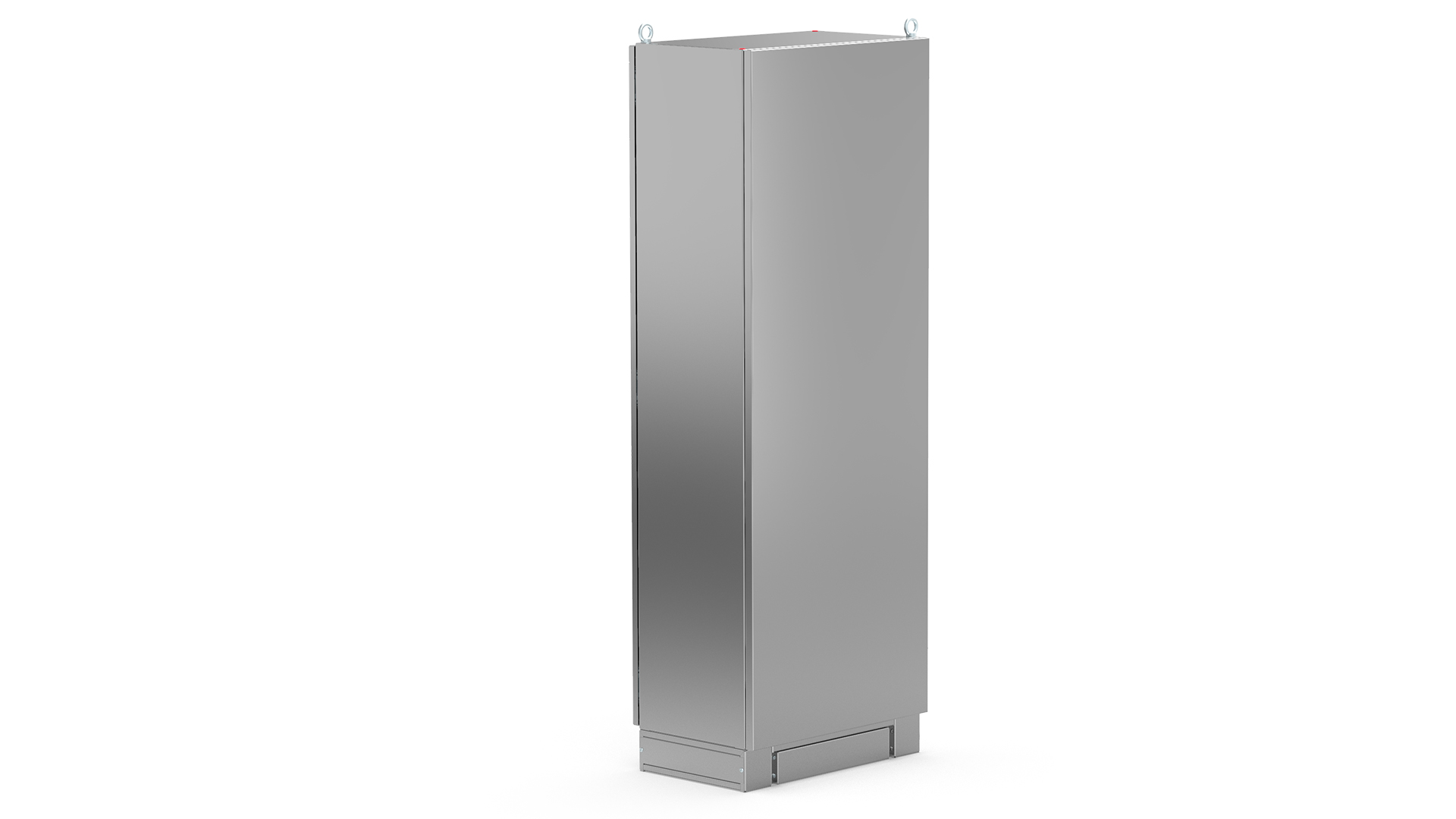

SSMS Serisi Panolar

Malzeme

Paslanmaz 304L (EN 10088 1.4307)
- Gövde : 1.5 mm
- Kapı : 1.5 mm
- Baza : 1.5 mm
Galvaniz kaplı çelik (EN 10346 DX51D+Z)
- Montaj plakası : 2 mm

Yüzey İşlem

Scotch-brite

Koruma Sınıfı

IP65 (TS 3033, EN 60529)

Diğer

Tamamen kaynaklı monoblok gövde
Kapı/sırt içinde PU dökme conta
Kollu polyamid gövdeli ispanyolet kilit (3 noktadan kilitlenen, 333 anahtarlı)
Çoklu montaj plakası imkanı

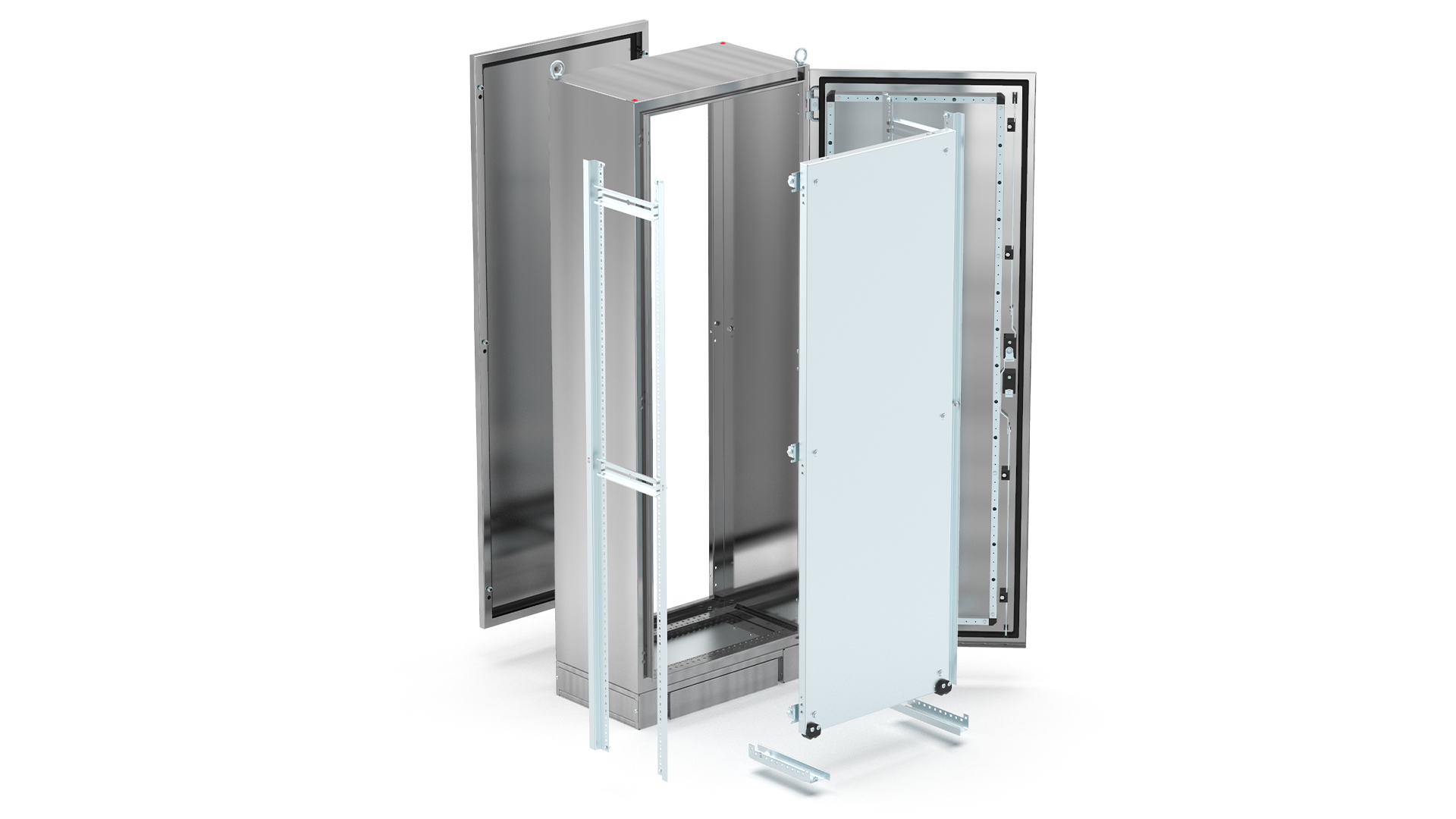

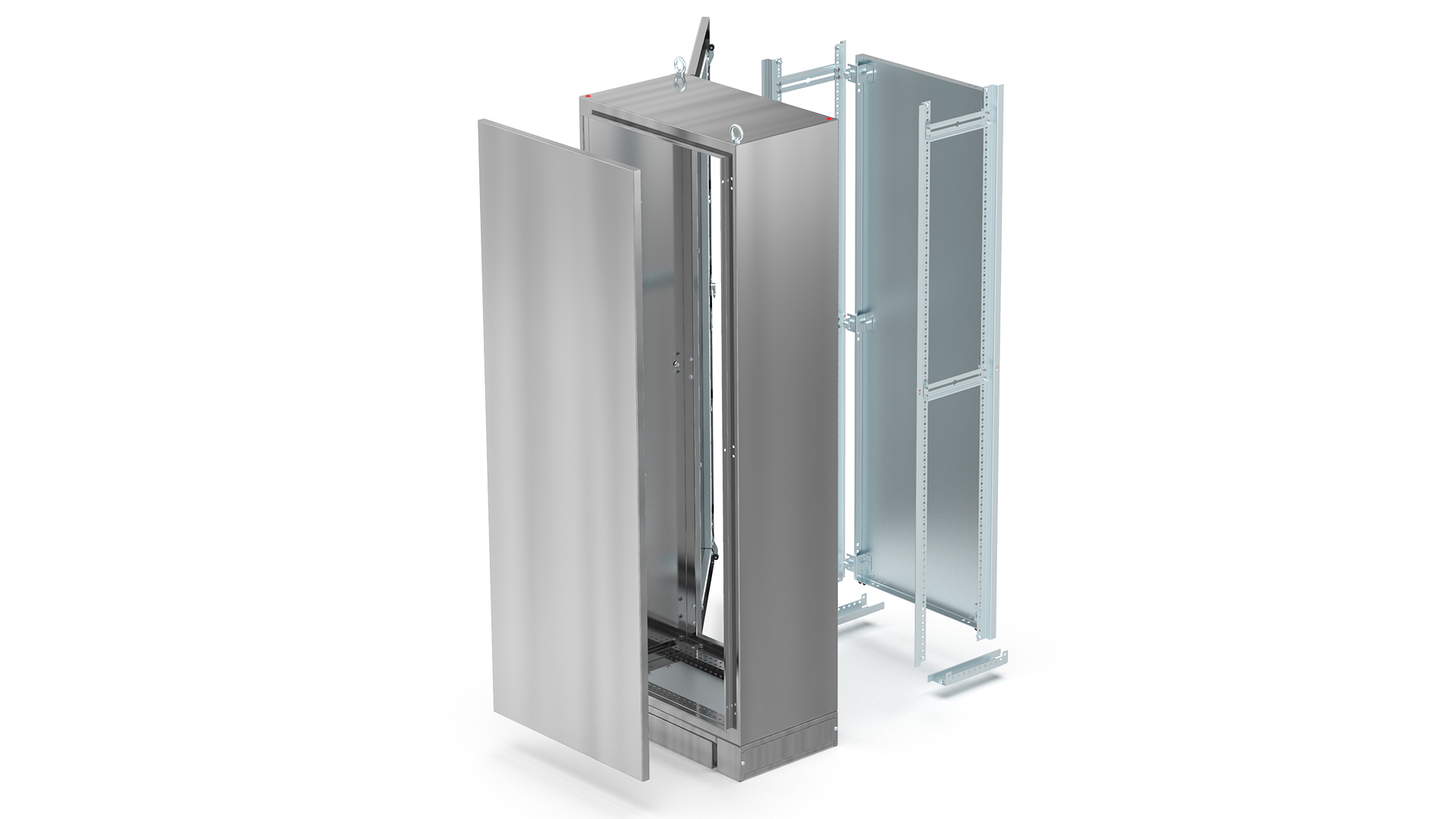

Birleştirilebilir modüler yapı
Baza ve kapak seçenekleri

3D CAD Models

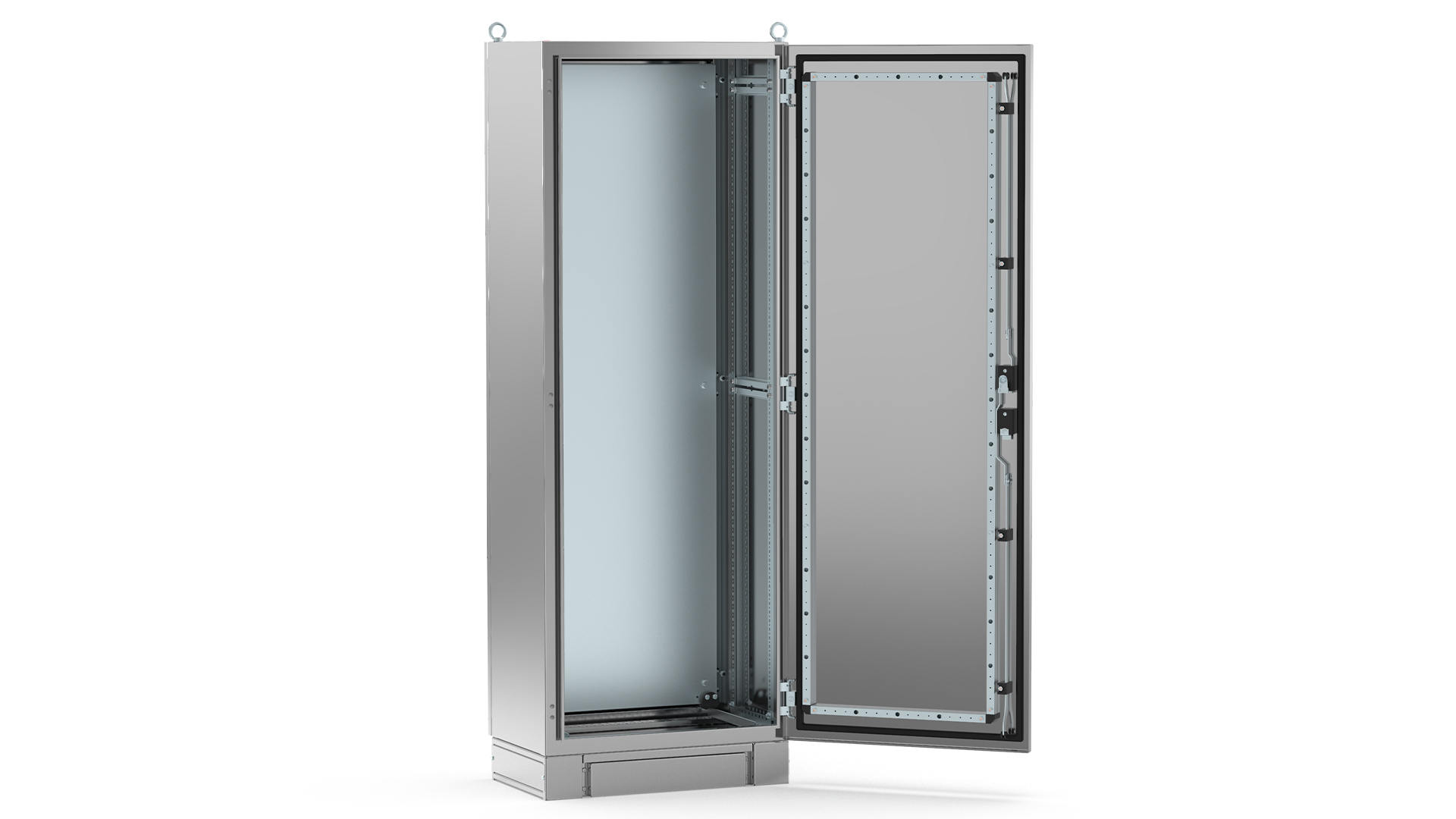

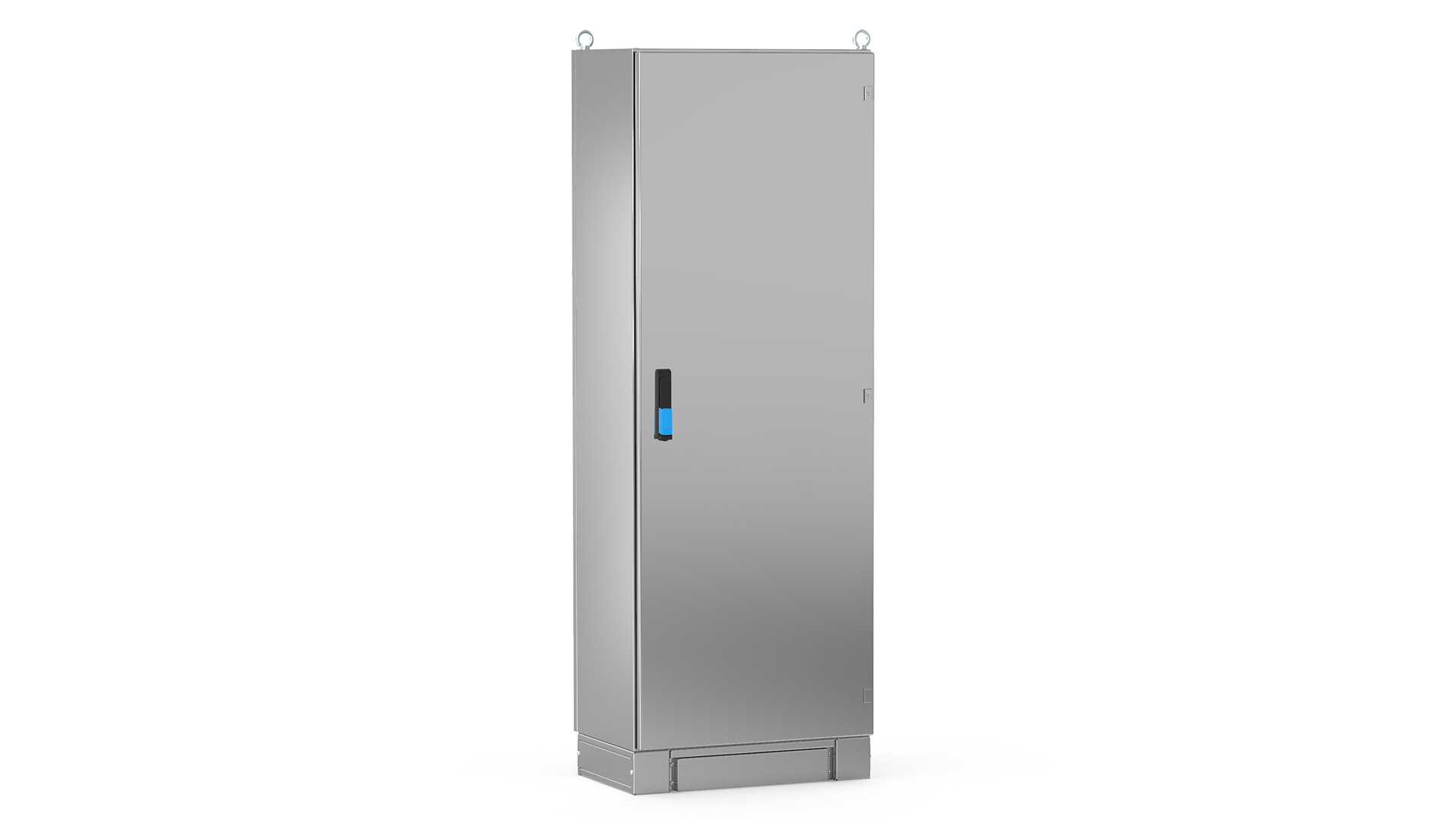

SSMS Serisi, paslanmaz çelik konstrüksiyonu, daha büyük elektrik, otomasyon ve dağıtım montajları için tek başına duran (bağımsız) monoblok pano formatıyla birleştirir. Modüler bir pano sistemine ihtiyaç duymadan geniş bir iç kapasite sunarken, esnek montaj düzenlemeleri panonun içerisindeki ekipmana göre yapılandırılmasına olanak tanır.

SSSMS Serisi Panolar / Paslanmaz Monoblok Panolar

Material

Stainless Steel 304L (EN 10088 1.4307)
- Body : 1.5 mm
- Door : 2 mm
- Plinth : 1.5 mm
Galvanized Steel (EN 10346 DX51D+Z)
- Mounting plate : 2 mm

Surface Finishing

Scotch-brite brushed

IP Rating

IP65 (TS 3033, EN 60529)

Others

All welded monobloc body
Foamed-in door PU sealing gasket
Swing-handle polyamide lock (3 points locking, 333 key)
Concealed hinge
Multiple mounting plate possibility
Plinth and cover options

İstek Üzerine

Özel boyut
Özel renk
Önişlem
316L kalite paslanmaz çelik

Donanım İçeriği

Gövde
Kapı ( Select ≈ K )
Sırt ( Select ≈ K )
Montaj plakası ( Select ≈ M )

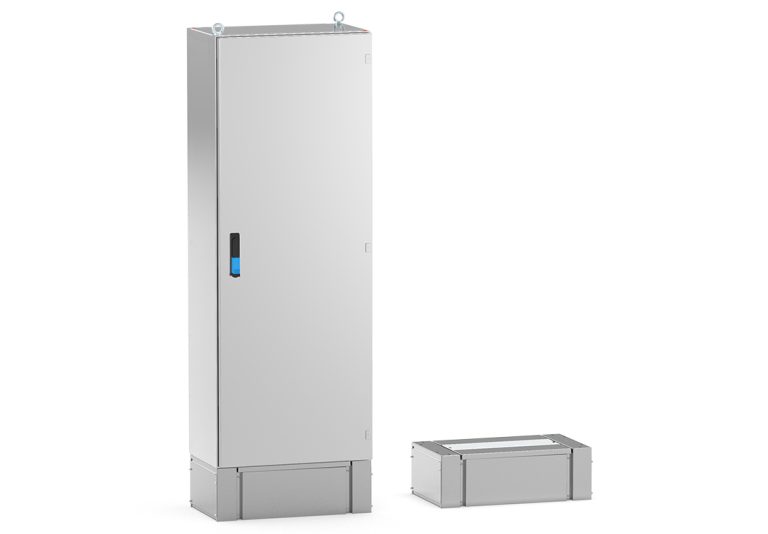

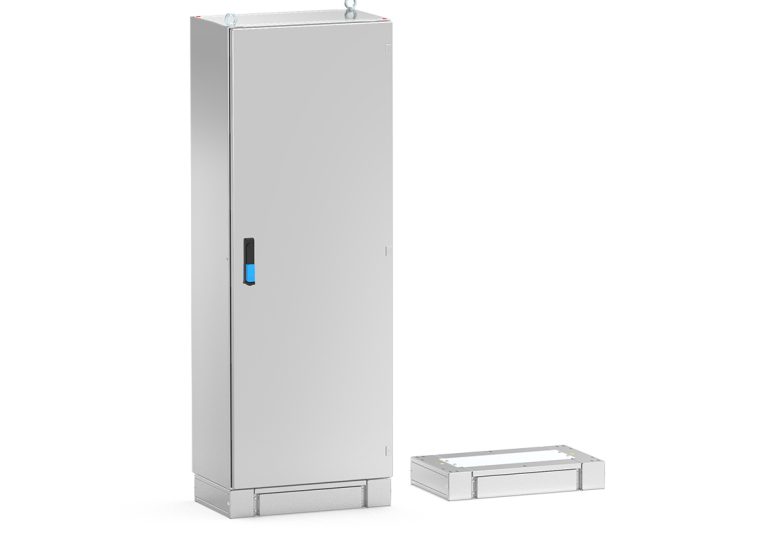

Baza ( Select ≈ P )

Tamamlayıcı Aksesuarlar

Harici şapka
Kapı içi montaj profili
Parçalı montaj plakası
Kaydırma kızağı ve takozu
L, U ve Z profiller
L ve Z bağlantı parçaları
Proje cebi
Sigorta yeri kapama parçası
Topraklama iletkeni
4/6 ad derinlik kızağı
4 ad Z profil

Benzer Ürünler

Genişlik	Yükseklik	Derinlik	Ürün Kodu	Kapı Sayısı	Menteşe Sayısı
A	B	C		Kapı Sayısı	Menteşe Sayısı
mm	mm	mm		ad	ad

400	600	400	SSMS xxx 040640	1	2
400	600	500	SSMS xxx 040650	1	2
400	600	600	SSMS xxx 040660	1	2
400	800	400	SSMS xxx 040840	1	2
400	800	500	SSMS xxx 040850	1	2
400	800	600	SSMS xxx 040860	1	2
400	1000	400	SSMS xxx 041040	1	2
400	1000	500	SSMS xxx 041050	1	2
400	1000	600	SSMS xxx 041060	1	2
400	1200	400	SSMS xxx 041240	1	2
400	1200	500	SSMS xxx 041250	1	2
400	1200	600	SSMS xxx 041260	1	2
400	1400	400	SSMS xxx 041440	1	3
400	1400	500	SSMS xxx 041450	1	3
400	1400	600	SSMS xxx 041460	1	3
400	1600	400	SSMS xxx 041640	1	3
400	1600	500	SSMS xxx 041650	1	3
400	1600	600	SSMS xxx 041660	1	3
400	1800	400	SSMS xxx 041840	1	3
400	1800	500	SSMS xxx 041850	1	3
400	1800	600	SSMS xxx 041860	1	3
400	1800	800	SSMS xxx 041880	1	3
400	2000	400	SSMS xxx 042040	1	3
400	2000	500	SSMS xxx 042050	1	3
400	2000	600	SSMS xxx 042060	1	3
400	2000	800	SSMS xxx 042080	1	3
600	600	400	SSMS xxx 060640	1	2
600	600	500	SSMS xxx 060650	1	2
600	600	600	SSMS xxx 060660	1	2
600	800	400	SSMS xxx 060840	1	2
600	800	500	SSMS xxx 060850	1	2
600	800	600	SSMS xxx 060860	1	2
600	1000	400	SSMS xxx 061040	1	2
600	1000	500	SSMS xxx 061050	1	2
600	1000	600	SSMS xxx 061060	1	2
600	1200	400	SSMS xxx 061240	1	2
600	1200	500	SSMS xxx 061250	1	2
600	1200	600	SSMS xxx 061260	1	2
600	1400	400	SSMS xxx 061440	1	3
600	1400	500	SSMS xxx 061450	1	3
600	1400	600	SSMS xxx 061460	1	3
600	1600	400	SSMS xxx 061640	1	3
600	1600	500	SSMS xxx 061650	1	3
600	1600	600	SSMS xxx 061660	1	3
600	1800	400	SSMS xxx 061840	1	3
600	1800	500	SSMS xxx 061850	1	3
600	1800	600	SSMS xxx 061860	1	3
600	1800	800	SSMS xxx 061880	1	3
600	2000	400	SSMS xxx 062040	1	3
600	2000	500	SSMS xxx 062050	1	3
600	2000	600	SSMS xxx 062060	1	3
600	2000	800	SSMS xxx 062080	1	3
800	600	400	SSMS xxx 080640	1	2
800	600	500	SSMS xxx 080650	1	2
800	600	600	SSMS xxx 080660	1	2
800	800	400	SSMS xxx 080840	1	2
800	800	500	SSMS xxx 080850	1	2
800	800	600	SSMS xxx 080860	1	2
800	1000	400	SSMS xxx 081040	1	2
800	1000	500	SSMS xxx 081050	1	2
800	1000	600	SSMS xxx 081060	1	2
800	1200	400	SSMS xxx 081240	1	2
800	1200	500	SSMS xxx 081250	1	2
800	1200	600	SSMS xxx 081260	1	2
800	1400	400	SSMS xxx 081440	1	3
800	1400	500	SSMS xxx 081450	1	3
800	1400	600	SSMS xxx 081460	1	3
800	1600	400	SSMS xxx 081640	1	3
800	1600	500	SSMS xxx 081650	1	3
800	1600	600	SSMS xxx 081660	1	3
800	1800	400	SSMS xxx 081840	1	3
800	1800	500	SSMS xxx 081850	1	3
800	1800	600	SSMS xxx 081860	1	3
800	1800	800	SSMS xxx 081880	1	3
800	2000	400	SSMS xxx 082040	1	3
800	2000	500	SSMS xxx 082050	1	3
800	2000	600	SSMS xxx 082060	1	3
800	2000	800	SSMS xxx 082080	1	3
1000	1800	400	SSMS xxx 101840	2	3+3
1000	1800	500	SSMS xxx 101850	2	3+3
1000	1800	600	SSMS xxx 101860	2	3+3
1000	1800	800	SSMS xxx 101880	2	3+3
1000	2000	400	SSMS xxx 102040	2	3+3
1000	2000	500	SSMS xxx 102050	2	3+3
1000	2000	600	SSMS xxx 102060	2	3+3
1000	2000	800	SSMS xxx 102080	2	3+3
1200	1800	400	SSMS xxx 121840	2	3+3
1200	1800	500	SSMS xxx 121850	2	3+3
1200	1800	600	SSMS xxx 121860	2	3+3
1200	1800	800	SSMS xxx 121880	2	3+3
1200	2000	400	SSMS xxx 122040	2	3+3
1200	2000	500	SSMS xxx 122050	2	3+3
1200	2000	600	SSMS xxx 122060	2	3+3
1200	2000	800	SSMS xxx 122080	2	3+3
1400	1800	400	SSMS xxx 141840	2	3+3
1400	1800	500	SSMS xxx 141850	2	3+3
1400	1800	600	SSMS xxx 141860	2	3+3
1400	1800	800	SSMS xxx 141880	2	3+3
1400	2000	400	SSMS xxx 142040	2	3+3
1400	2000	500	SSMS xxx 142050	2	3+3
1400	2000	600	SSMS xxx 142060	2	3+3
1400	2000	800	SSMS xxx 142080	2	3+3

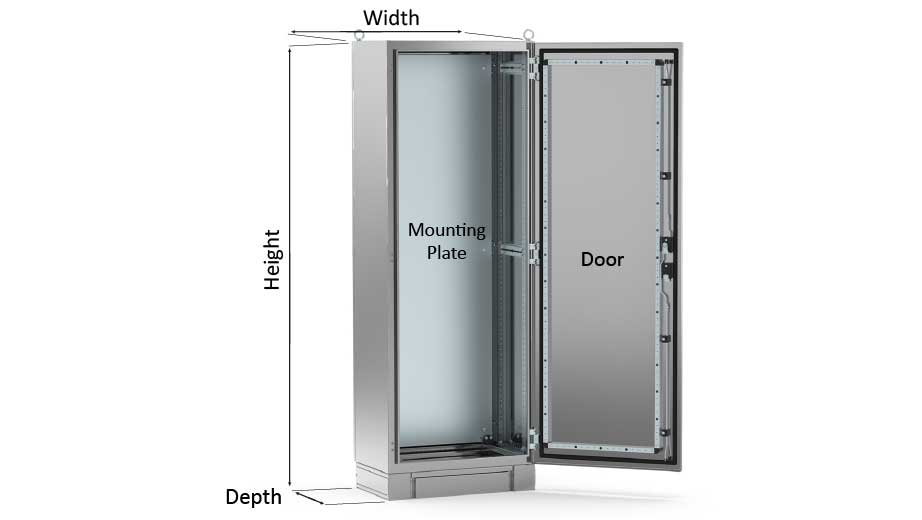

Ölçüler

Montaj Plakası

Kapı Kullanılabilir Alan

Dimensions

Ölçüler

Montaj Plakası

Kapı Kullanılabilir Alan

Ürün Kodu

Genişlik

Yükseklik

Boy

Kullanılabilir Alan

Kapı Sayısı

Kilit Tipi

Menteşe Sayısı

Ağırlık

A
mm

B
mm

X1
mm

Y1
mm

W1
mm

W11*
mm

W12*
mm

H1
mm

SSAS KP 0406	400	600	391	588	220	–	–	420	1	I	2	3.2
SSAS KP 0408	400	800	391	788	220	–	–	620	1	I	2	4.2
SSAS KP 0410	400	1000	391	988	220	–	–	820	1	I	2	5.2
SSAS KP 0412	400	1200	391	1188	220	–	–	1020	1	I	2	6.3
SSAS KP 0414	400	1400	391	1388	220	–	–	1220	1	I	3	7.3
SSAS KP 0416	400	1600	391	1588	220	–	–	1420	1	I	3	8.3
SSAS KP 0418	400	1800	391	1788	220	–	–	1620	1	I	3	9.3
SSAS KP 0420	400	2000	391	1988	220	–	–	1820	1	I	3	10.4
SSAS KP 0606	600	600	591	588	420	–	–	420	1	I	2	4.7
SSAS KP 0608	600	800	591	788	420	–	–	620	1	I	2	6.2
SSAS KP 0610	600	1000	591	988	420	–	–	820	1	I	2	7.7
SSAS KP 0612	600	1200	591	1188	420	–	–	1020	1	I	2	9.2
SSAS KP 0614	600	1400	591	1388	420	–	–	1220	1	I	3	10.7
SSAS KP 0616	600	1600	591	1588	420	–	–	1420	1	I	3	12.2
SSAS KP 0618	600	1800	591	1788	420	–	–	1620	1	I	3	13.7
SSAS KP 0620	600	2000	591	1988	420	–	–	1820	1	I	3	15.2
SSAS KP 0806	800	600	791	588	620	–	–	420	1	I	2	6.2
SSAS KP 0808	800	800	791	788	620	–	–	620	1	I	2	8.2
SSAS KP 0810	800	1000	791	988	620	–	–	820	1	I	2	10.2
SSAS KP 0812	800	1200	791	1188	620	–	–	1020	1	I	2	12.2
SSAS KP 0814	800	1400	791	1388	620	–	–	1220	1	I	3	14.1
SSAS KP 0816	800	1600	791	1588	620	–	–	1420	1	I	3	16.1
SSAS KP 0818	800	1800	791	1788	620	–	–	1620	1	I	3	18.1
SSAS KP 0820	800	2000	791	1988	620	–	–	1820	1	I	3	20.1
SSAS KP 1018	1000	1800	991	1788	–	320	320	1620	2	I	3+3	23.8
SSAS KP 1020	1000	2000	991	1988	–	320	320	1820	2	I	3+3	26.4
SSAS KP 1218	1200	1800	1191	1788	–	420	420	1620	2	I	3+3	28.1
SSAS KP 1220	1200	2000	1191	1988	–	420	420	1820	2	I	3+3	31.2
SSAS KP 1418	1400	1800	1391	1788	–	520	520	1620	2	I	3+3	32.5
SSAS KP 1420	1400	2000	1391	1988	–	520	520	1820	2	I	3+3	36.2

Ölçüler

Düz Kapı

Ölçüler

Düz Kapı

Ürün Kodu	Genişlik	Yükseklik	En	Boy	Kullanılabilir Alan		Ağırlık
	A mm	B mm	X1 mm	Y1 mm	W1 mm	H1 mm
							kg

SSMS ST 0406	400	600	399	599	310	510	4.2
SSMS ST 0408	400	800	399	799	310	710	5.4
SSMS ST 0410	400	1000	399	999	310	910	6.6
SSMS ST 0412	400	1200	399	1199	310	1110	7.8
SSMS ST 0414	400	1400	399	1399	310	1310	9.0
SSMS ST 0416	400	1600	399	1599	310	1510	10.2
SSMS ST 0418	400	1800	399	1799	310	1710	11.4
SSMS ST 0420	400	2000	399	1999	310	1910	12.6
SSMS ST 0606	600	600	599	599	510	510	5.9
SSMS ST 0608	600	800	599	799	510	710	7.6
SSMS ST 0610	600	1000	599	999	510	910	9.2
SSMS ST 0612	600	1200	599	1199	510	1110	10.9
SSMS ST 0614	600	1400	599	1399	510	1310	12.6
SSMS ST 0616	600	1600	599	1599	510	1510	14.2
SSMS ST 0618	600	1800	599	1799	510	1710	15.9
SSMS ST 0620	600	2000	599	1999	510	1910	17.6
SSMS ST 0806	800	600	799	599	710	510	7.6
SSMS ST 0808	800	800	799	799	710	810	9.7
SSMS ST 0810	800	1000	799	999	710	910	11.8
SSMS ST 0812	800	1200	799	1199	710	1110	14.0
SSMS ST 0814	800	1400	799	1399	710	1410	16.1
SSMS ST 0816	800	1600	799	1599	710	1510	18.3
SSMS ST 0818	800	1800	799	1799	710	1710	20.4
SSMS ST 0820	800	2000	799	1999	710	1910	22.5
SSMS ST 1018	1000	1800	999	1799	910	1710	24.9
SSMS ST 1020	1000	2000	999	1999	910	1910	27.5
SSMS ST 1218	1200	1800	1199	1799	1110	1710	29.4
SSMS ST 1220	1200	2000	1199	1999	1110	1910	32.5
SSMS ST 1418	1400	1800	1399	1799	1310	1710	33.9
SSMS ST 1420	1400	2000	1399	1999	1310	1910	37.4

Ölçüler

Sırt

Ölçüler

Sırt

Ürün Kodu	Genişlik	Yükseklik	En	Boy	Bağlantı Ölçüleri				Bağlantı	Ağırlık
	A mm	B mm	X1 mm	Y1 mm	X2	Y2	X3	Y3	n
					mm	mm	mm	mm	ad	kg

AS TS 0406	400	600	302	502	241	400	260	–	4	3.3
AS TS 0408	400	800	302	702	241	600	260	–	4	4.5
AS TS 0410	400	1000	302	902	241	800	260	–	4	5.7
AS TS 0412	400	1200	302	1102	241	1000	260	–	4	6.9
AS TS 0414	400	1400	302	1302	241	1200	260	600	6	8.1
AS TS 0416	400	1600*	302	1502	241	1400	260	700	6	9.3
AS TS 0418	400	1800	302	1702	241	1600	260	800	6	10.5
AS TS 0420	400	2000	302	1902	241	1800	260	900	6	11.6
AS TS 0606	600	600	502	502	441	400	460	–	4	5.1
AS TS 0608	600	800	502	708	441	600	460	–	4	7.0
AS TS 0610	600	1000	502	902	441	800	460	–	4	8.7
AS TS 0612	600	1200	502	1102	441	1000	460	–	4	10.6
AS TS 0614	600	1400	502	1302	441	1200	460	600	6	12.4
AS TS 0616	600	1600*	502	1502	441	1400	460	700	6	14.2
AS TS 0618	600	1800	502	1702	441	1600	460	800	6	16.1
AS TS 0620	600	2000	502	1902	441	1800	460	900	6	17.9
AS TS 0806	800	600	702	502	641	400	660	–	4	6.9
AS TS 0808	800	800	702	702	641	600	660	–	4	9.3
AS TS 0810	800	1000	702	902	641	800	660	–	4	11.8
AS TS 0812	800	1200	702	1102	641	1000	660	–	4	14.3
AS TS 0814	800	1400	702	1302	641	1200	660	600	6	16.7
AS TS 0816	800	1600*	702	1402	641	1400	660	700	6	18.0
AS TS 0818	800	1800	702	1702	641	1600	660	800	6	21.7
AS TS 0820	800	2000	702	1902	641	1800	660	900	6	24.2
AS TS 1018	1000	1800	902	1702	841	1600	860	800	6	27.3
AS TS 1020	1000	2000	902	1902	841	1800	860	900	6	30.4
AS TS 1218	1200	1800	1102	1702	1041	1600	1060	800	6	32.9
AS TS 1220	1200	2000	1102	1902	1041	1800	1060	900	6	36.7
AS TS 1418	1400	1800	1302	1702	1241	1600	1260	800	6	38.5
AS TS 1420	1400	2000	1302	1902	1241	1800	1260	900	6	42.9

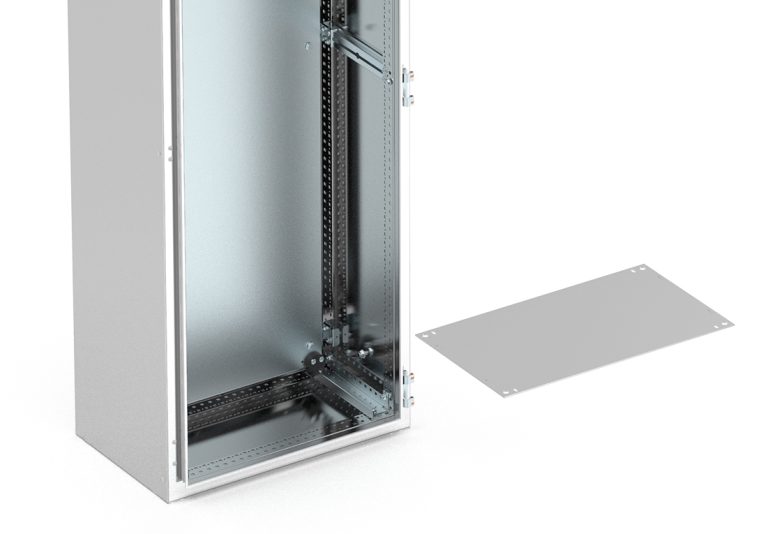

Ölçüler

Mounting Plate

Ölçüler

Mounting Plate

Ürün Kodu	Genişlik	Derinlik	En	Boy	Ağırlık
	A mm	C mm	X mm	Y mm
					kg

SSAS BS 0440	400	400	395	340	2.1
SSAS BS 0450	400	500	395	440	2.7
SSAS BS 0460	400	600	395	540	3.3
SSAS BS 0480	400	800	395	740	4.6
SSAS BS 0640	600	400	595	340	3.2
SSAS BS 0650	600	500	595	440	4.1
SSAS BS 0660	600	600	595	540	5.0
SSAS BS 0680	600	800	595	740	6.9
SSAS BS 0840	800	400	795	340	4.2
SSAS BS 0850	800	500	795	440	5.5
SSAS BS 0860	800	600	795	540	6.7
SSAS BS 0880	800	800	795	740	9.2
SSAS BS 1040	1000	400	995	340	5.3
SSAS BS 1050	1000	500	995	440	6.9
SSAS BS 1060	1000	600	995	540	8.4
SSAS BS 1080	1000	800	995	740	11.6
SSAS BS 1240	1200	400	1195	340	6.4
SSAS BS 1250	1200	500	1195	440	8.3
SSAS BS 1260	1200	600	1195	540	10.1
SSAS BS 1280	1200	800	1195	740	13.9
SSAS BS 1440	1400	400	1395	340	7.4
SSAS BS 1450	1400	500	1395	440	9.6
SSAS BS 1460	1400	600	1395	540	11.8
SSAS BS 1480	1400	800	1395	740	16.2
