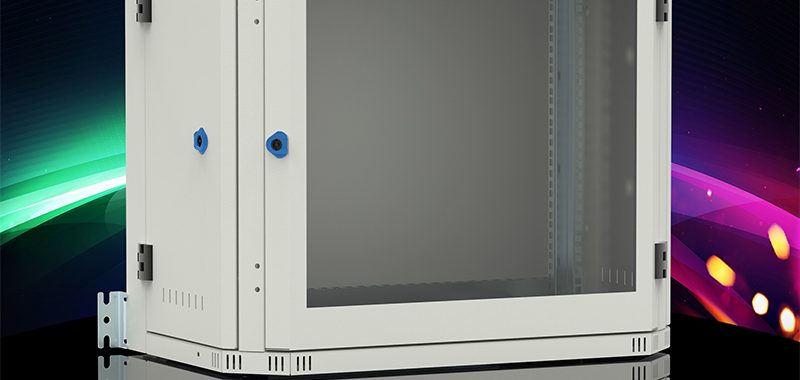

PR Series

Electronic System Cabinets

PR

INTRODUCTION

MEASUREMENTS

IMAGES

DOWNLOAD

Characteristics
Material

Sheet Steel (EN 10130 DC01)

  • Frame : 1.5 mm
  • Glazed door: 1.5 mm

Galvanized Steel (EN 10346 DX51D+Z)

  • 19″ profile: 2 mm
Surface Finishing
  • RAL7035w powder coating
Others
  • Multi purpose prime frame
  • Glazed front door
  • A removable side panel
  • A hinged side panel
  • Depth adjustable 19″ upright profiles
  • Vented dust protection hood
  • Top and bottom gland plates
Supply Includes
  • Front and rear frame
  • Glazed door
  • Side panels
  • 19″ profiles / swing frame
  • Vented dust protection hood
  • 4/6 pcs wall brackets
On Request
  • Special sizes
  • Special colour
  • Pre-punching
  • Special Racks
  • Special mounting plate
Complementary Accessories
  • Top protection plate
  • Top and bottom partial cover plates
  • 19″ equipment shelf
  • 19″ pull out perforated shelf
  • Patch panel and 1U fan unit
  • Power distribution unit
  • Cable clamp profile
  • Earthing cable
